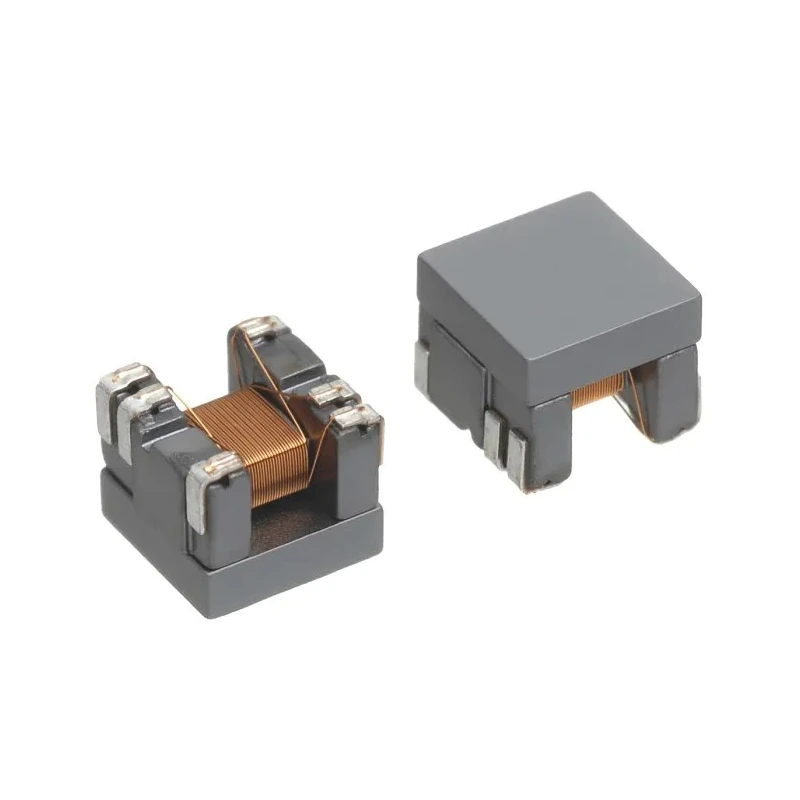

TDK Surface Mount Pulse Transformer , 6 Pins, 0.1-100 MHz Frequency Range, 3.2x3.2x2.9 mm Dimensions ALT3232M-151-T001

TDK ALT3232M-151-T001 is a surface mount pulse transformer engineered for high-performance LAN communication interfaces. It features a robust build with an operating frequency range from 0.1 MHz to 100 MHz and 6 pins for efficient circuit integration. The product measures 3.2 mm in length and width, with a depth of 2.9 mm, making it ideal for compact PCB designs.

Designed using advanced auto winding technology, this pulse transformer ensures excellent insertion loss performance of 2.5 dB, thereby maintaining signal integrity across transmissions. Its temperature tolerance ranges from -40°C to 85°C, enabling use in diverse industrial and commercial environments.

The ALT3232M-151-T001 complies with RoHS directives, ensuring it meets environmental standards while delivering reliable performance. It is compatible with various LAN standards including 10BASE-T, 100BASE-TX, and 1000BASE-T, making it suitable for network and communication equipment manufacturing and repairs.

Operates in a wide frequency range from 0.1 MHz to 100 MHz. Compact surface mount design for easy PCB assembly. Insertion loss of 2.5 dB ensures efficient signal transfer. Wide operating temperature suitable for industrial applications.

RoHS compliant for environmental safety. High-quality winding technology for durability. Supports multiple LAN standards for flexible networking.

This pulse transformer is widely utilized in electronic component manufacturing, power supplies, and data communication industries. Its small footprint and performance characteristics make it a reliable choice for improving signal quality in digital networks. Explore similar high-quality Pulse Transformers and related power supply components at EnvMart to meet your electronic assembly requirements.
