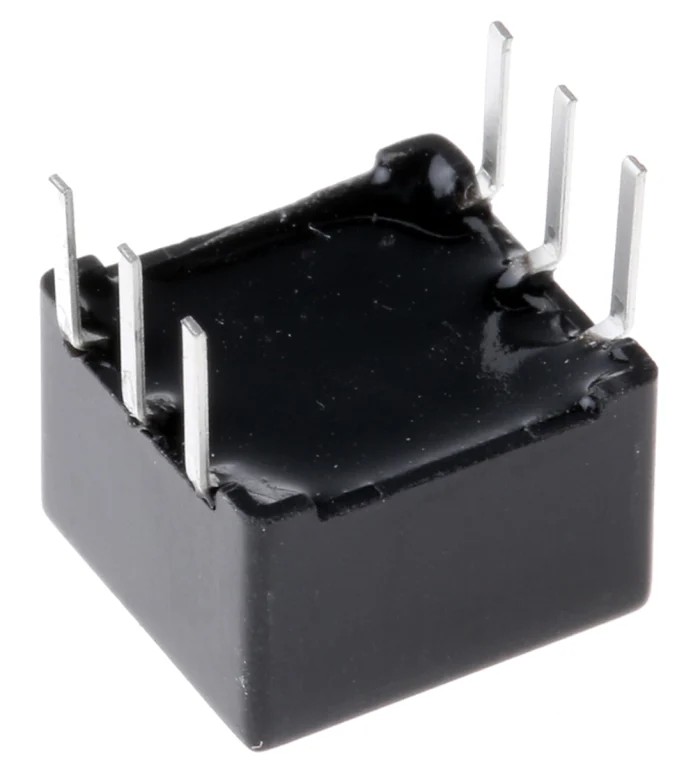

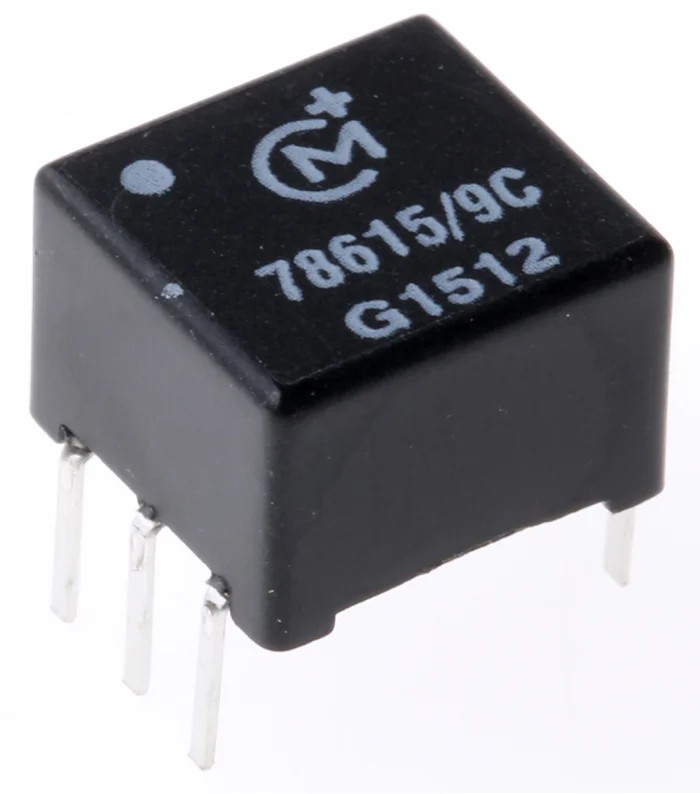

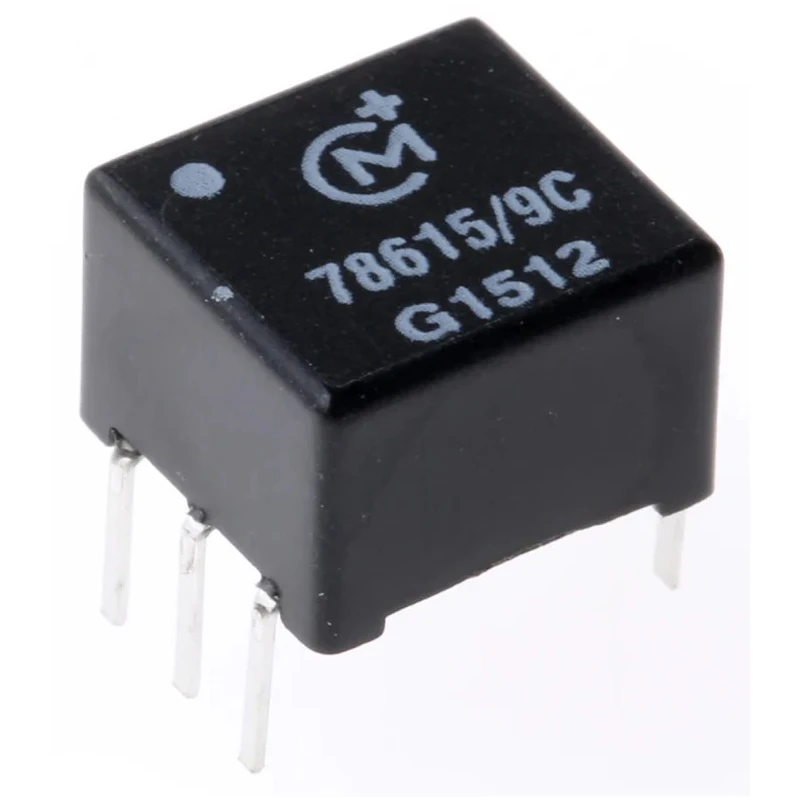

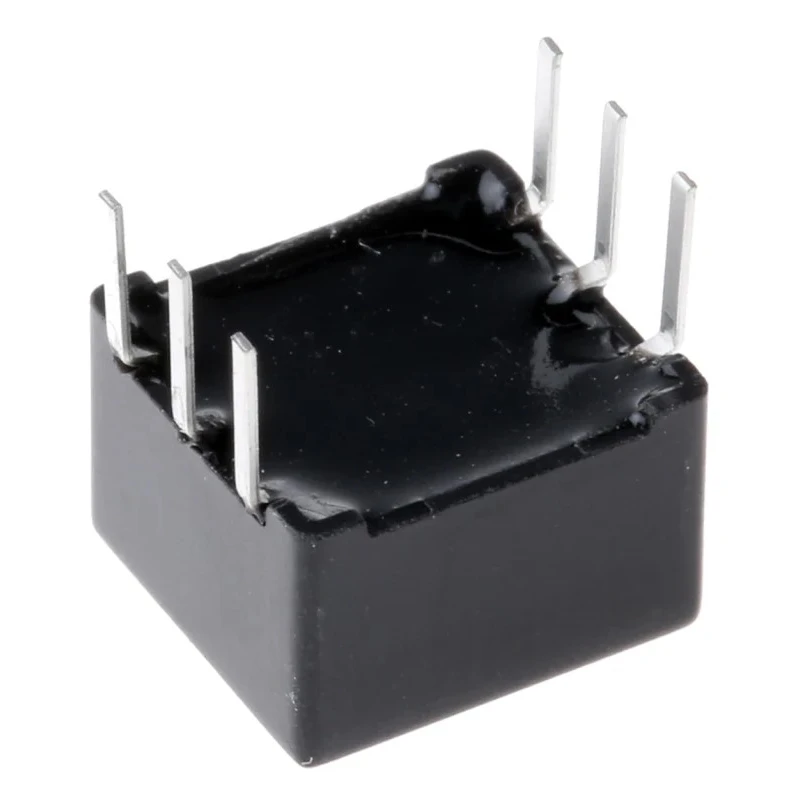

Murata Power Solutions Through Hole Pulse Transformer 1CT:1CT Turns Ratio, 10000μH Primary Inductance, 1.33Ω 78615/9C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Length | 9.52mm |
| Model | 78615/9C |
| Depth | 9.79mm |
| Gross Weight | 1.1g |
| Width | 9mm |
| Mount Type | Through Hole |
| Series | 786 |
| Termination Type | Pin |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | 0°C |
| Standards/Approvals | RoHS |
| Number of Pins | 6 |
| Isolation Voltage | 1kV |
| Primary Inductance | 10000μH |
| Turns Ratio | 1CT:1CT |
| Primary DC Resistance | 1.33Ω |
| Leakage Inductance | 44.5μH |
| Turns Ratio1CT | 1CT |
| 1CT | 1CT |
Key Features
- Primary inductance is rated at 10000μH ensuring stable performance.
- Features a primary DC resistance of 1.33Ω for efficient power transfer.
- Compact through-hole mount design with six pins for easy PCB integration.
- Leakage inductance measures 44.5μH, reducing interference in circuits.
- Operational temperature range from 0°C to 70°C ensures reliable use in standard environments.
- Meets RoHS standards assuring compliance with environmental regulations.
- Isolation voltage is rated at 1kV for safety and signal integrity.
- Lightweight at 1.1 grams, making it ideal for portable and small devices.
Product Description
Murata Power Solutions 78615/9C Through Hole Pulse Transformer is engineered for precise pulse shaping and electrical isolation in electronic circuits. Featuring a 1CT:1CT turns ratio and a high primary inductance of 10000μH, it excels in coupling applications, thyristor and triac firing circuits, and small-sized switch mode power supplies.
This pulse transformer is designed for through-hole mounting with six pins, easing installation on printed circuit boards. It offers a primary DC resistance of 1.33Ω and a leakage inductance of 44.5μH, delivering efficient performance with minimized signal loss.
The product operates reliably within a temperature range of 0°C to 70°C, making it suitable for various industrial and commercial electronic environments. Its compact dimensions of 9.52mm by 9.79mm by 9mm and lightweight construction at just 1.1 grams enable usage in space-constrained designs.
Compliance with RoHS directives underscores its environmental safety and quality. The isolation voltage rating of 1kV provides robust electrical separation, enhancing circuit safety and reliability.
The 786 series pulse transformer features flexible winding configurations, allowing customization of turns ratios by series connection of windings. It can also be used as a common mode choke for filtering applications, expanding its utility in electronic circuits.
The 1CT:1CT turns ratio supports bidirectional pulse transfer. High primary inductance aids in effective energy storage and transfer. Low primary DC resistance optimizes power efficiency. Six-pin through-hole design ensures secure PCB installation.
Leakage inductance control reduces electromagnetic interference. Wide operating temperature range suits diverse applications. Compact size fits tight PCB layouts and miniaturized devices. RoHS compliance guarantees adherence to environmental standards.
Rated for 1kV isolation voltage enhancing electrical safety. Lightweight and durable for portable electronic devices.
This pulse transformer is ideal for industrial, laboratory, and commercial electronics, including power supply design, signal coupling, and filtering systems. It is a reliable choice for engineers seeking high-quality, versatile transformers with known performance parameters.
Explore the full range of Pulse Transformers and related electronic components at EnvMart for various industrial and commercial applications.
