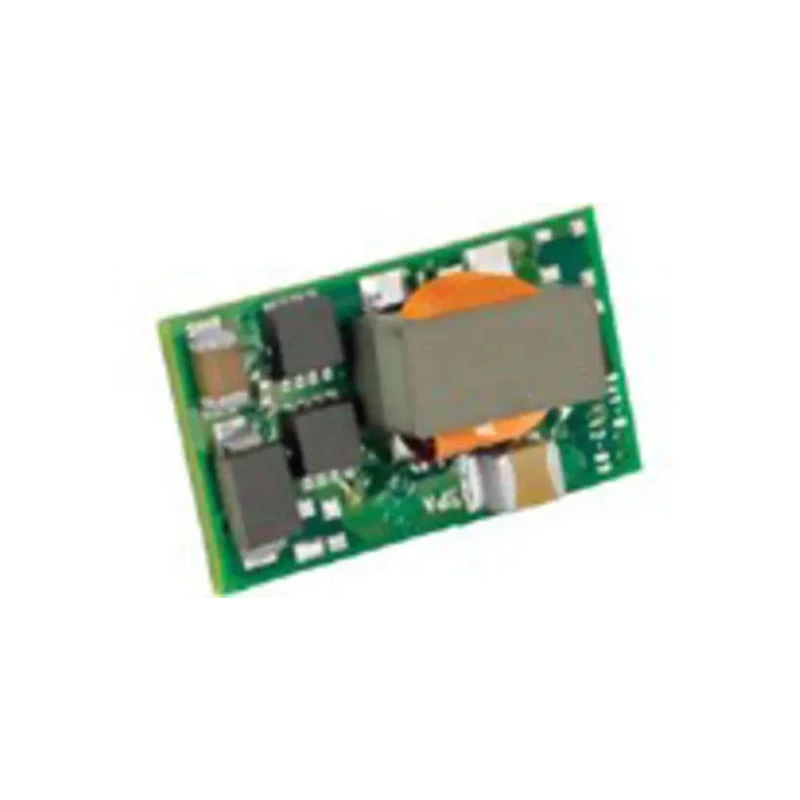

Murata Power Solutions DC/DC Converter Surface Mount, 19-24V DC Input, 15V DC Output, 3A, 36W, 95% OKI-T/36W-W40N-C
Specifications
| Country of Origin | China |
|---|---|
| Brand | Murata Power Solutions |
| Efficiency | 95% |
| Length | 20.8mm |
| Model | OKI-T/36W-W40N-C |
| Depth | 8.5mm |
| Gross Weight | 2g |
| Width | 11.9mm |
| Mount Type | Surface |
| Series | OKI-T/36W-W40 |
| Maximum Operating Temperature | 100°C |
| Package Type | Case C72 |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Ripple and Noise | 50mV Pk-Pk |
| Maximum Output Power | 36W |
| Maximum Input Voltage | 24V dc |
| Standards/Approvals | RoHS |
| Minimum Input Voltage | 19V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 3A |
| Output Voltage Adjustment Range | 5.02/15.5 V |
Key Features
- Non-isolated point-of-load DC/DC power converter for embedded applications.
- Wide input voltage range from 19V to 40V DC.
- Selectable output voltage range between 5.02V and 15.5V DC.
- High power conversion efficiency of up to 95%.
- Compact surface mount package type Case C72 measuring 20.8mm x 11.9mm x 8.5mm.
- Operates reliably in temperature range from -40°C to 100°C.
- Designed to drive 1000 µF ceramic capacitive loads effectively.
- Single output configuration with ripple and noise of 50mV peak-to-peak.
Product Description
Murata Power Solutions OKI-T/36W-W40N-C is a high-performance, non-isolated DC/DC power converter designed for embedded industrial applications requiring efficient power delivery. This surface-mounted Point-of-Load (PoL) module operates over a wide input voltage range of 19 to 40 Volts DC and provides a stable 15V DC output at a maximum current of 3 Amps, yielding a continuous power output of 36 Watts.
Based on a fixed frequency synchronous buck converter topology, the converter ensures high power conversion efficiency up to 95% while maintaining a compact package size (Case C72) with dimensions of 20.8 mm length, 11.9 mm width, and 8.5 mm depth. Its lightweight design, weighing only 2 grams, facilitates integration in space-constrained devices.
The unit incorporates robust protections including undervoltage lockout (UVLO), output short circuit protection, overcurrent, and temperature protection, enhancing reliability in demanding environments. With an operating temperature range from -40°C to +100°C, it carries RoHS compliance and is manufactured in China.
The converter supports positive or negative polarity On/Off control and is capable of driving 1000 µF ceramic capacitive loads with minimal ripple and noise (50 mV peak-to-peak), suitable for sensitive electronic systems.
Non-isolated SMT PoL DC/DC power module providing stable power output. Wide 19-40V DC input voltage range accommodates varied supply conditions. Selectable output voltage range from 5.02 to 15.5 Volts DC. Delivers up to 3 Amps output current at 15V nominal output.
Compact Case C72 surface mount package fits tight layouts. High efficiency reaching 95% reduces energy loss and thermal buildup. Overcurrent, overtemperature, and short circuit safeguards ensure longevity. Wide operating temperature range from -40°C to +100°C for harsh environments.
Low ripple and noise output compatible with sensitive circuits.
This DC/DC converter is ideal for industrial, electronic, telecommunications, and power management systems requiring reliable, efficient step-down conversion with compact form factor and advanced protection features.
Explore more DC/DC Converters and power management solutions on EnvMart for your embedded system designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates over a wide input voltage range from 19V to 40V DC.
It provides a maximum output power of 36 Watts.
The converter delivers a stable output voltage of 15V DC.
It can output a maximum current of 3 Amps.
The compact surface mount package (Case C72) measures 20.8mm in length, 11.9mm in width, and 8.5mm in depth.
It has a high power conversion efficiency of up to 95%.
The ripple and noise output is specified at 50mV peak-to-peak.
It operates reliably within a temperature range of -40°C to +100°C.
It includes protections for undervoltage lockout, output short circuit, overcurrent, and temperature.
It is capable of driving 1000 µF ceramic capacitive loads effectively.
Yes, it carries RoHS compliance, ensuring it meets environmental standards.
The output voltage can be adjusted between 5.02V and 15.5V DC.
