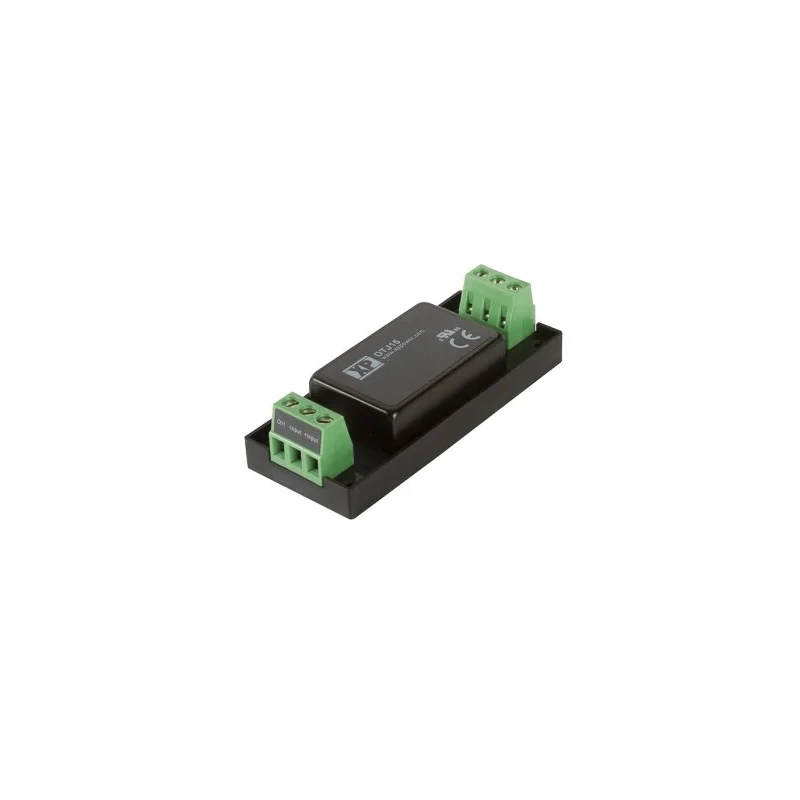

XP Power Chassis Mount DC/DC Converter 5V DC, 1.5A Output, 36V DC Max Input, 15W Power, 4:1 Input Ratio, Encapsulated DTJ15
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power DTJ15 DC/DC Converter, 5V dc/ 1 |
| Brand | XP Power |
| Efficiency | 84% |
| Length | 76.2mm |
| Model | DTJ15 |
| Depth | 19.4mm |
| Gross Weight | 45g |
| Width | 31.4mm |
| Mount Type | Chassis |
| Series | DTJ15 |
| Maximum Operating Temperature | 100°C |
| Package Type | Encapsulated |
| Minimum Operating Temperature | -40°C |
| MTBF | 4mH |
| Number of outputs | 2 |
| Ripple and Noise | 60mV Pk-Pk |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 9V |
| Number of Pins | 6 |
| Output Voltage 1 | 5V dc |
| Output Current 1 | 1.5A |
| Isolation Voltage | 3kV dc |
| Output Current 2 | -1.5A |
| Input Ratio | 4:1 |
| Output Voltage 2 | -5V dc |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range nominal 12V, 24V, 48VDC |
Key Features
- Supports input voltage from 9V to 36V DC for flexible use.
- Provides dual outputs with regulated voltages including 5V DC output.
- Features encapsulated package and chassis mount design for robust industrial integration.
- Includes 3kV DC isolation with 6 pins and ripple/noise of 60mV peak-to-peak.
- Operates reliably from -40°C to 100°C ambient temperature.
- Constructed with copper case providing short circuit and reverse polarity protection.
- Efficiency rated at 84% ensuring energy-saving operation.
- Compact dimensions of 76.2mm length, 31.4mm width, and 19.4mm depth with 45g weight.
Product Description
XP Power DTJ15 is a chassis mount DC/DC converter supplying regulated 5V DC output at 1.5A current with a maximum power output of 15W. It supports a wide input voltage range from 9V to 36V DC, suitable for varied industrial power environments.
This converter is encapsulated within a copper case chassis mount package ensuring mechanical strength and heat dissipation. Its design includes short circuit protection, input reverse polarity protection, and soft start features which enhance operational safety. Input to output isolation voltage is rated at 3kV DC, making it suitable for sensitive electronic applications requiring isolation.
The product measures 76.2mm in length, 31.4mm in width, and 19.4mm in depth with a lightweight build of only 45 grams. It operates efficiently at 84% with ripple and noise limited to 60mV peak-to-peak, ensuring clean output voltage. Its operating temperature range is wide from -40°C to 100°C, supporting robust performance in harsh environments.
The converter's Mean Time Between Failures (MTBF) exceeds 4 million hours under typical conditions, emphasizing its reliability in long-term industrial use.
This DC/DC converter is widely used in industrial controls, automation systems, telecommunications, and power supply modules for embedded electronics. Its chassis mount form factor allows easy integration into control panels and power supply assemblies.
Supports wide input voltage range from 9V to 36V DC. Dual regulated outputs including stable 5V DC. Protection features include short circuit and reverse polarity protection. High isolation voltage of 3kV DC ensures electrical safety.
Compact chassis mount encapsulated package construction. Operating temperature from -40°C to 100°C for harsh environments. Efficiency rated at 84% to reduce power losses. Long MTBF of over 4 million hours ensures product reliability.
Ideal for industrial, laboratory, telecommunications, and automation power applications. Lightweight and compact for easy panel integration. Explore the Electronics & Electricals category at EnvMart for more DC/DC Converters and power solutions from trusted brands like XP Power.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum input voltage for this model is 36V DC.
This unit provides an output current of 1.5A at a regulated output voltage of 5V DC.
The efficiency of this converter is rated at 84%.
It operates reliably within a temperature range of -40°C to 100°C.
This model features a chassis mount design for easy integration into control panels.
This converter has two outputs, providing 5V DC and -5V DC.
The ripple and noise is limited to 60mV peak-to-peak.
The isolation voltage is rated at 3kV DC, ensuring electrical safety.
The dimensions are 76.2mm in length, 31.4mm in width, and 19.4mm in depth.
It includes short circuit protection and reverse polarity protection.
The MTBF exceeds 4 million hours under typical conditions, indicating reliability.
The country of origin for this product is Taiwan.
