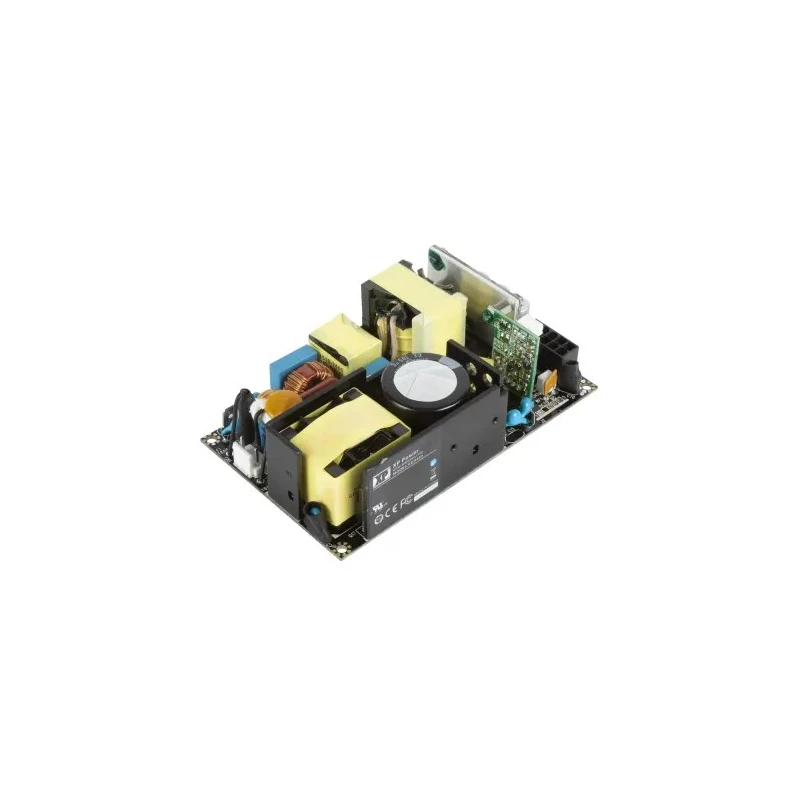

XP Power Switching Power Supply 19V DC 450W Screw Mount ECH450PS19

Free Delivery in India | Lowest Global Shipping Charges

XP Power Switching Power Supply 19V DC 450W Screw Mount ECH450PS19

Name: XP Power Switching Power Supply 19V DC 450W Screw Mount ECH450PS19
Brand: XP Power
SKU: 422565
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	450W
Efficiency	93%
Model	ECH450PS19
Gross Weight	0.86lb
Mount Type	Screw
Series	ECH450
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	RoHS
Maximum Output Voltage	19V dc
SMPS Output Current	23.7A

Key Features

Provides a maximum output voltage of 19 volts DC.
Single output with screw mount type for secure mounting.
450 watts power rating with SMPS output current of 23.7 amperes.
Operates efficiently with 93% efficiency and RoHS compliance.
Wide operating temperature range from -20°C to +70°C.
Includes a 12V fan output and 5V standby output for system cooling and standby functions.
Designed for medical and ITE applications with low leakage current and safety approvals.
Compact footprint measuring approximately 5.0" by 3.0" for versatile usage.

Product Description

XP Power ECH450PS19 switching power supply is engineered to deliver up to 450 watts of power with a reliable 19 volts DC output. This screw mount type power supply is compact, measuring about 5.0 inches by 3.0 inches, enabling integration into challenging spaces. It supports a single output with a strong SMPS output current of 23.7 amperes.

Designed for forced and convection cooling, the unit incorporates a 12V, 600 mA fan supply and 5V/1A standby output, facilitating effective thermal management and standby system operation. Its efficient design provides up to 93% efficiency while maintaining low no-load power consumption to meet environmental legislation.

The ECH450PS19 series complies with RoHS and holds approvals for medical and ITE applications, making it suitable for BF medical classifications due to its low leakage currents and safety features. The robust operating temperature span of -20°C to 70°C ensures dependable performance in diverse industrial and commercial environments.

This power supply is optimized to meet conducted emissions standards EN55011/32 level B and is ideal for use in industrial machines, laboratory equipment, medical instruments, and telecommunication systems.

Provides a maximum output voltage of 19 volts DC. Single output with screw mount type for secure mounting. 450 watts power rating with SMPS output current of 23.7 amperes. Operates efficiently with 93% efficiency and RoHS compliance.

Wide operating temperature range from -20°C to +70°C. Weight is approximately 0.39 kilograms (0.86 lbs). Includes a 12V fan output and 5V standby output for system cooling and standby functions. Designed for medical and ITE applications with low leakage current and safety approvals.

Compact footprint measuring approximately 5.0" by 3.0" for versatile usage. Input voltage up to 264V AC suitable for various global power environments. Explore more power supplies and related components at EnvMart for your industrial and commercial application needs.
