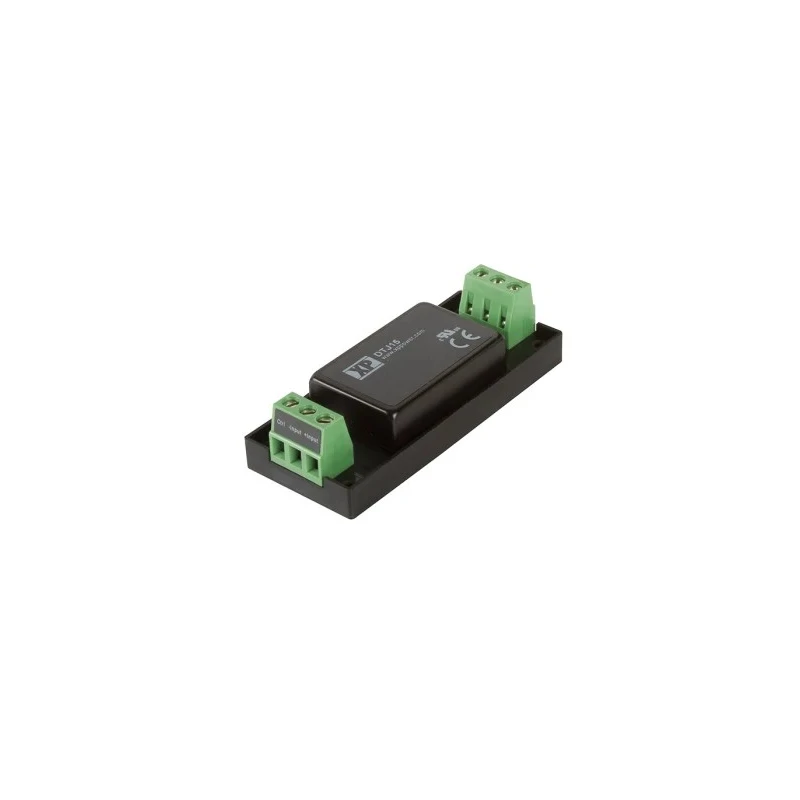

XP Power DTJ15 DC/DC Converter, 5V dc Output 1.5A, Dual Output ±5V dc, 15W Power, 75V dc Max Input, Chassis Mount DTJ15

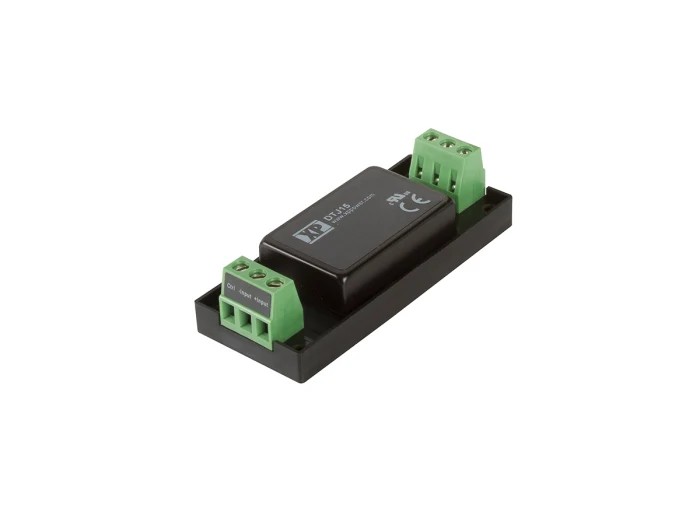

XP Power DTJ15 DC/DC Converter, model DTJ15, is a robust dual output power supply delivering 15W of regulated power with outputs of 5V dc at 1.5A and -5V dc at -1.5A. It features a wide input voltage range from 18V dc up to 75V dc, making it adaptable for various industrial and commercial applications requiring stable DC voltage conversion.

The converter is housed within a durable copper chassis mount case, ensuring excellent heat dissipation and mechanical protection. It supports chassis mounting and includes optional DIN rail clips for convenient installation flexibility.

Safety and reliability are integral with built-in short circuit protection, input reverse polarity protection, and a soft start function helping prevent inrush current damage during power-up. The unit offers 3kV dc isolation voltage which isolates input and output circuits to improve operational safety in demanding environments.

This DC/DC converter operates efficiently at 87%, providing full rated power output up to 80°C ambient temperature, with an operational temperature range between -40°C to 100°C allowing use in harsh conditions. The regulator maintains low ripple and noise levels at 60mV peak-to-peak, suitable for sensitive electronic loads.

XP Power DTJ15 has compact dimensions (L 76.2mm x W 31.4mm x D 19.4mm) and a lightweight design of 45g, facilitating space-constrained system designs. The product carries a high MTBF of over 4 million hours, ensuring long-term reliability for critical industrial, commercial, and laboratory equipment requiring stable power conversion.

This converter provides dual outputs of 5V dc and -5V dc with 1.5A output current each. Supports a wide input voltage range of 18V minimum to 75V maximum with 4:1 input ratio. Built for chassis mounting with a copper case for enhanced durability.

Includes protections such as short circuit protection, input reverse polarity protection, and soft start. Efficient with 87% typical efficiency and delivers full power up to 80°C ambient temperature. Features 3kV dc isolation voltage ensuring safe operation in industrial environments.

Operates reliably across a wide temperature range from -40°C to 100°C maximum. Compact dimensions measuring approximately 76.2mm length, 31.4mm width, and 19.4mm depth. High reliability with Mean Time Between Failures (MTBF) greater than 4 million hours.

Designed for easy integration into commercial and industrial power supply systems.

This DC/DC converter is ideal for use in industrial automation, telecommunications, data communication equipment, instrumentation, and other electronic devices requiring isolated dual DC outputs. Its robust construction and wide operating temperature range make it suitable for challenging environmental conditions.
