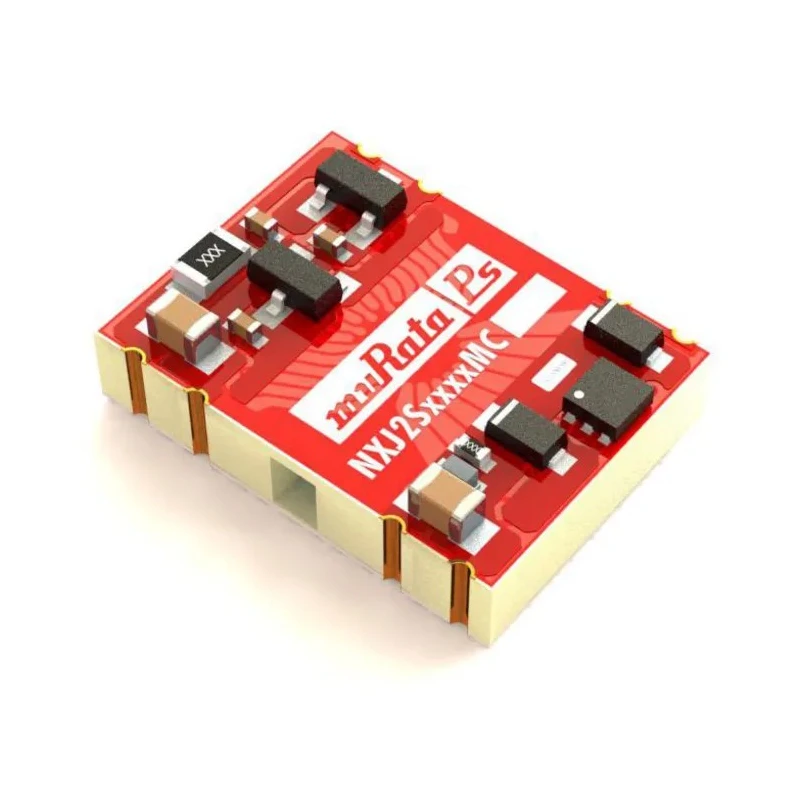

Murata Power Solutions DC/DC Converter Surface Mount 15V dc 133mA 1W 26.4V Max Input NXJ2

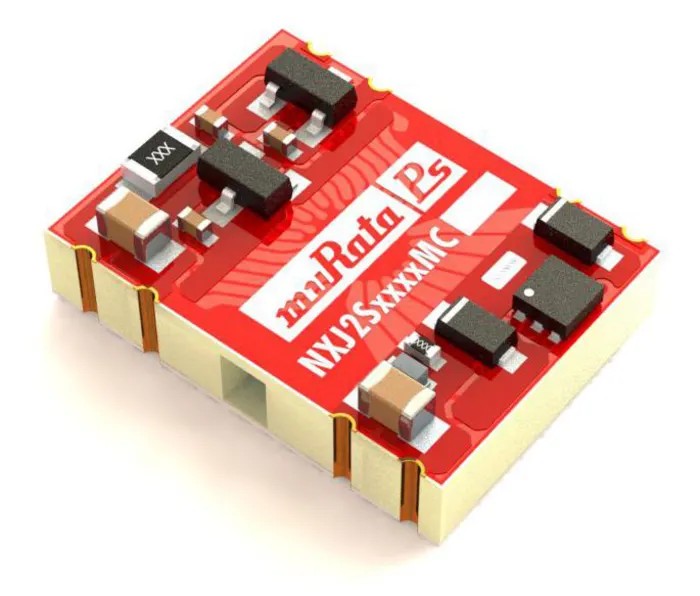

Murata Power Solutions NXJ2 DC/DC Converter NXJ2S2415MC-R7 is a compact, fully automated surface mount DC-DC converter designed for efficient power conversion in electronic applications. It delivers a stable 15V dc output at 133mA from input voltages between 21.6V and 26.4V dc, with a maximum output power of 1 watt.

The converter features substrate embedded transformer technology which enhances reliability and performance repeatability. Its low profile and industry standard footprint facilitate seamless integration into existing designs. This package supports peak reflow solder temperatures up to 260°C, ensuring compatibility with standard manufacturing processes.

With an isolation voltage of 5.2kV dc, this device provides excellent protection against electrical stresses. Ripple and noise are minimized to 50mV peak-to-peak, ensuring clean output power suitable for sensitive electronics. The NXJ2 operates efficiently with a typical efficiency of 78.5%, contributing to energy savings and thermal management in compact designs.

The device complies with UL and ANSI standards, making it suitable for industrial, electronic components, power supply, and distribution applications. Its operating temperature range of -40°C to 85°C makes it reliable for use in harsh environments, including industrial automation, telecommunications, and measurement instrumentation.

Compatible with input voltage range of 21.6V to 26.4V dc. Single output providing 15V dc at 133mA current. Low ripple and noise at 50mV peak-to-peak ensures clean power delivery. High isolation voltage of 5.2kV dc for electrical safety and system reliability.

Compact surface mount package: 16mm x 14.48mm x 4.41mm dimensions. Supports peak reflow solder temperature of 260°C for automated PCB assembly. Efficient operation with 78.5% efficiency rating minimizes power loss. Robust operating temperature range from -40°C to 85°C.

Manufactured using automated processes enhancing repeatability and quality. Complies with UL and ANSI standards for safety and performance.

This DC/DC converter is ideal for applications in industrial electronic systems, power management modules, telecommunications equipment, and instrumentation. The reliable conversion and electrical isolation make it suitable for embedded power supplies requiring compact and durable solutions.
