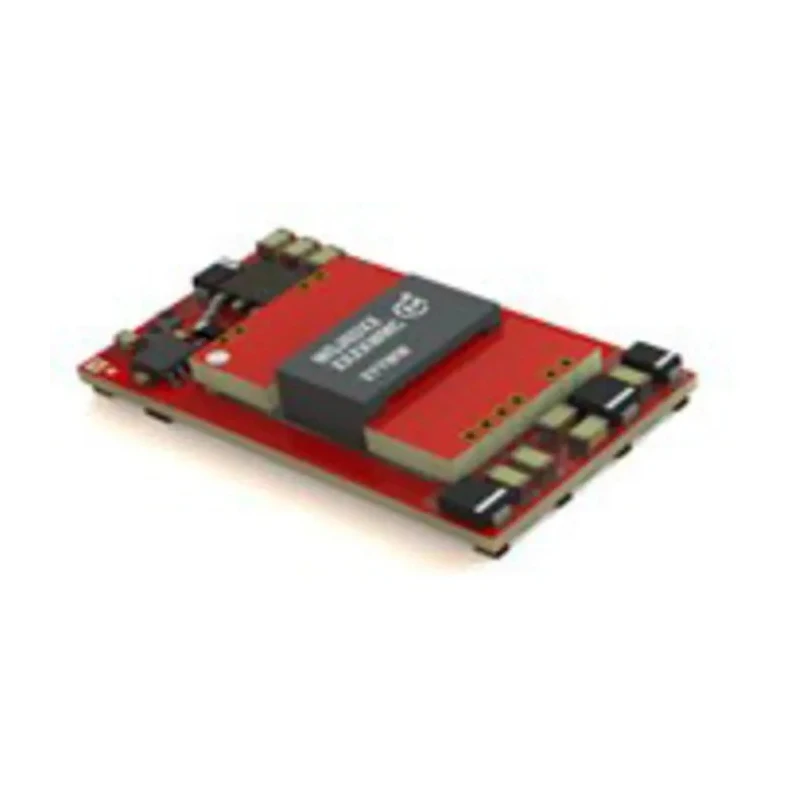

Murata Power Solutions DC/DC Converter Dual Output 20V DC, -5 V DC, 240 mA MGJ6
Specifications
| Country of Origin | China |
|---|---|
| Voltage | Converters / DC-DC Converters Murata Power Solutions MGJ6 DC/DC Converter, 20V d |
| Brand | Murata Power Solutions |
| Length | 45.98mm |
| Model | MGJ6 |
| Depth | 9.15mm |
| Width | 27.81mm |
| Series | MGJ6 |
| Output Current | 240mA |
| Output Voltage | 20, -5V dc |
Key Features
- Designed for high side and low side gate drive circuits for IGBTs and MOSFETs.
- Configurable dual outputs enable optimum drive levels for system efficiency and EMI reduction.
- Characterised for high isolation and dv/dt immunity of 80kV/μs at 1.6kV.
- Features 14mm creepage and clearance with ultra low coupling capacitance of 13pF.
- Includes a disable/frequency synchronisation pin to simplify EMC filter design.
- Ideal for motor drives and inverter bridge circuits.
- Manufactured in China with high quality standards.
Product Description
Murata Power Solutions MGJ6D122005WMC-R7 DC/DC Converter is a dual output voltage converter providing 20V DC and -5 V DC outputs at 240 mA. It is designed specifically for powering high side and low side gate drive circuits used in IGBTs, Silicon and Silicon Carbide MOSFETs for bridge circuits. Its configurable asymmetric output voltages allow for optimized drive levels ensuring the best system efficiency and minimal electromagnetic interference (EMI).
This series is characterised by high isolation and dv/dt immunity rated at 80kV/μs at 1.6kV as well as partial discharge performance, making it highly suitable for use in demanding motor drive and inverter applications. The device features 14mm creepage and clearance distances and ultra low coupling capacitance of 13pF, enhancing its electrical safety and noise immunity.
The converter also includes a disable/frequency synchronisation pin simplifying EMC filter design tasks. With compact dimensions of 45.98mm length, 27.81mm width and 9.15mm depth, this DC/DC converter integrates easily into space-constrained electronic assemblies. Manufactured in China, it upholds rigorous quality standards ensuring reliable performance.
Provides configurable dual outputs for efficient power delivery. Ideal for gate drive circuits of IGBTs and MOSFETs in bridge configurations. High dv/dt immunity and isolation for demanding industrial use. Includes disable/frequency synchronisation for EMC compliance.
Compact dimensions for integration in constrained spaces. Features high creepage and clearance distances for safety. Ultralow coupling capacitance reduces noise interference.
This DC/DC converter is widely used in industrial electronics, motor control, power inverters, and other power management systems requiring stable dual output voltages. It is an essential component for enhancing system efficiency and reliability.
Explore more DC/DC Converters and power solutions on EnvMart for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of 20V DC and -5V DC.
The MGJ6 DC/DC Converter can deliver a maximum output current of 240 mA.
It has compact dimensions of 45.98mm in length, 27.81mm in width, and 9.15mm in depth.
This converter is characterized by a dv/dt immunity rating of 80kV/μs at 1.6kV.
It is ideal for powering high side and low side gate drive circuits for IGBTs and MOSFETs, particularly in motor drives and inverter bridge circuits.
Yes, it includes a disable/frequency synchronization pin to simplify EMC filter design.
The MGJ6 DC/DC Converter features a creepage and clearance distance of 14mm.
It has an ultra low coupling capacitance of 13pF, which helps reduce noise interference.
This DC/DC converter is manufactured in China.
It belongs to the MGJ6 series of DC/DC converters from Murata Power Solutions.
It is designed for high side and low side gate drive circuits used in IGBTs and MOSFETs for bridge circuits.
It is manufactured under high quality standards, ensuring reliable performance in demanding applications.
