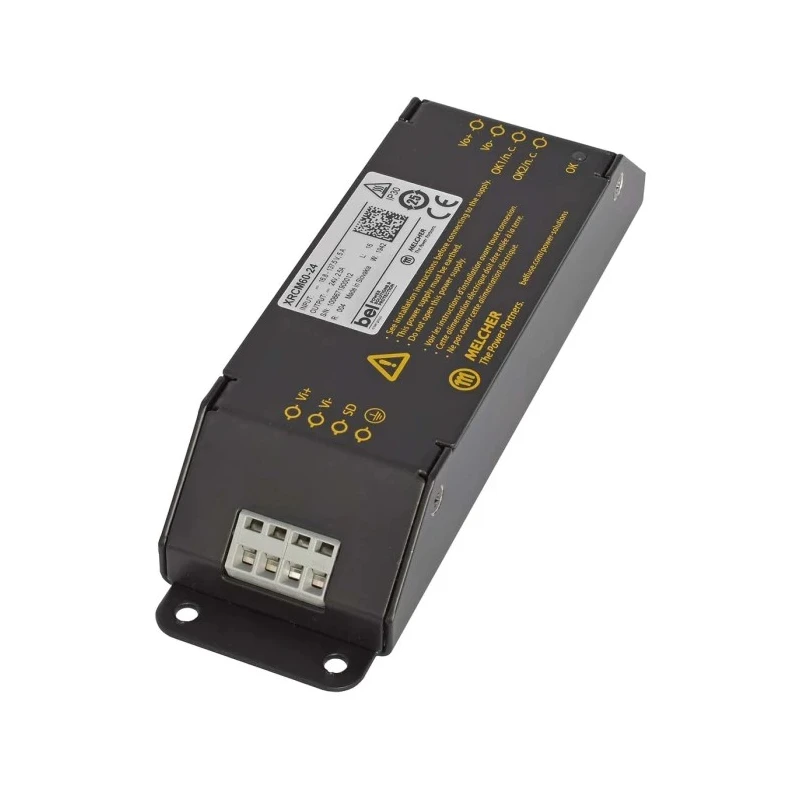

BEL POWER SOLUTIONS INC RCM Series 60W Railway Chassis Mount DC/DC Converter 24V Output, 137.5V Max Input, 16.8V XRCM60-24

BEL POWER SOLUTIONS INC XRCM60-24 DC/DC Converter is a specialized 60W power supply unit intended for railway and transportation sector applications. This chassis mount converter operates with input voltage ranging from 16.8V minimum to 137.5V maximum and delivers a stable 24V output at 2.5A current. The converter is engineered for robust performance within a wide temperature range from -40°C up to 70°C, making it suitable for harsh industrial environments.

The converter supports five output lines with an output voltage adjustment range available at 12V, 15V, and 24V, providing adaptability for various power requirements. It includes an isolation voltage of 3kV AC for safe electrical isolation between input and output circuits, enhancing system safety and reliability.

With a high efficiency of 88%, the RCM60-24 minimizes energy losses, contributing to energy-efficient design and longer system lifetime. Its compact enclosure, measuring 172mm x 50mm x 32mm, ensures easy installation on chassis with convection cooling capabilities.

The device complies with critical international standards such as EN, CSA, UL, and IEC, ensuring adherence to quality and safety benchmarks expected in industrial power supply applications. The MTBF of 800000 hours indicates a highly reliable product designed for continuous operation.

Manufactured in Slovakia, this DC/DC converter is ideal for industrial, railway, transportation, and commercial power systems where stable, efficient, and durable voltage conversion is required.

The product is rated for a maximum input voltage of 137.5V and a minimum input voltage of 16.8V. Output current is 2.5A with multiple outputs supporting up to 5 output lines. It features an output voltage adjustment range of 12V, 15V, and 24V for versatile application needs.

The device supports an isolation voltage of 3kV AC ensuring safe electrical separation. The operating temperature range spans from -40°C minimum to 70°C maximum, suitable for extreme environments. The converter has an efficiency of 88%, ensuring low power loss during conversion.

Designed as a chassis mount with integrated enclosure for convection cooling. Dimensions measure 172mm in length, 50mm in width, and 32mm in depth. Robust certification with compliance to EN, CSA, UL, and IEC standards. Manufactured in Slovakia with a mean time between failures (MTBF) rating of 800000 hours for high reliability.

This DC/DC converter is part of the RCM series intended for railway chassis mount applications and power needs in transportation and industrial systems. Explore more DC/DC Converters in the Electronics & Electricals category at EnvMart to find complementary power solutions.
