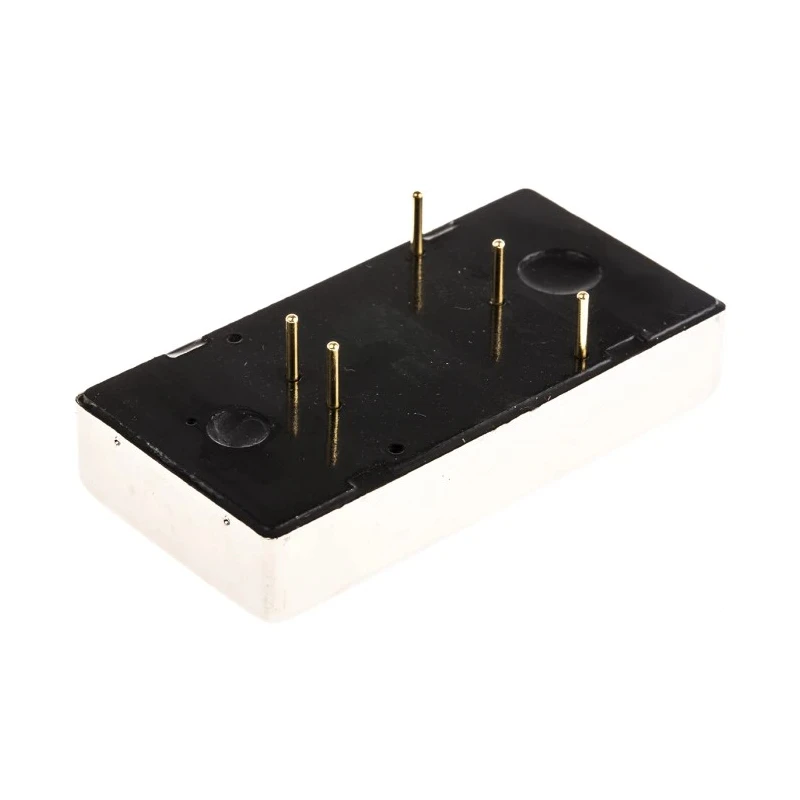

TRACOPOWER Regulated Isolated DC/DC Converter 12V dc 625 mA Dual Output 15W PCB Mount TEL 15-2422
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEL 15 DC/DC Converter, 12V dc/ 625 mA |
| Brand | TRACOPOWER |
| Efficiency | 86% |
| Length | 50.8mm |
| Model | TEL 15-2422 |
| Depth | 10.2mm |
| Mount Type | PCB |
| Series | TEL 15 |
| Maximum Operating Temperature | 80°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 2 |
| Maximum Output Power | 15W |
| Maximum Input Voltage | 36V dc |
| Minimum Input Voltage | 18V |
| Number of Pins | 5 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 625mA |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio 2 | 1 |
| Output Voltage 2 | -12V dc |
| Wide input range 2 | 1 |
Key Features
- Operates with a wide input voltage range from 18V to 36V DC.
- Mountable on PCB with surface mount package design.
- High isolation voltage of 1.5kV DC ensuring safety in applications.
- Efficient operation at 86% efficiency with MTBF of 700,000 hours.
- Wide operating temperature range from -40°C to 80°C.

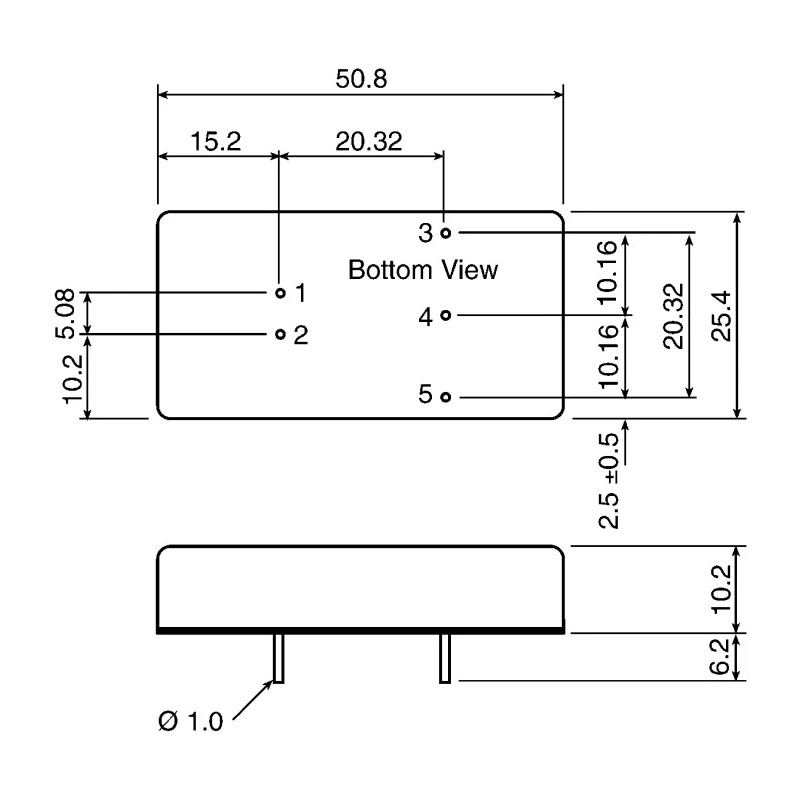

- Compact form factor with length 50.8 mm and depth 10.2 mm.
- Designed with shielded metal case and insulated base plate for protection.
- Ideal for industrial and electronic applications requiring isolated DC-to-DC power conversion.
Product Description
TRACOPOWER TEL 15-2422 is a regulated isolated DC/DC converter designed for dual output applications delivering 12V DC at 625 mA within a maximum power rating of 15W. It supports a wide input voltage range from 18V DC minimum to 36V DC maximum allowing flexible integration into various electronic systems.
This converter features a PCB mount package with surface mount technology and a compact dimension of 50.8 mm length by 10.2 mm depth. Its shielded metal case with an insulated base plate ensures robust mechanical and electrical protection while maintaining high efficiency at 86%. The converter offers a high isolation voltage of 1.5kV DC enhancing operational safety in industrial environments.
Designed to operate reliably over a temperature range from -40°C to 80°C, it supports demanding industrial and electronic use cases including power supplies for instrumentation, automation, and communication systems. With an MTBF rating of 700,000 hours, this converter assures long-term reliability and performance.
Safety and performance standards compliance includes UL/cUL 60950-1 and IEC/EN 60950-1 certifications. The TEL 15 series is specialized for applications needing isolated DC/DC voltage conversion with stable regulated outputs.
Wide input voltage range from 18V to 36V DC. High isolation voltage of 1500V DC ensures system safety. High efficiency of 86% reduces power loss and heat. Compact surface mount design for PCB integration. Operating temperature range from -40°C to +80°C suitable for harsh environments.
Indefinite short circuit protection built-in for fault tolerance. Shielded metal case with insulated base plate for electromagnetic compatibility. Suitable for industrial, laboratory, and manufacturing power supply applications.
Compliance with international safety standards UL/cUL and IEC/EN 60950-1.
This converter is ideal for electronics manufacturers and system designers requiring dependable and efficient DC power conversion in compact form factors. Browse the Electronics & Electricals category at EnvMart for more TRACOPOWER DC/DC Converters and related power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 18V DC to 36V DC.
This converter has a maximum output power of 15W.
The converter provides dual output voltages of 12V DC and -12V DC.
It operates with an efficiency rating of 86%.
The isolation voltage for this converter is 1.5kV DC, ensuring safety in various applications.
The operating temperature range is from -40°C to 80°C.
The dimensions are 50.8 mm in length and 10.2 mm in depth.
This model is designed for PCB mounting with a surface mount package.
The MTBF for this converter is rated at 700,000 hours.
It complies with UL/cUL 60950-1 and IEC/EN 60950-1 safety standards.
It is suitable for industrial, laboratory, and manufacturing power supply applications requiring isolated DC-to-DC conversion.
This converter has two outputs.
