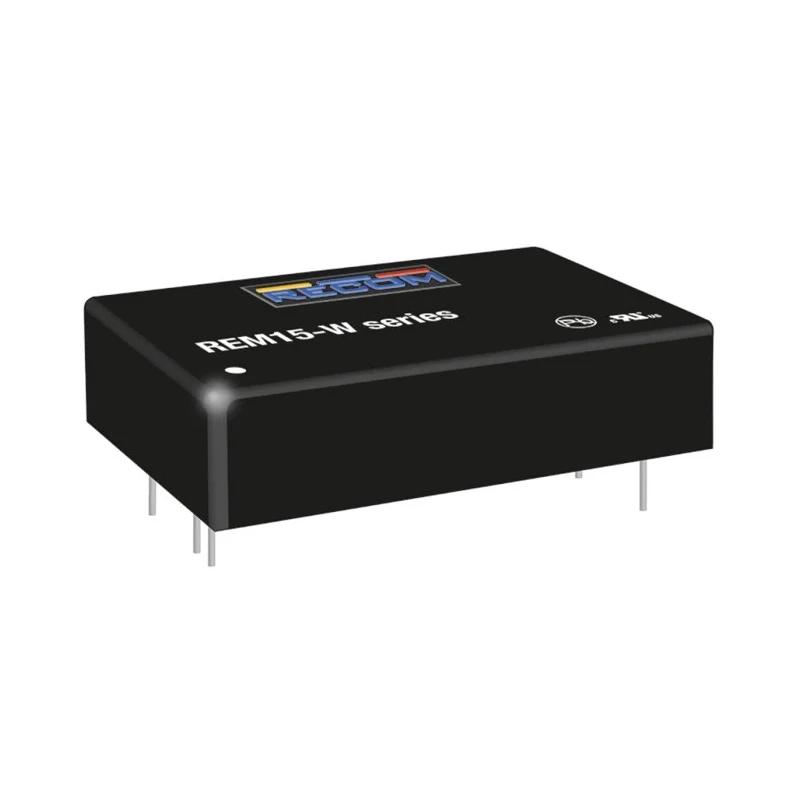

Recom DC/DC Converter 5V DC Output 3A, 24V DC Input, 15W Through Hole REM15-W

Recom REM15-W DC/DC Converter model REM15-W is designed for efficient and reliable power conversion with an output voltage of 5V DC at 3A current, delivering 15W maximum power. It supports a wide input voltage range from 9V to 24V DC and features a through-hole mount type suitable for stable PCB installation.

The unit is housed in a compact 1.6 x 1 inch package measuring 40.6mm in length, 25.4mm in width, and 10.2mm in depth. It exhibits an efficiency of 87% and is engineered to operate within a broad temperature range from -40°C up to 105°C, catering to demanding industrial, medical, and automation environments. Reinforced isolation voltage of 5kV AC with low leakage current of 2μA ensures safety and suitability for patient-connected devices.

This converter series offers low ripple and noise of 100mV, reducing power supply interference. It includes safety features such as short circuit and overload protection for enhanced system robustness. The device complies with international standards including IEC60601-1 (medical electrical equipment), CAN/CSA standards, UL certifications, and ANSI/AAMI ES60601-1, making it ideal for medical, laboratory, and industrial power supply applications.

The REM15-W series is engineered for continuous operation with a Mean Time Between Failures (MTBF) of 2,000,000 hours, ensuring high reliability. Its industrial-grade pinout and reinforced insulation meet a 250VAC working voltage with clearance and creepage distances greater than 8.0mm, making it appropriate for isolated power systems.

The device’s compact size allows integration into embedded systems, industrial controllers, and instrumentation. Wide temperature and input voltage range make it suitable for harsh industrial environments and rugged applications.

Low leakage and high isolation voltage support patient safety in medical device applications. Compliance with global safety and performance standards assures long-term dependability. Through-hole mounting provides secure mechanical installation on PCBs.

Ideal applications include medical equipment power supplies, industrial automation, test and measurement instruments, communication systems, and embedded device power management. Explore our extensive category of DC-DC converters on EnvMart for compatible power modules and enhanced system design solutions.
