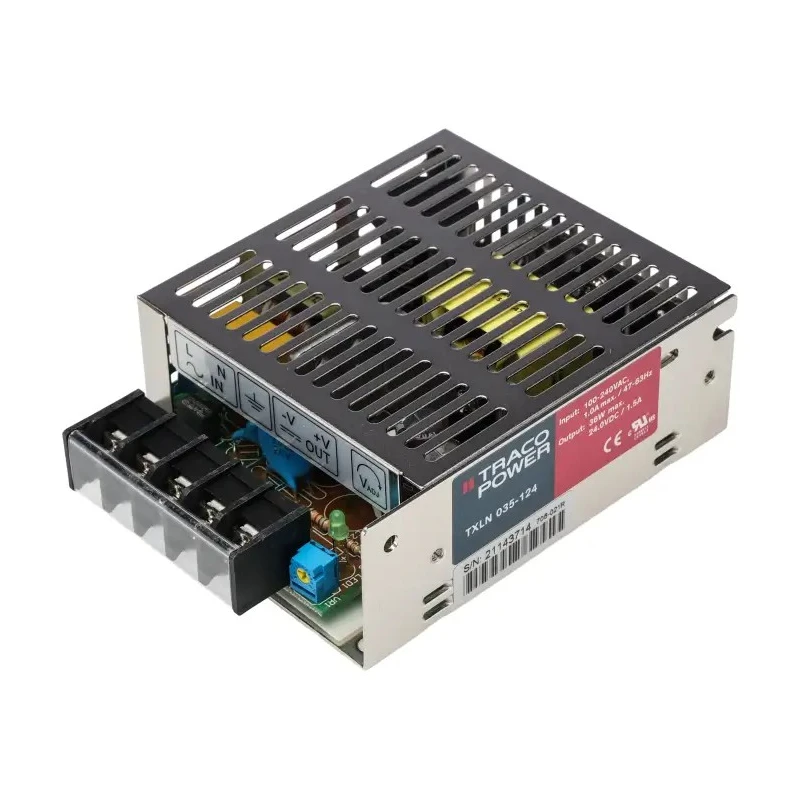

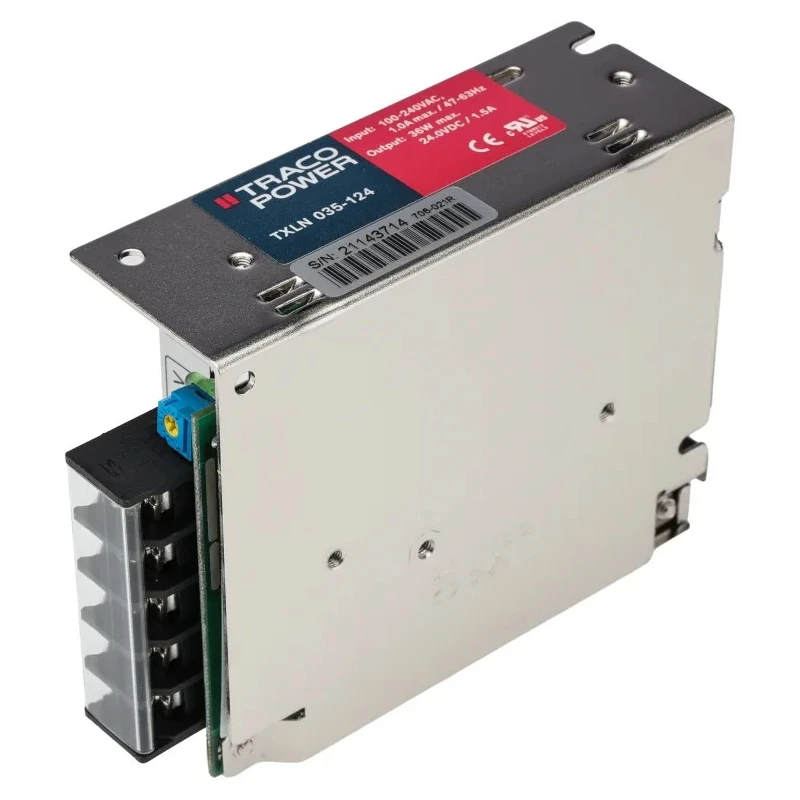

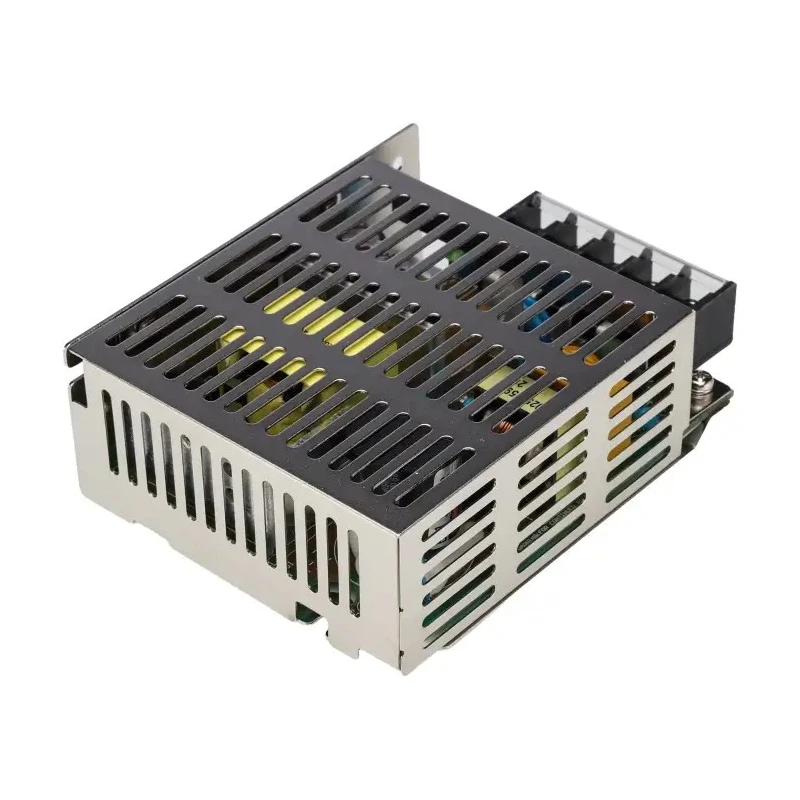

TRACOPOWER TXLN 035-124 Switching Power Supply 24V DC 35W 88-264V AC Input Chassis Mount TXLN 035-124

Free Delivery in India | Lowest Global Shipping Charges

TRACOPOWER TXLN 035-124 Switching Power Supply 24V DC 35W 88-264V AC Input Chassis Mount TXLN 035-124

Name: TRACOPOWER TXLN 035-124 Switching Power Supply 24V DC 35W 88-264V AC Input Chassis Mount TXLN 035-124
Brand: TRACOPOWER
SKU: 422771
Price: 20.22 USD
Availability: InStock



Category Electronic Components, Power & Connectors Brand TRACOPOWER Condition New

Specifications

Country of Origin	Taiwan
Brand	TRACOPOWER
Power	35W
Efficiency	85%
Length	99mm
Model	TXLN 035-124
Depth	82mm
Gross Weight	340g
Width	82mm
Mount Type	Chassis
Series	TXLN
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	1
Maximum Input Voltage	264V ac
Standards/Approvals	EN 61000-3-3, EN 61000-4-8, UL 62368-1, REACH, EN 62368-1, EN 61000-6-3, EN 55024, EN 55032 Class B, EN 61000-3-2 Class A, EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6
Maximum Output Voltage	24V dc
SMPS Output Current	1.5A
Minimum Input Voltage	88V ac

Key Features

Compact chassis mount design for space-saving installation.
High efficiency of approximately 85% reduces energy consumption.
Wide operating temperature range from -20°C to 70°C.
Built-in overload and short circuit protection ensures operational safety.
Single output delivering 1.5A current for consistent power supply.
Complies with multiple international safety and EMC standards.
Convection cooled operation eliminates the need for fans.
Suitable for use in industrial control systems and automated machinery.

Product Description

TRACOPOWER TXLN 035-124 switching power supply offers a robust 24V DC output with a power rating of 35W and an input voltage range of 88 to 264V AC. It is designed for chassis mounting, making it ideal for compact system integrations. This power supply achieves an efficiency of approximately 85%, minimizing power loss and heat generation, which contributes to long-term reliability in demanding environments.

The device supports a maximum output current of 1.5A, suitable for a variety of industrial applications. Its operational temperature range from -20°C to 70°C allows it to function effectively in diverse indoor environments. Built-in protections against overload and short circuit conditions contribute to enhanced safety during usage.

Engineered with convection cooling, the TXLN 035-124 eliminates the need for fans, reducing maintenance and operational noise. The compact dimensions of 99mm length, 82mm width, and 82mm depth facilitate integration into space-constrained applications.

It complies with numerous standards including EN 61000-3-3, UL 62368-1, and REACH, ensuring conformity with safety and electromagnetic compatibility requirements. The power supply is enclosed in a durable metal housing to withstand industrial conditions.

Compact chassis mount design ensures easy installation and space efficiency. High efficiency reduces energy consumption and heat generation. Wide input voltage range supports global compatibility. Multiple international safety and EMC standards certification.

Operation without fans reduces noise and maintenance needs. Built-in protection features safeguard the device and connected equipment. Suitable for industrial control and automated machinery applications. Robust metal housing enhances durability and longevity.

Ideal for diverse industrial, manufacturing, and telecommunications applications, the TXLN 035-124 power supply provides reliable and efficient DC power conversion. Explore EnvMart for a wide range of power supplies and industrial electronic components for your system integration needs.
