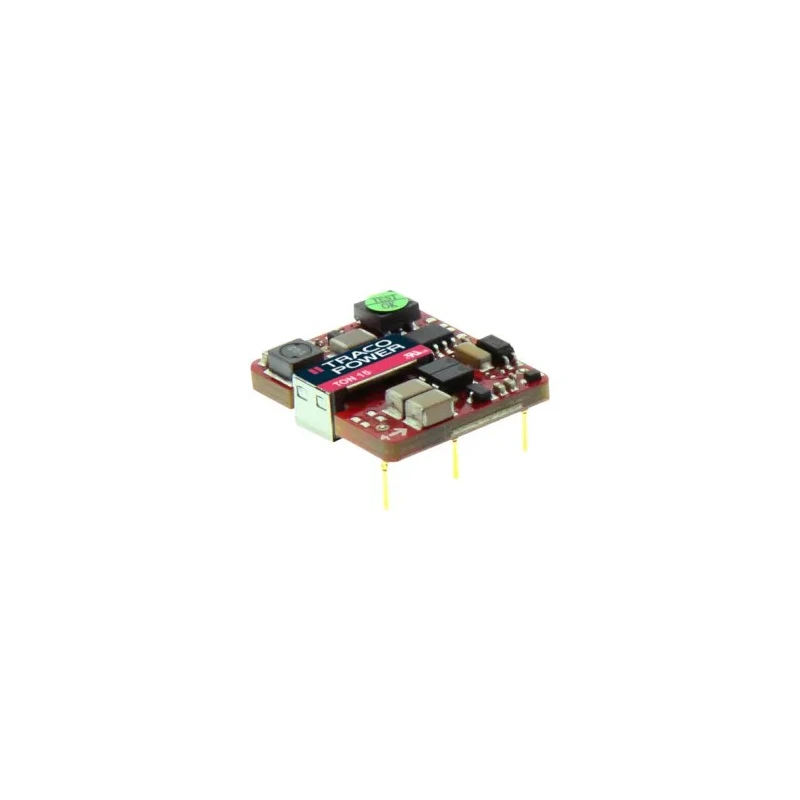

TRACOPOWER DC/DC Converter, 3.3V DC Output, 4A, 36V DC Max Input, 9V Min Input, 13.2W, Through Hole Mount, 85°C TON 15-2410
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | TRACOPOWER |
| Efficiency | 85% |
| Length | 23.88mm |
| Model | TON 15-2410 |
| Depth | 8.5mm |
| Gross Weight | 10.5g |
| Width | 23.88mm |
| Mount Type | Through Hole |
| Series | TON 15 |
| Maximum Operating Temperature | 85°C |
| Package Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| MTBF | 2400000h |
| Number of outputs | 1 |
| Ripple and Noise | 75mV Pk-Pk |
| Maximum Output Power | 13.2W |
| Maximum Input Voltage | 36V dc |
| Standards/Approvals | CE, RoHS |
| Minimum Input Voltage | 9V |
| Output Voltage 1 | 3.3V dc |
| Output Current 1 | 4A |
| Isolation Voltage | 2.25kV dc |
| Input Ratio | 4:1 |
| Input Ratio 4 | 1 |
| Wide input range 2 | 1 |
| All models | L1 choke see stock number 745-1196 |
| L2 choke for TON 15-24xx | see stock number 745-1180 |
| L2 choke for TON 15-48xx | see stock number 745-1171 |
Key Features
- Compact open frame design ensures space saving and easy integration.
- Provides regulated, isolated single output with 3.3V DC at 4A current.
- Robust input and output filters meet EN55022 Class A requirements.
- Supports remote on/off and indefinite short circuit protection.
- Designed for industrial electronics and distributed power systems.
- High isolation voltage of 2.25 kV DC ensures safety and reliability.
- Operating temperature range from -40°C to 85°C with derating above 70°C.
- Compliance with CE and RoHS standards for environmental and safety regulations.
Product Description
TRACOPOWER TON 15-2410 is a high-performance DC/DC Converter featuring a regulated, isolated single output delivering 3.3V DC at 4A from an input voltage range of 9V to 36V DC. Its compact through hole mount open frame construction facilitates easy PCB integration in industrial, instrumentation, distributed power, and other electronic systems.
This converter supports a maximum output power of 13.2W with an efficiency of 85%, providing reliable and cost-effective power conversion. Built-in input and output filters meet the EN55022 Class A electromagnetic compatibility standard, ensuring low interference emission in sensitive electronic environments.
The module features an advantageous input ratio of 4:1 and includes remote on/off functionality alongside indefinite short circuit protection for operational safety and control flexibility. With a high isolation voltage of 2.25kV DC, it offers robust protection between input and output circuits.
The operating temperature range spans from -40°C to 85°C, accounting for thermal derating beyond 70°C, making it suitable for harsh industrial conditions. The device complies with CE and RoHS standards, reflecting environmental compliance and industry safety certifications.

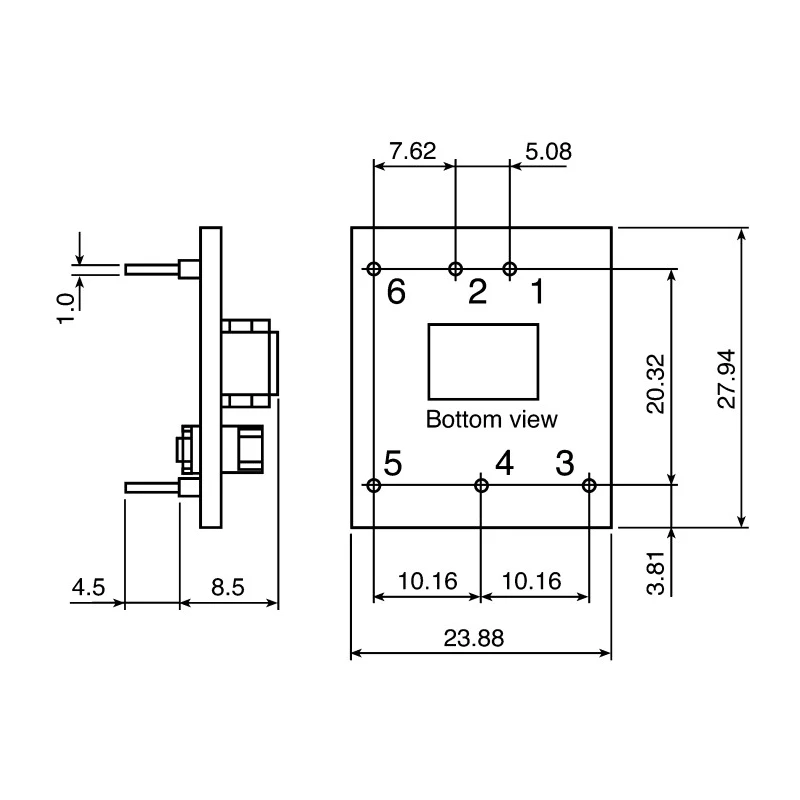

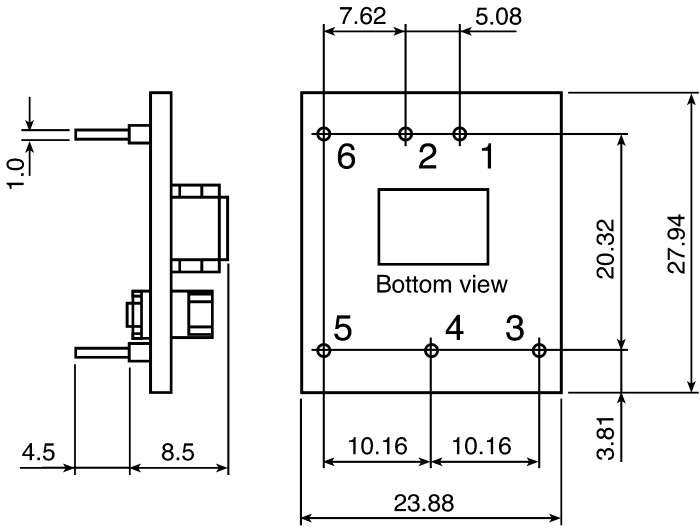

The converter has a length and width of 23.88mm and a depth of 8.5mm, weighing approximately 10.5 grams. It boasts excellent reliability with an MTBF of 2,400,000 hours measured to MIL-HDBK-217F standards at 25°C. Country of origin is Taiwan, Province Of China.
Compact open frame design for flexible PCB mounting. Wide 9V to 36V DC input voltage range with 4:1 ratio. Regulated isolated 3.3V DC single output at 4A current. Built-in filters and remote on/off for compliance and control.
Indefinite short circuit protection for enhanced durability. High isolation voltage at 2.25kV DC for safety. Temperature range supports -40°C to 85°C operation. CE and RoHS compliant to meet regulatory standards. High reliability with 2.4 million hours MTBF rating.
Compact surface mount through hole package with metal pins. Ideal for use in industrial electronics, instrumentation, distributed power systems, and other applications requiring reliable, compact DC power conversion. Explore more quality power converters and related electronics at EnvMart for comprehensive industrial, HVAC, laboratory, and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It provides a regulated output voltage of 3.3V DC with a maximum output current of 4A.
The maximum input voltage for this model is 36V DC.
This DC/DC converter has an efficiency rating of 85%.
It operates within a temperature range of -40°C to 85°C, with derating above 70°C.
This converter features a through hole mount design, allowing for easy PCB integration.
It has a high isolation voltage of 2.25 kV DC, ensuring safety between input and output circuits.
This model complies with CE and RoHS standards, reflecting its adherence to environmental and safety regulations.
It weighs approximately 10.5 grams and has dimensions of 23.88mm in length and width, and 8.5mm in depth.
Yes, it features indefinite short circuit protection for enhanced operational safety.
It is designed for use in industrial electronics, instrumentation, and distributed power systems.
The mean time between failures (MTBF) for this converter is rated at 2,400,000 hours according to MIL-HDBK-217F standards at 25°C.
