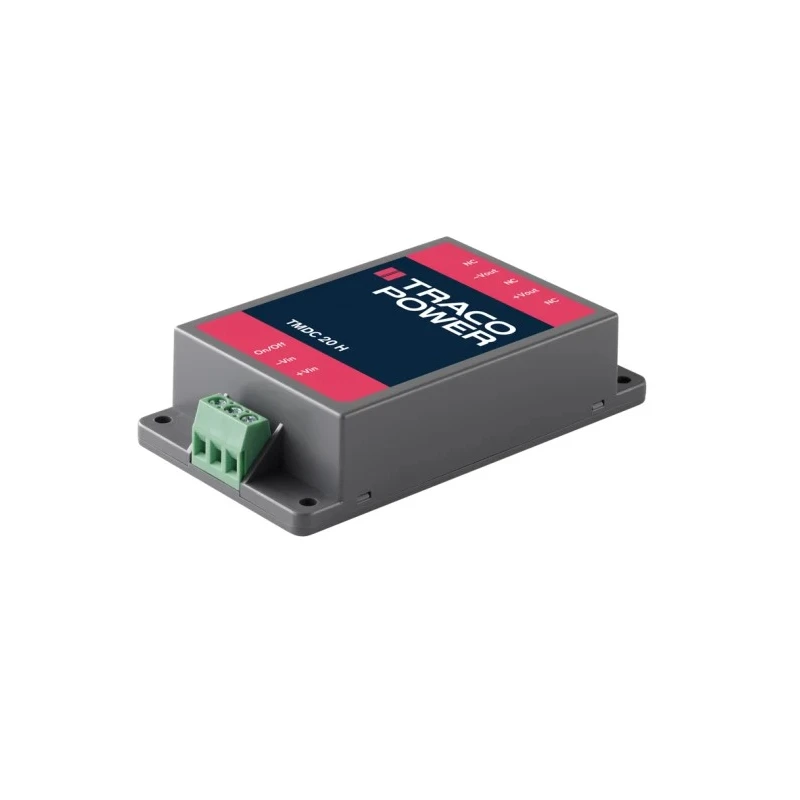

TRACOPOWER Industrial DC/DC Converter 15V Output, 20W Power, 80V-160V DC Input, Chassis Mount, 85°C Max, TMDC 20-7223H
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TMDC 20H DC/DC Converter, 15V dc/, 160V |
| Brand | TRACOPOWER |
| Efficiency | 0.87% |
| Length | 96mm |
| Model | TMDC 20-7223H |
| Depth | 23.3mm |
| Gross Weight | 107g |
| Width | 54mm |
| Mount Type | Chassis Mount |
| Series | TMDC 20H |
| Maximum Operating Temperature | 85°C |
| Package Type | Plastic Case |
| Minimum Operating Temperature | -40°C |
| MTBF | 697000h |
| Number of outputs | 2 |
| Ripple and Noise | 150mV Pk-Pk |
| Maximum Output Power | 20W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 80V |
| Output Voltage 1 | 15V dc |
| Output Current 1 | 670mA |
| Isolation Voltage | 3kV |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Output Voltage 2 | -15V dc |
Key Features
- Provides stable dual output voltages of +15V and -15V with regulated performance.
- Supports input voltage range from 80V to 160V DC ensuring versatile usage.
- Chassis mount package with plastic casing for easy installation and protection.
- Equipped with 3000 VAC reinforced isolation for enhanced safety in electrical circuits.
- Operating temperature spans from -40°C minimum to 85°C maximum for harsh environments.
- Low ripple and noise with 150mV peak to peak for sensitive electronics.
- High mean time between failures (MTBF) of 697,000 hours ensuring long service life.
- Compact size with dimensions 96mm (L) x 54mm (W) x 23.3mm (D) and lightweight at 107 g.
Product Description
TRACOPOWER TMDC 20-7223H is a robust industrial-grade DC/DC converter engineered to provide a regulated 15V DC output at up to 670mA per output. Its wide input voltage range spanning from 80V to 160V DC supports a broad spectrum of industrial power sources. The converter features dual outputs (+15V and -15V) with high isolation voltage of 3kV AC, enabling safe operation in demanding electrical environments.
The chassis mount module is housed in a durable plastic case designed for reliable installation and mechanical protection. With an efficiency of 87% and low ripple/noise of 150mV peak-to-peak, it ensures clean power delivery for sensitive electronics in industrial, manufacturing, automation, and power supply distribution applications.
Its certified operating temperature range from -40°C to +85°C suits harsh environmental conditions commonly found in industrial plants, HVAC systems, and control equipment. The high MTBF value of 697,000 hours indicates superior reliability and long-term operational stability.
This converter provides integrated protection mechanisms for overload, undervoltage, and short circuit scenarios, enhancing system safety and longevity. Its compact footprint (96mm length, 54mm width, 23.3mm depth) and light weight of approximately 107 g allow easy integration into existing chassis and enclosures.
Dual isolated outputs of +15V and -15V DC. Wide input voltage range between 80V and 160V DC. 3000 VAC isolation voltage for safety and interference immunity. Robust plastic casing with chassis mount form factor. High reliability with MTBF of nearly 700,000 hours.
Operating temperature from -40°C to 85°C supports harsh environments. Low ripple and noise improve signal integrity in equipment. Efficiency of approximately 87% conserves energy usage. Overload, undervoltage, and short circuit protections included.
Compact and lightweight design for easy installation.
This TRACOPOWER TMDC 20-7223H DC/DC converter is ideally suited for industrial power supply solutions, automation systems, laboratory equipment, and manufacturing lines requiring precision and reliability. Its wide voltage input and dual output design enable versatility in various electrical distribution and conversion tasks.
Explore more in the Electronics & Electricals category under DC/DC Converters at EnvMart for high-quality power conversion products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides dual output voltages of +15V and -15V DC.
The input voltage range for this unit is from 80V to 160V DC.
It has a maximum output power of 20W.
The dimensions are 96mm (L) x 54mm (W) x 23.3mm (D) and it weighs 107 grams.
The maximum operating temperature is 85°C.
This converter has an efficiency rating of approximately 87%.
It features a chassis mount design.
The isolation voltage is 3000 VAC, providing enhanced safety.
It has a ripple and noise specification of 150mV peak-to-peak.
The MTBF for this converter is 697,000 hours, indicating high reliability.
It includes integrated protections for overload, undervoltage, and short circuit scenarios.
It is suitable for industrial power supply solutions, automation systems, and laboratory equipment.
