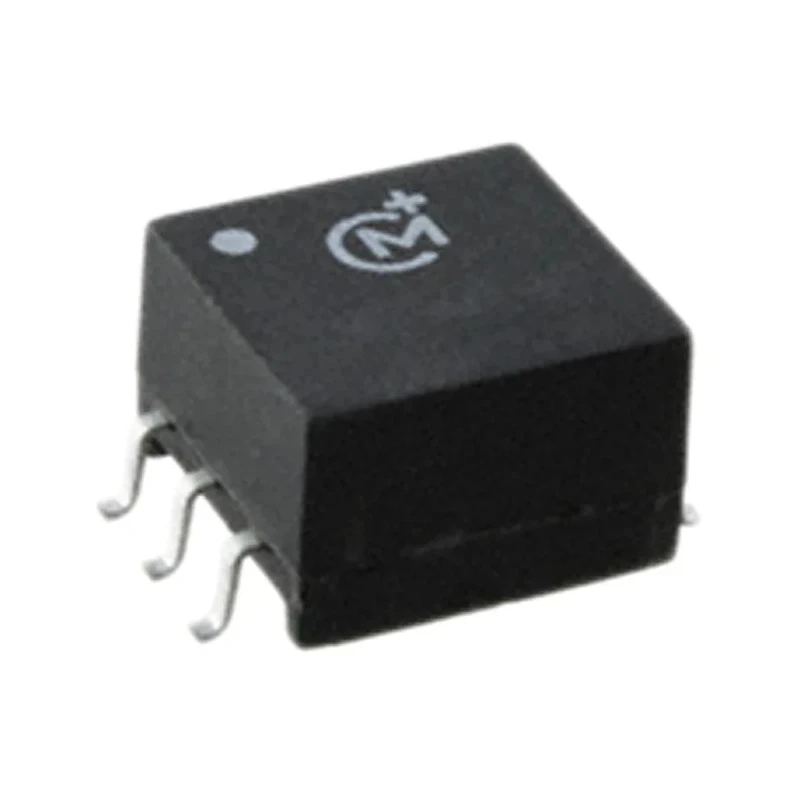

Murata Power Solutions Surface Pulse Transformer 1:1:1 Turns Ratio, 10000 μH Primary Inductance, 1.8Ω Primary 78602/9JC

Murata Power Solutions 78602/9JC Surface Pulse Transformer features a 1:1:1 turns ratio, 10000μH primary inductance, and 1.8Ω primary resistance designed for reliable use in power supply circuits and electronic components.

This transformer is built with a surface mount design and includes 6 pins with solder termination, ensuring effective electrical connectivity and integration on printed circuit boards.

It boasts an isolation voltage rated at 1kV AC, providing enhanced safety and electrical isolation for sensitive electronic applications. The device is RoHS compliant, adhering to environmental and safety regulations.

Operating temperature ranges from -40°C to 85°C, allowing it to function well in a variety of industrial and commercial environments.

Compact in size, with dimensions measuring 9.52mm in length, 9mm in width, and 6.35mm in depth, this pulse transformer supports efficient space utilization in compact electronic assemblies.

The low leakage inductance of 0.71μH reduces energy losses and noise, optimizing circuit performance.

This product is ideal for use in coupling applications, thyristor and triac firing circuits, and small-sized switch mode power supplies. Additionally, it can be utilized as a common mode choke in filtering applications, making it versatile for various industrial and electronics manufacturing needs.

Choose Murata Power Solutions transformers for precision, durability, and extensive application in electronic and power supply domains. Features a compact surface mount design suitable for modern PCBs. Equipped with 6 pins and solder termination for reliable connections.

Offers isolation voltage of 1kV AC enhancing safety in circuits. Operates effectively within temperatures from -40°C to 85°C. Primary leakage inductance is low at 0.71μH, optimizing performance. The device complies with RoHS standards ensuring environmental safety.

Dimensions are small with length 9.52mm, width 9mm, and depth 6.35mm for space-saving layouts. Can be used in coupling, thyristor/triac firing, and small switch mode power supply applications. Explore a wide range of Pulse Transformers and power supplies at EnvMart for industrial, laboratory, and commercial electronics solutions.
