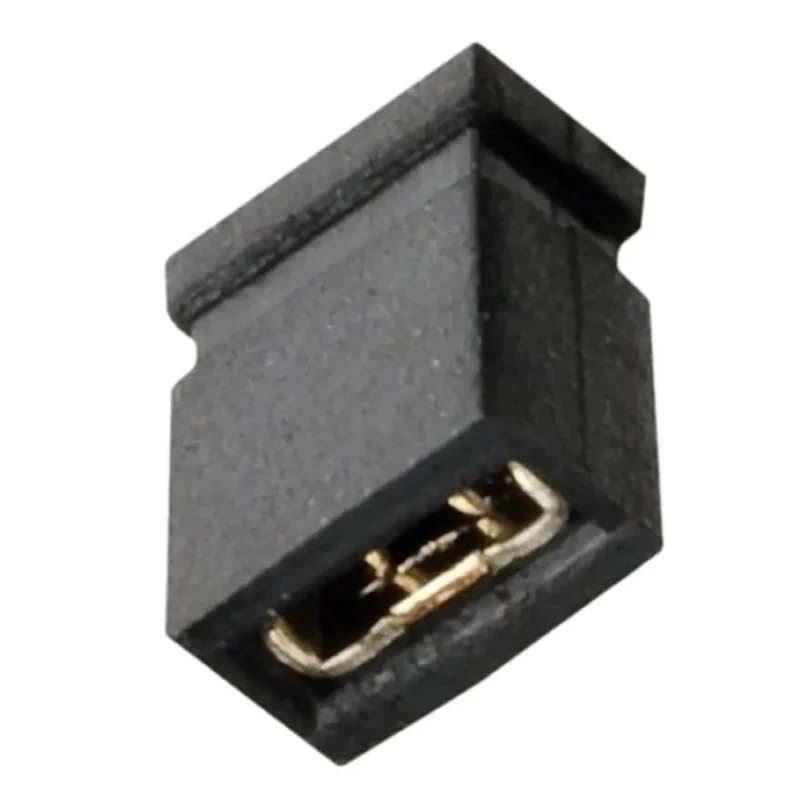

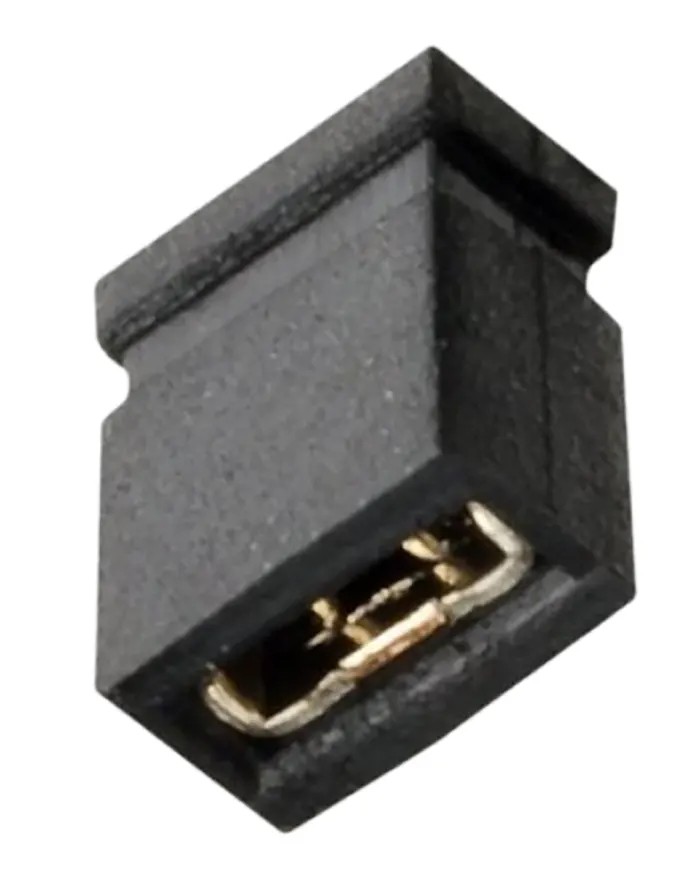

HARWIN Archer M50 Jumper Straight Female Black Jumper 2 Way 1 Row 1.27 mm Pitch M50-1900005

HARWIN M50-1900005 Jumper is a straight female jumper socket designed in the Archer M50 series with a 1.27 mm pitch, suitable for precise PCB interconnections. It is engineered with a durable black polybutylene terephthalate housing rated to UL94V-0 standard, ensuring fire resistance and mechanical reliability. The housing's compact size of 2.5 mm length, 1.5 mm width, and 3 mm depth facilitates space-saving PCB layout designs.

The jumper supports a nominal current of 1 ampere and a voltage rating of 500 volts, enabling it to handle standard low power PCBs and electronic circuits. Its contacts are made from copper alloy with gold over nickel plating, guaranteeing superior electrical conductivity, corrosion resistance, and low contact resistance of 20 milliohms at maximum. This ensures minimal signal degradation and energy loss.

With a design life of up to 300 operations, the jumper socket is a reliable alternative to conventional DIP switches in circuit programming and configuration tasks. The straight orientation and female connector type simplify manual fitting and stacking for modular PCB configurations.

This jumper is ideal for industrial, laboratory, electronic manufacturing, and repair applications requiring compact, dependable connectors for PCB jumpers and shunts. The jumper housing material is polybutylene terephthalate, providing mechanical robustness and electrical insulation.

Contact material is copper alloy with gold over nickel plating for enhanced performance. Designed for a 2-contact, 2-way connection in a single row layout. Maximum contact resistance of 20 milliohms ensures efficient electrical transmission.

Compact pitch of 1.27 mm supports high-density PCB applications. Explore the complete range of Jumpers & Shunts in the Electronics & Electricals category at EnvMart for reliable PCB connectivity solutions.
