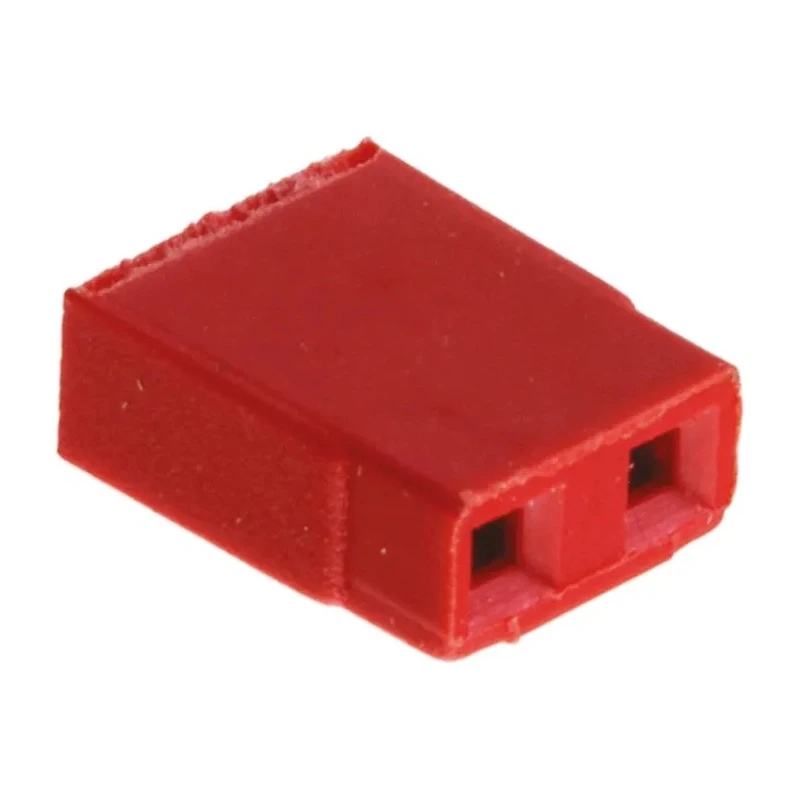

HARWIN Jumper Straight Female Red Open Top 2 Way 1 Row 2.54 mm Pitch M7566-05

HARWIN M7566-05 Jumper Straight Female Red Open Top 2 Way 1 Row 2.54 mm Pitch is an open top jumper designed for use with M20 pin header connectors. The open top allows for convenient access for test probes, making it ideal for diagnostic and prototyping applications in electronics assembly.

Its phosphor bronze contacts, plated with gold, provide excellent conductivity and resistance to corrosion, ensuring a reliable electrical connection under typical operating conditions up to 3 amperes and 250 volts. The compact dimensions of 6.3 mm length, 5 mm width, and 2.3 mm depth enable high-density PCB configurations.

The jumper features a single row with two female contacts at a 2.54 mm pitch, suitable for stacking side by side or end to end in dense electronic circuits. The housing is constructed from red polybutylene terephthalate material, providing electrical insulation and mechanical durability.

Applications for this jumper include industrial electronics, laboratory equipment, communication devices, manufacturing test fixtures, and other commercial-grade PCB assemblies where small form factor and reliable performance are required.

Open top design for test probe accessibility. Gold-plated phosphor bronze contacts ensure conductivity. Supports up to 3A current and 250V voltage rating. Compact size suitable for dense PCB layouts. Manufactured in the United Kingdom to quality standards.
