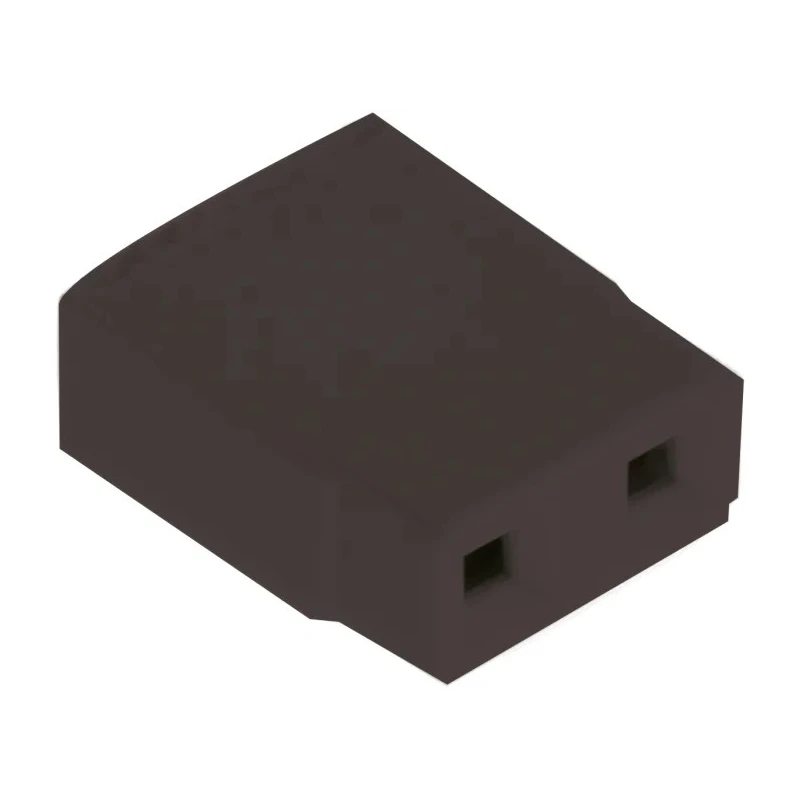

HARWIN Jumper Straight Female Open Top 2 Way 1 Row 2.54 mm Pitch 250V 3A M7567-05
Specifications
| Country of Origin | United Kingdom |
|---|---|
| Voltage | 250V |
| Brand | HARWIN |
| Colour | Black |
| Orientation | Straight |
| Current | 3A |
| Length | 6.3mm |
| Model | M7567-05 |
| Depth | 2.3mm |
| Width | 5mm |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Phosphor Bronze |
| Series | M20 |
| Sub Type | Open Top |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
| Maximum Contact Resistance | 25mΩ |
| HARWIN Jumper Female Straight Grey Open Top 2 Way 1 Row 2.54mm PitchBrand | HARWIN |
Key Features
- Open Top design enables use of test probes without removal.
- Constructed with durable Polybutylene Terephthalate housing for robustness.
- Gold-plated Phosphor Bronze contacts ensure low resistance and reliability.
- Compact size with 6.3 mm length and 5 mm width fits tightly in circuits.
- Designed as part of the M20 series for compatibility and stacking configurations.
- Supports 2.54 mm pitch and 3 amp current rating for standard PCB applications.
- Black color housing provides clear visual identification and insulation.
- Straight orientation female connector suitable for easy insertion.
Product Description
HARWIN M7567-05 Jumper Straight Female Open Top 2 Way 1 Row 2.54 mm Pitch 250V 3A is a high-quality PCB jumper designed for use with the M20 range of pin headers. This open top jumper allows convenient access for test probes, making it ideal for testing and diagnostics in industrial, laboratory, and electronics manufacturing environments.
The jumper features a sturdy polybutylene terephthalate housing with a black coloration, providing insulation and mechanical strength. Its gold-plated phosphor bronze contacts offer excellent conductivity and corrosion resistance, ensuring a reliable electrical connection. The twin beam design of the contacts enhances contact stability and reduces resistance to a maximum of 25 milliohms.
With a pitch of 2.54 mm and a compact footprint measuring 6.3 mm in length, 5 mm in width, and 2.3 mm in depth, this jumper is suitable for dense PCB assemblies. Rated at 250 volts and supporting currents up to 3 amps, it can be employed in various electronic power connector applications.
The product is manufactured in the United Kingdom and complies with relevant industrial standards. The straight female connector orientation facilitates straightforward insertion into headers with 1 row and 2 positions.
Open Top design enables easy use of test probes. Polybutylene Terephthalate housing ensures mechanical durability. Gold-plated Phosphor Bronze contacts provide low resistance and longevity. Compact size fits neatly in PCB assemblies with 2.54 mm pitch.
Supports 250 V voltage rating and 3 A current for typical electronic circuits. Black color housing offers clear identification and insulation. Straight orientation female connector for easy mating. Manufactured in the United Kingdom for assured quality.
This jumper is ideal for use in electronics manufacturing, testing labs, industrial automation, and other applications requiring reliable interconnections and easy access for testing equipment. EnvMart recommends this jumper for engineers and technicians looking for a dependable and compact open top jumper socket solution.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The jumper has a voltage rating of 250V, making it suitable for standard electronic applications.
It supports a maximum current of 3A, which is typical for many electronic power connector applications.
The jumper features a pitch size of 2.54 mm, compatible with various PCB layouts.
The jumper measures 6.3 mm in length, 5 mm in width, and 2.3 mm in depth, making it compact for PCB assemblies.
The housing is constructed from polybutylene terephthalate, providing mechanical strength and insulation.
It features gold-plated phosphor bronze contacts, which ensure low resistance and reliable conductivity.
Yes, the open top design allows for convenient access to test probes without needing to remove the jumper.
This model has 2 contacts, designed for a 2-way connection.
The connector has a straight orientation, facilitating easy insertion into headers.
This jumper is manufactured in the United Kingdom, ensuring quality standards are met.
It is part of the M20 series, designed for compatibility with M20 pin headers.
The maximum contact resistance is 25 milliohms, which contributes to its efficient performance.
