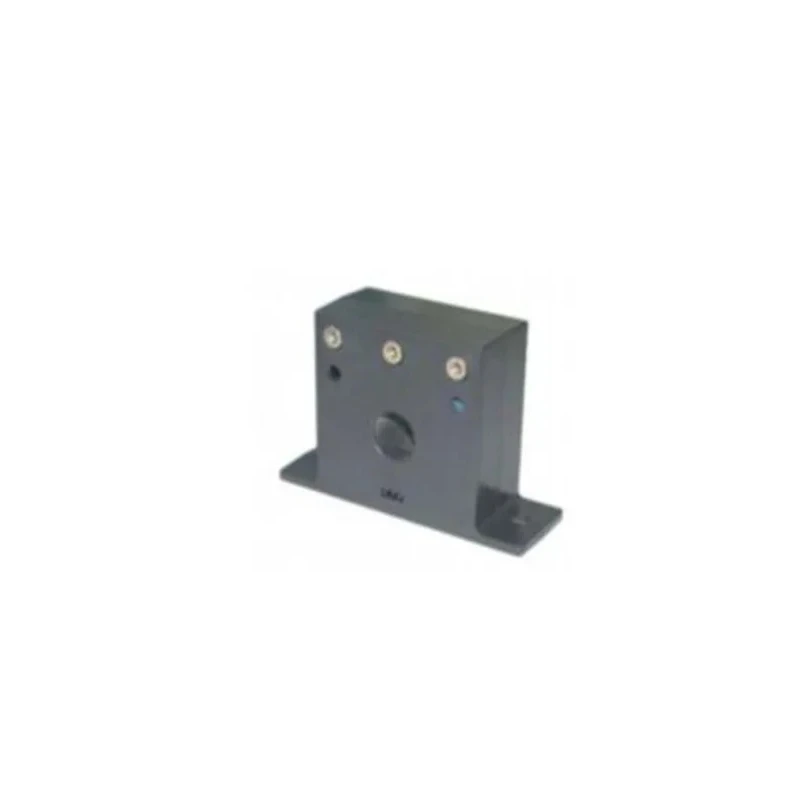

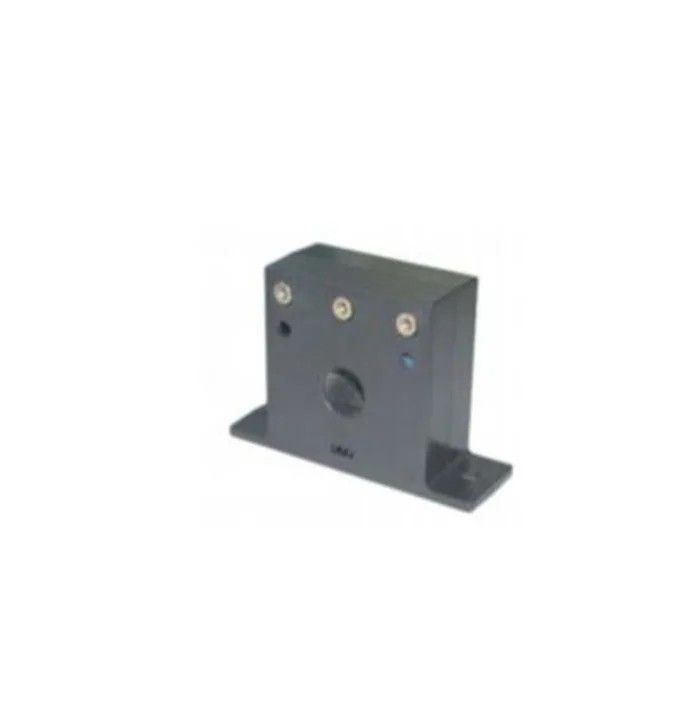

RS PRO Solid Core Current Transducer 5 A 13.8mm Bore, Screw Terminal, 24 V DC Supply, 5-60 Hz Frequency, 210-0638

RS PRO 210-0638 is a high-quality solid core current transducer designed for precise electronic measurement of AC sinusoidal waveforms with galvanic isolation between the primary and secondary circuits. This current transducer is ideal for industrial automation control systems requiring accurate analog current readings for remote monitoring.

The device features a screw terminal type ensuring secure and reliable electrical connections. It operates at a primary current rating of 5 A and is capable of measuring frequencies between 5 Hz and 60 Hz. Its insulated plastic housing complies with UL 94-V0 flammability standards, providing electrical safety and mechanical durability.

Designed for panel mounting using a stable base mount configuration, the transducer has compact dimensions, measuring 55.4 mm in length, 83.8 mm in width, and 27 mm in depth, facilitating easy integration into control panels.

Operating reliably over a temperature range from -25 °C to +65 °C and with a supply voltage of 24 V DC, this transducer supports stable operations in a variety of industrial and commercial settings. The precise bore diameter of 13.8 mm ensures compatibility with standard conductor sizes for current measurement.

Weighing approximately 123 grams, the RS PRO 210-0638 balances robust construction with lightweight design, optimizing system efficiency. Its CE marking and compliance with UL 94 and RS standards confirm its quality and safety for industrial use.

The transducer features a screw terminal type for reliable electrical connections. It operates with a primary current of 5 A and frequency bandwidth from 5 Hz to 60 Hz. Constructed with an insulated plastic case meeting UL 94-V0 standards for safety.

The device supports a supply voltage of 24 V DC and mounting via a base mount type. Operating temperature range spans from -25 °C to +65 °C ensuring versatility in industrial environments. The bore diameter of the transducer is precisely 13.8 mm for accurate installation.

Compact dimensions of 55.4 mm length, 83.8 mm width, and 27 mm depth ensure easy panel mounting. The product weighs approximately 123 grams, suitable for automation control applications.

This RS PRO current transducer is tailored for industrial measuring and control applications including process control, electrical automation, HVAC systems, and manufacturing plants. Its design supports reliable analog current conversion with galvanic isolation, promoting safety and measurement accuracy.
