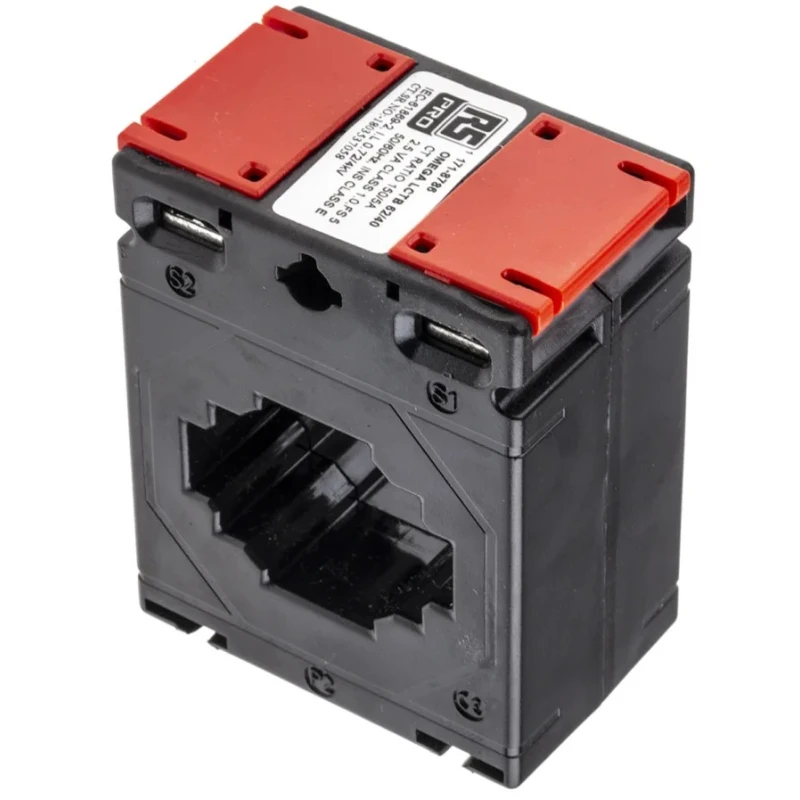

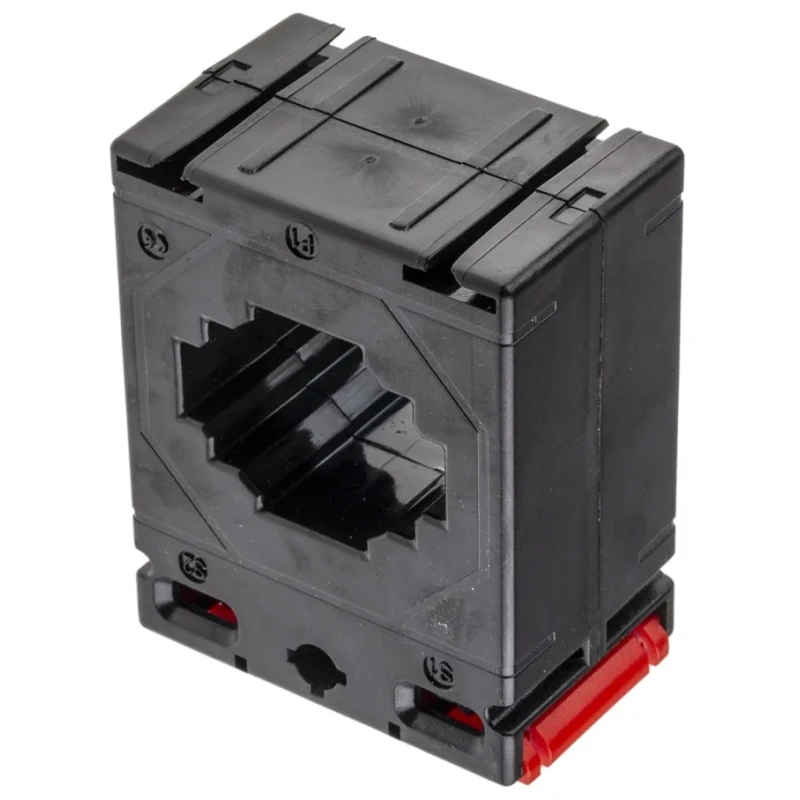

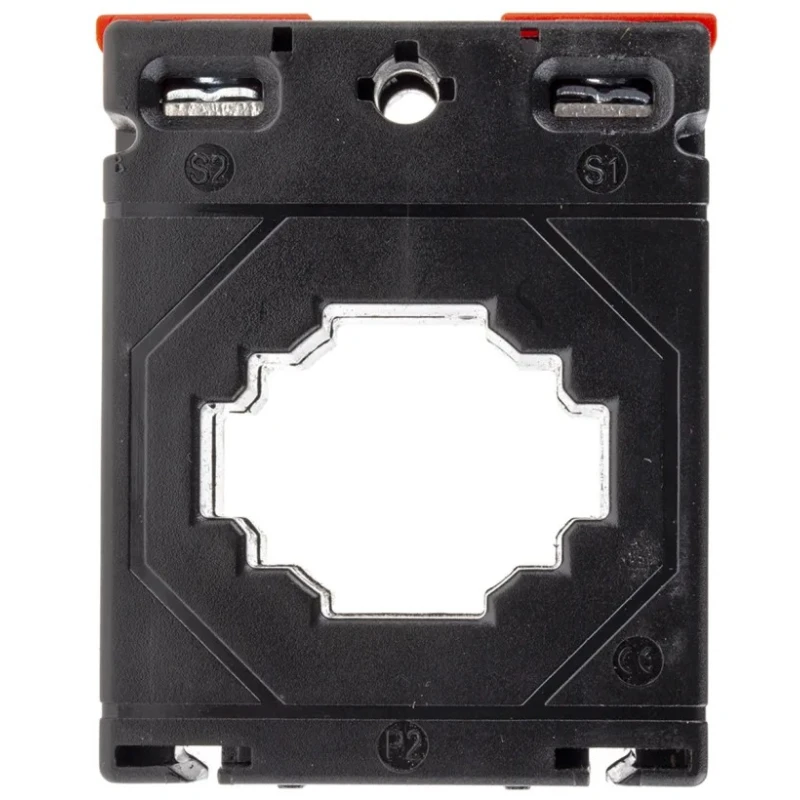

RS PRO Current Transformer 150 A 40mm Bore Surface Mount with Wire Terminals 171-8786
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Model | 171-8786 |
| Depth | 40mm |
| Width | 62mm |
| Mount Type | Surface Mount |
| Series | RS PRO |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -5°C |
| Bore Diameter | 40mm |
| Secondary current | 1, 5A |
| Terminal type | Wire |
| Primary Current | 150A |
| Minimum Operating Frequency | 50Hz |
| Maximum Operating Frequency | 60Hz |
| HOBUT CT173 Series Current Transformer 150 A 40mm BoreBrand | HOBUT |
Key Features
- Encapsulated square type current transformer with polycarbonate casing.
- Sealable wire terminal covers for secure connections.
- Wide operating temperature range from -5°C to 55°C.
- Class accuracy 0.2 and 0.2s available for precise measurement.
- Fits 40mm bore diameter applications on bus bars.
- Suitable for surface mounting with multiple mounting options.
- Complies with IEC 60044-1, UL94V-0, IEC 61869-1, and IEC 61010-2 standards.
- Designed for 50 to 60 Hz operating frequency range.
Product Description
RS PRO 171-8786 Current Transformer 150 A 40mm Bore is a square-type, encapsulated metering CT featuring a robust polycarbonate body and sealable wire terminal covers. It offers a wide primary current rating of 150 A and is designed for high precision with accuracy classes of 0.2 and 0.2s. The CT is engineered for surface mount installation and is compatible with bus bars of 40 mm bore diameter.
This current transformer operates efficiently within a temperature range of -5°C to 55°C and supports operating frequencies from 50 Hz up to 60 Hz. It meets stringent international standards including IEC 60044-1, UL94V-0, IEC 61869-1, and IEC 61010-2, ensuring safety and reliability in industrial, commercial, and process control applications.
Typical applications include use in electrical automation, process control, power monitoring, and metering systems. The mounting versatility allows cable, bus bar, wall, or DIN rail configurations, making it suitable for installation in varied electrical environments.
Encapsulated square polycarbonate design ensures robustness and durability. Sealable wire terminal covers provide secure electrical connections and protect against tampering. Wide operating temperature and frequency ranges suit diverse industrial environments.
High accuracy ratings enable precise current monitoring and control. Multiple mounting options including surface mount increase installation flexibility. Compliance with international standards guarantees quality and safety.
Compact size with a 40mm bore diameter fits standard bus bars efficiently. Ideal for use in electrical, automation, process control, and HVAC systems.
RS PRO Current Transformers are trusted components within industrial and laboratory setups requiring reliable current measurement and monitoring solutions. This 171-8786 model maintains consistent performance and safety whilst being cost effective.
Explore our range of Current Transformers and electrical components at EnvMart for trusted quality and availability.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This current transformer has a primary current rating of 150 A.
It is designed to fit a bore diameter of 40 mm, making it suitable for standard bus bars.
The operating temperature range is from -5°C to 55°C.
This current transformer offers accuracy classes of 0.2 and 0.2s for precise measurement.
It is designed for surface mount installation, providing multiple mounting options.
This current transformer supports operating frequencies from 50 Hz to 60 Hz.
It features wire terminals for secure electrical connections.
The dimensions are 40 mm in depth and 62 mm in width.
It complies with IEC 60044-1, UL94V-0, IEC 61869-1, and IEC 61010-2 standards.
It features a robust polycarbonate casing for durability and protection.
It is suitable for applications in electrical automation, process control, power monitoring, and metering systems.
The secondary current output options are 1 A and 5 A.
