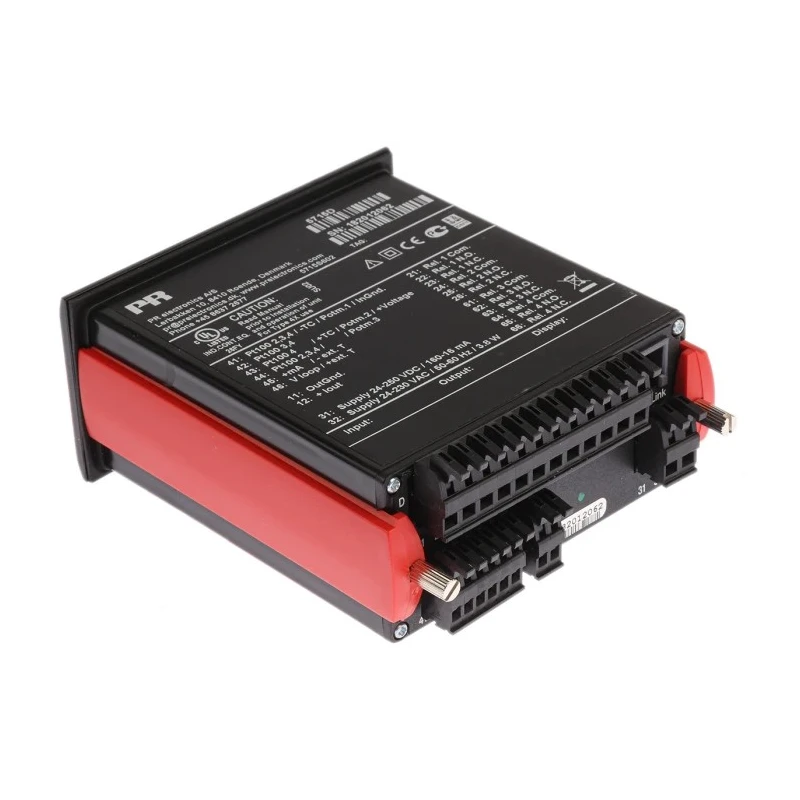

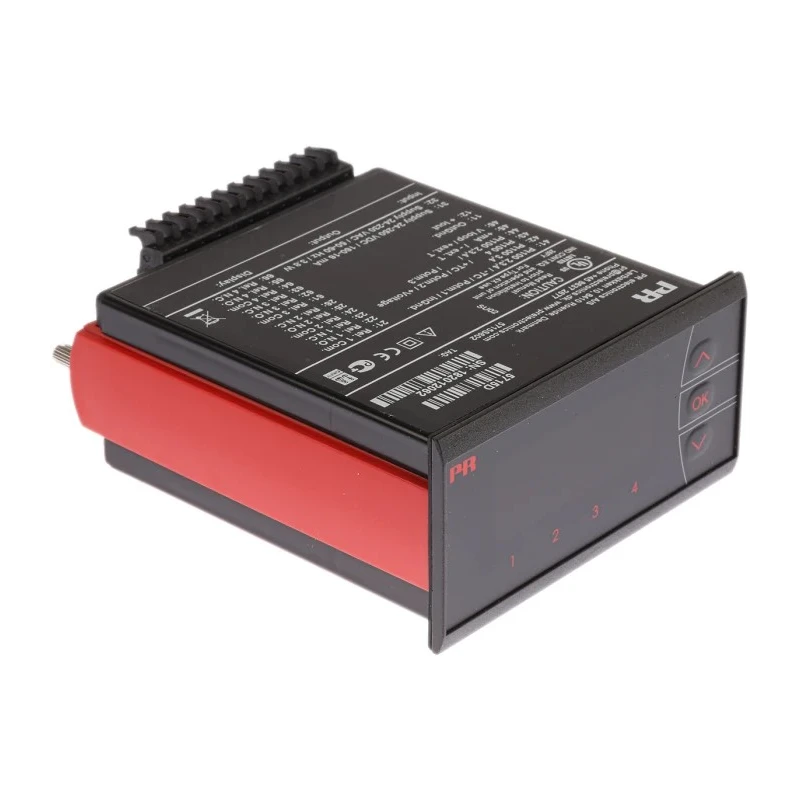

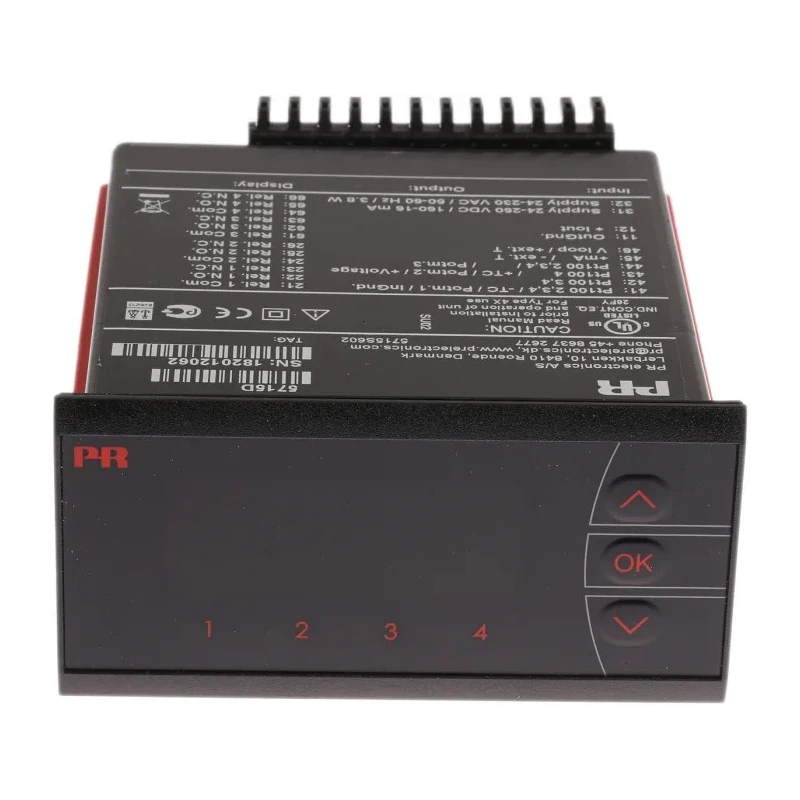

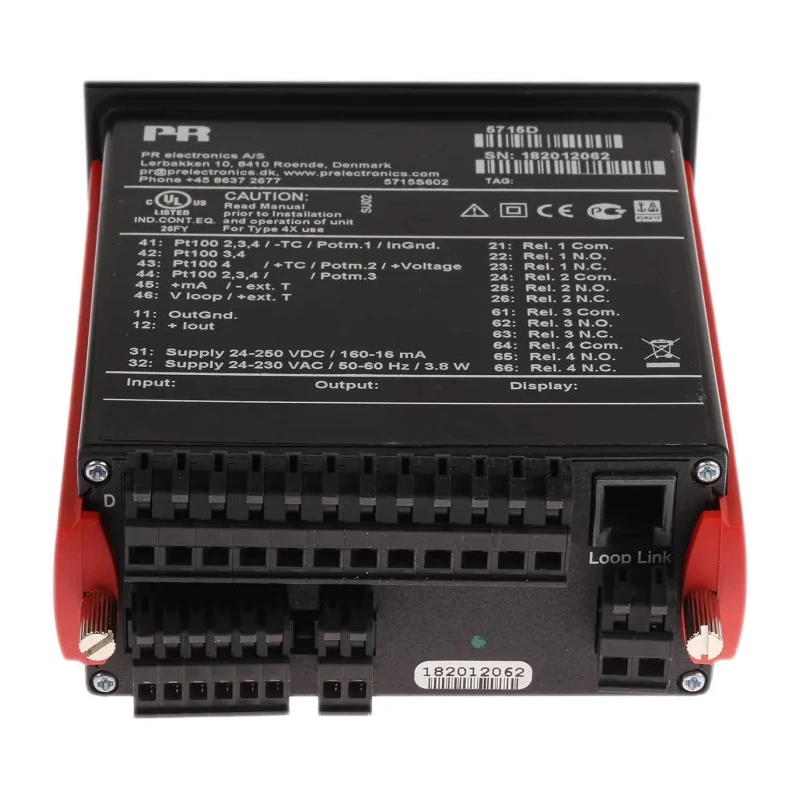

PR Electronics 5700 Range Programmable LED Multi-Function Panel Meter 4-Digit Display Current, Resistance, Voltage 5715D

Free Delivery in India | Lowest Global Shipping Charges

PR Electronics 5700 Range Programmable LED Multi-Function Panel Meter 4-Digit Display Current, Resistance, Voltage 5715D

Name: PR Electronics 5700 Range Programmable LED Multi-Function Panel Meter 4-Digit Display Current, Resistance, Voltage 5715D
Brand: PR Electronics
SKU: 372372
Price: 585.45 USD
Availability: InStock



Category Multi-Function Panel Meter Brand PR Electronics Condition New

Specifications

Country of Origin	Denmark
Display Type	LED
Brand	PR Electronics
Model	5715D
Depth	120mm
Series	5700
Maximum Operating Temperature	60°C
Meter Type	Programmable LED
Number Of Digits	4
Minimum Operating Temperature	-20°C
Digit height	13.8mm
Interfaces	languages
Properties Measured	Current, Resistance, Voltage, Potentiometer Signal, Temperature
Cutout Height	44.5mm
Cutout Width	91.5mm
Maximum Measurement	12 V

Key Features

The meter offers a 4-digit LED display with 14-segment digits for clear readings.
It supports universal input signals for various process parameters, improving versatility.
Configuration is user-friendly via PC, DIP switches, or front panel buttons.
Designed for panel front mounting with IP65 protection using included rubber packing.
Operates reliably across temperatures from -20°C to 60°C for robust industrial use.
Meets international standards including EN 61010-1, EN 61326-1, GOST R, and UL 508 certifications.
Includes four relays and analogue output for extensive control capabilities.
Multiple language help texts facilitate easy operation across diverse user bases.

Product Description

PR Electronics 5715D is a flexible, programmable LED multi-function panel meter designed for precise measurement of current, resistance, voltage, potentiometer signals, and temperature. It features a 4-digit, 14-segment LED display with digit height of 13.8mm, ensuring clear visibility of process values.

This meter accommodates universal input and supply systems and can measure signals up to a maximum of 12 V. Its programmable nature allows configuration via PC software, DIP switches, or built-in push buttons, enabling fast deployment in various industrial and process control applications.

The unit is designed for panel front mounting; the supplied rubber packing is essential to achieve an IP65 protection rating to guard against dust and water ingress. For harsher environments, an accessory splash-proof cover is available separately.

The operating temperature ranges from -20°C to 60°C, providing reliable operation in demanding industrial settings. Compliance with standards like EN 61010-1, EN 61326-1, GOST R, and UL 508 ensures safety and interoperability within certified installations.

The meter’s 4-digit LED display delivers accurate digital readouts of multiple signal types. Four relay outputs and analogue output provide comprehensive signal control options. User-configurable inputs and settings promote versatility for varied automation needs.

Installation simplicity and mounting hardware support quick integration into control panels. Robust performance in industrial environments with proven durability and stability. Built-in help texts in eight languages enhance user accessibility and operational ease.

Ideal for industrial automation, process control, and monitoring applications in manufacturing, HVAC, and electrical systems, the PR Electronics 5715D multi-function panel meter facilitates precise and reliable process parameter measurement and display.
