Lascar PanelPilotACE TFT Multi-Function Panel Meter for Voltage and Current Measurement SGD 43-A-DK+

Lascar SGD 43-A-DK+ PanelPilotACE TFT Multi-Function Panel Meter is a digital meter specifically engineered for precise voltage and current measurement in industrial and automation applications. Featuring a vibrant 4.3 inch colour TFT screen with capacitive touch functionality, this instrument allows responsive and user-friendly operation.

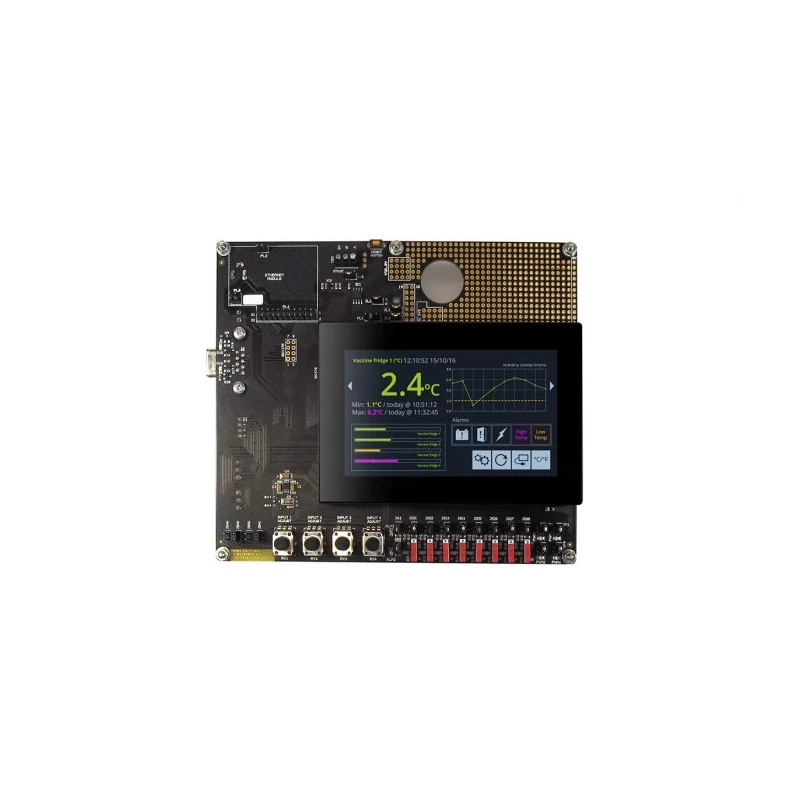

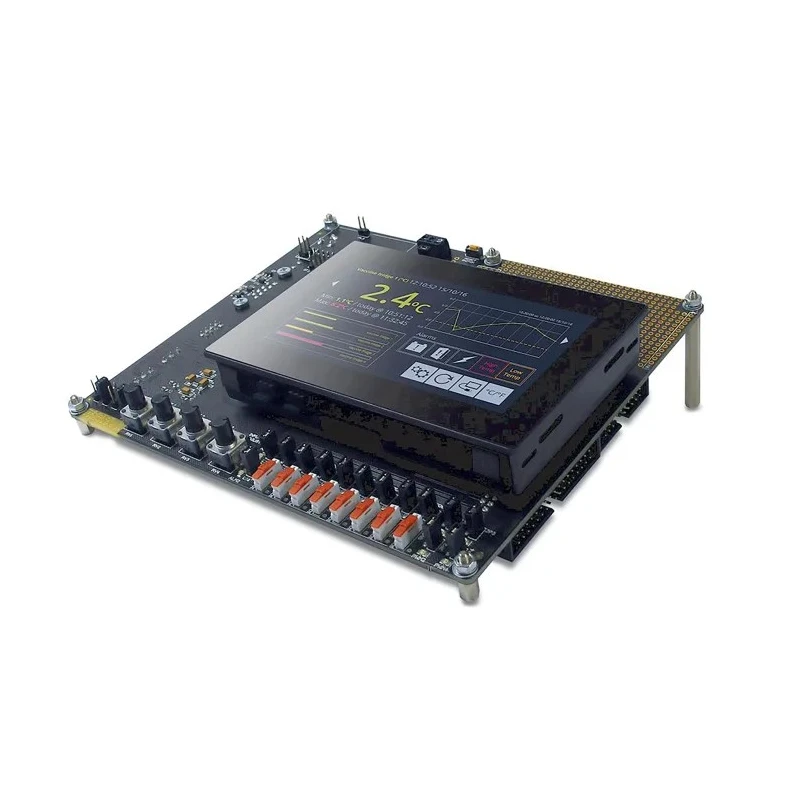

The included development kit comprises the SGD 43-A display integrated with a prototyping board that provides multiple input/output features such as labeled switches, dials, LEDs, and screw terminal connections. This facilitates quick connection and testing of all functionalities, accelerating development cycles.

Communication with other devices is supported through standard interfaces including RS-232, I²C, and SPI, enabling integration into broader control and monitoring systems. Programmable PWM and digital output controls expand operational versatility.

The meter supports 4 single-ended bipolar inputs capable of measuring voltage signals up to ±40 V DC. Its design includes straightforward screw terminal connections and simple panel mounting options, helping ease physical installation and maintenance.

Powered by USB or a 2.1mm DC power supply, the device accommodates flexible power options. The operating temperature range of 0°C to 40°C covers common industrial ambient conditions.

This Multi-Function Panel Meter is suited for use in industrial process control, electrical automation, manufacturing instrumentation, and laboratory measurement contexts. Its robust digital measurement capabilities and development kit features enable comprehensive evaluation and deployment.

Features a 4.3 inch colour TFT display for clear readings. Supports measurement of voltage and current with four bipolar inputs of ±40 V DC range. Includes resistive capacitive touchscreen for intuitive operation. Offers PWM and digital output controls programmable via USB interface.

Equipped with screw terminal connections and simple panel mounting design. Communication options include RS-232, I²C and SPI interfaces. Comes with development board featuring switches, dials, LEDs and screw terminals for testing.

Power supplied via USB or standard 2.1 mm DC power connector. Designed for easy prototyping with free area on development board for customized circuitry. Operating temperature range is 0°C to 40°C suitable for typical industrial environments.
