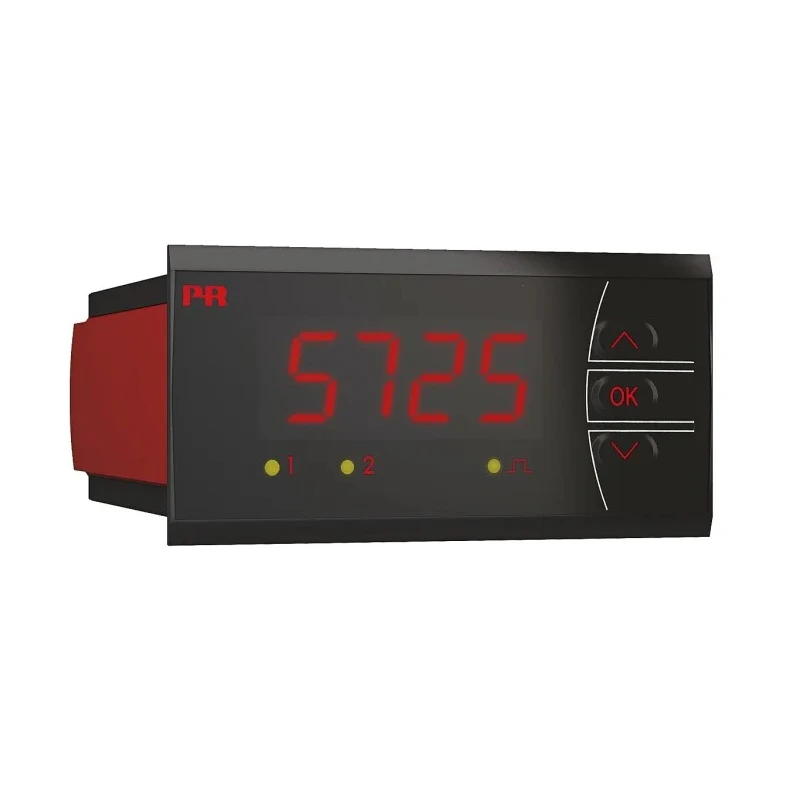

PR Electronics 5700 Programmable Frequency Indicator Multi-Function Panel Meter, LED Display, 44.5 mm x 91.5 mm, Model 5725D

PR Electronics 5725D is a programmable frequency indicator designed as a multi-function panel meter with a 4-digit LED display measuring frequency signals with high precision. Its compact panel cutout size of 44.5 mm by 91.5 mm and depth of 120 mm facilitates integration in industrial automation systems.

This frequency indicator can measure frequency, period, and elapsed time between events, making it ideal for process speed and flow rate monitoring in industrial environments. It features two SPDT relays and an analog output for enhanced control.

The LED display is bright and easily readable, featuring 14 segments. The device complies with NAMUR NE21 recommendations, ensuring superior electromagnetic compatibility suitable for harsh industrial conditions. It is fully programmable via push buttons and protected by a password to safeguard settings.

With an operating temperature range from -20°C to 60°C, the 5725D is rated IP65, offering dust-tight and water-resistant protection. An optional splash-proof cover is available for extra durability, including marine approvals.

The instrument includes a built-in excitation source compatible with various sensor types such as NPN, PNP, NAMUR, and S0 sensors. Customizable trigger levels provide flexibility in pulse sensor measurement.

The meter is certified under standards EN 61010-1, EN 61326-1, GOST R, and UL 508, ensuring safety and performance in industrial applications. Originating from Denmark, the 5725D delivers reliable frequency measurement for sectors including industrial automation, process control, manufacturing, and HVAC systems.

Features a clear 4-digit, 14 segment LED display for easy readability. Measures frequency signals in process speed and flow rate applications accurately. Built-in dual SPDT relays and analog output enhance functionality.

Push button programmability with password protection ensures secure operation. Meets NAMUR NE21 for high EMC performance in harsh industrial environments. IP65 rated protection with optional splash-proof cover for marine and industrial use.

Supports NPN, PNP, NAMUR, and S0 sensors with built-in excitation source. Customizable trigger levels allow compatibility with numerous pulse sensor types. Operates reliably between -20°C and 60°C with compliance to EN 61010-1, EN 61326-1, GOST R, and UL 508 standards.
