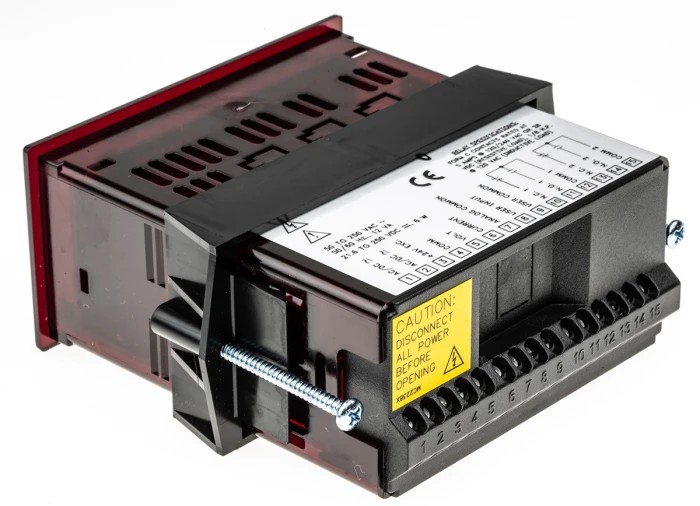

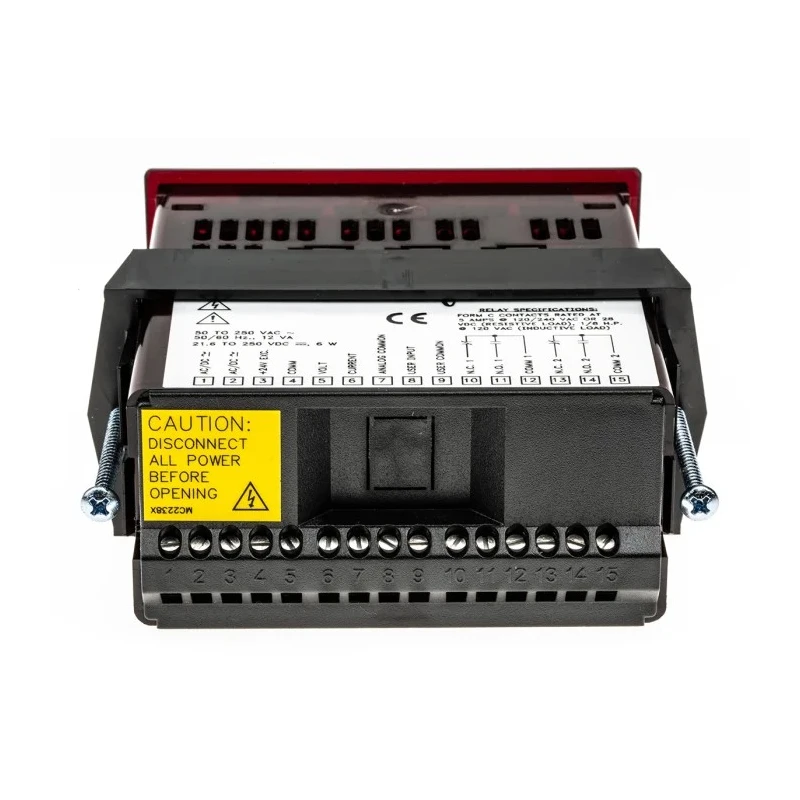

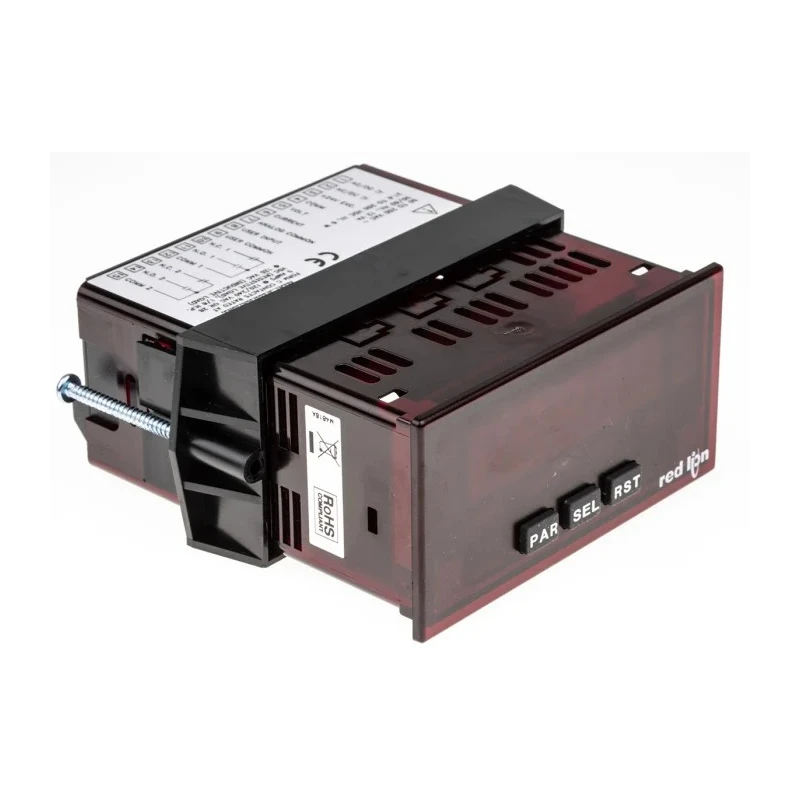

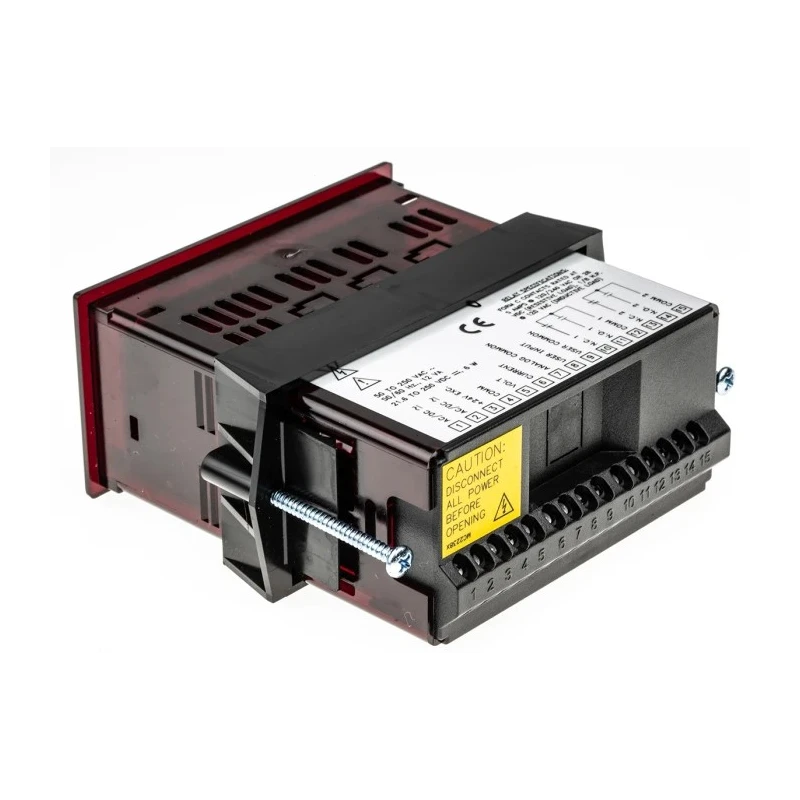

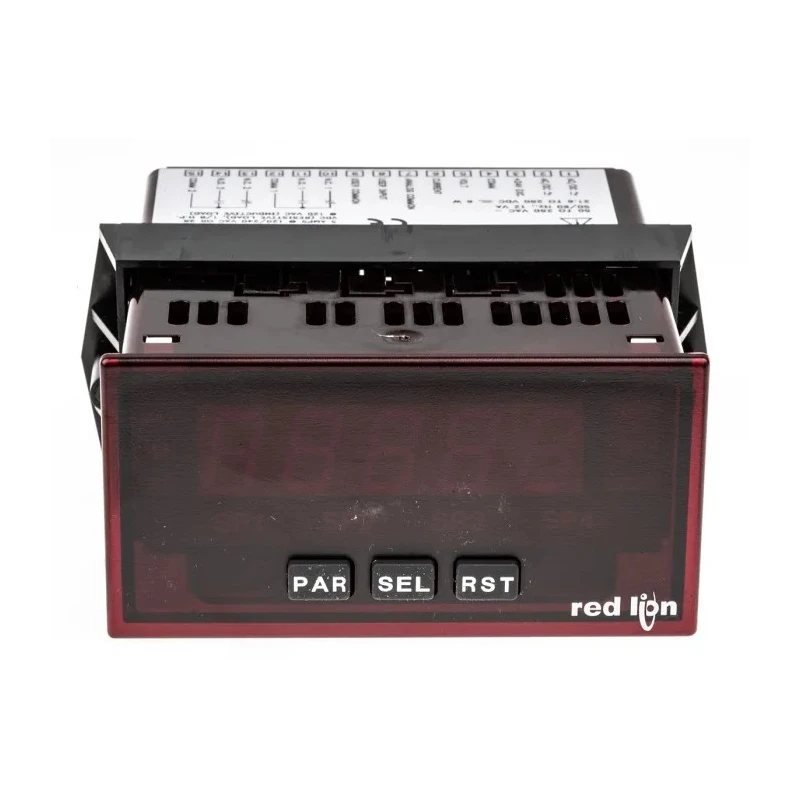

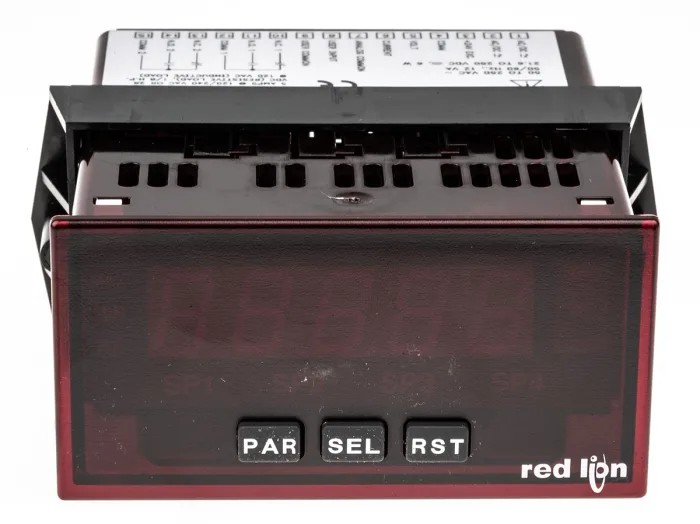

Red Lion LED Digital Panel Multifunction Meter for Current, Voltage, 45 mm x 92 mm PAXLA000
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | LED |
| Brand | Red Lion |
| Model | PAXLA000 |
| Depth | 104.1mm |
| Series | PAXLA |
| Maximum Operating Temperature | 50°C |
| Meter Type | Electronic |
| Number Of Digits | 5 |
| Minimum Operating Temperature | 0°C |
| Digit height | 14.2mm |
| Standards/Approvals | CE Certified, cUL Recognized, UL Approved |
| Properties Measured | Current, Voltage |
| Cutout Height | 45mm |
| Cutout Width | 92mm |
| Minimum Measurement | -19999 |
| Maximum Measurement | 99999 |
Key Features
- The meter features programmable scaling and decimal points for precise readings.
- It includes dual 5 amp form C relay outputs for flexible control applications.
- The front panel is NEMA 4X/IP65 sealed, providing protection against dust and moisture.
- The display digits are 14.2 mm high, ensuring clear visibility.
- Programmable user input and relay control enhances customization options.
- Operating temperature ranges from 0°C to 50°C, suitable for various industrial environments.
- It includes minimum and maximum display capture capabilities.
- The meter is universally powered and features a red LED display for readability.
Product Description
Red Lion PAXLA000 is a versatile LED Digital Panel Multifunction Meter for measuring current and voltage in industrial automation applications. It is designed for panel mounting with precise cutout dimensions of 45 mm height and 92 mm width, and a depth of 104.1 mm, making it suitable for compact control panels.
The multifunction meter provides a clear 5-digit red LED display with 14.2 mm digit height for enhanced visibility and user-friendly interface. It offers programmable scaling and decimal points for accurate measurement tailored to specific application requirements.
Equipped with dual 5 amp form C relays, the PAXLA000 allows flexible control outputs. The meter front panel buttons enable easy configuration and can be locked to prevent unauthorized changes after setup. Additionally, the unit includes minimum and maximum display capture, enabling operators to monitor extremes easily.
The meter operates reliably within a temperature range of 0°C to 50°C and features a NEMA 4X/IP65 sealed front bezel, ensuring resistance to dust and moisture ingress, ideal for demanding industrial and manufacturing environments.
The PAXLA000 multifunction meter complies with CE certification, cUL recognition, and UL approval standards, assuring quality and safety. Manufacture is based in the United States, maintaining strict production controls.
The meter measures current and voltage with 5-digit LED display. Provides programmable scaling and dual relay outputs. Sealed front bezel ensures dust and moisture protection. Front panel programming with lock feature enhances security.
Minimum and maximum display captures facilitate operational monitoring. Universal power supply compatibility. Operating temperature suitable for industrial environments. Certified to CE, cUL, and UL standards. Compact size fits 45 mm x 92 mm panel cutouts.
Constructed and tested in the United States.
This multifunction panel meter is ideal for use in industrial automation, manufacturing process control, electrical panels, and laboratory instrumentation. It enhances accuracy and control capabilities in challenging environments.
Explore more automation and control gear at EnvMart for quality assured industrial equipment and solutions.
Explore more products in our Multi-Function Panel Meter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The PAXLA000 can measure values from -19999 to 99999 for both current and voltage.
It features a 5-digit LED display with a digit height of 14.2 mm, ensuring clear visibility.
The cutout dimensions required for panel mounting are 45 mm in height and 92 mm in width, with a total depth of 104.1 mm.
The operating temperature range for the PAXLA000 is from 0°C to 50°C, making it suitable for various industrial environments.
Yes, it includes dual 5 amp form C relay outputs for flexible control applications.
The PAXLA000 is CE certified, cUL recognized, and UL approved, ensuring compliance with safety standards.
The front panel features buttons for easy configuration and can be locked to prevent unauthorized changes after setup.
It measures both current and voltage, making it versatile for various applications in industrial automation.
The NEMA 4X/IP65 rating indicates that the front panel is sealed against dust and moisture, suitable for demanding environments.
Programmable scaling allows for precise readings tailored to specific application requirements, enhancing measurement accuracy.
This multifunction meter is manufactured in the United States, ensuring strict production controls.
It is ideal for use in industrial automation, manufacturing process control, electrical panels, and laboratory instrumentation.
