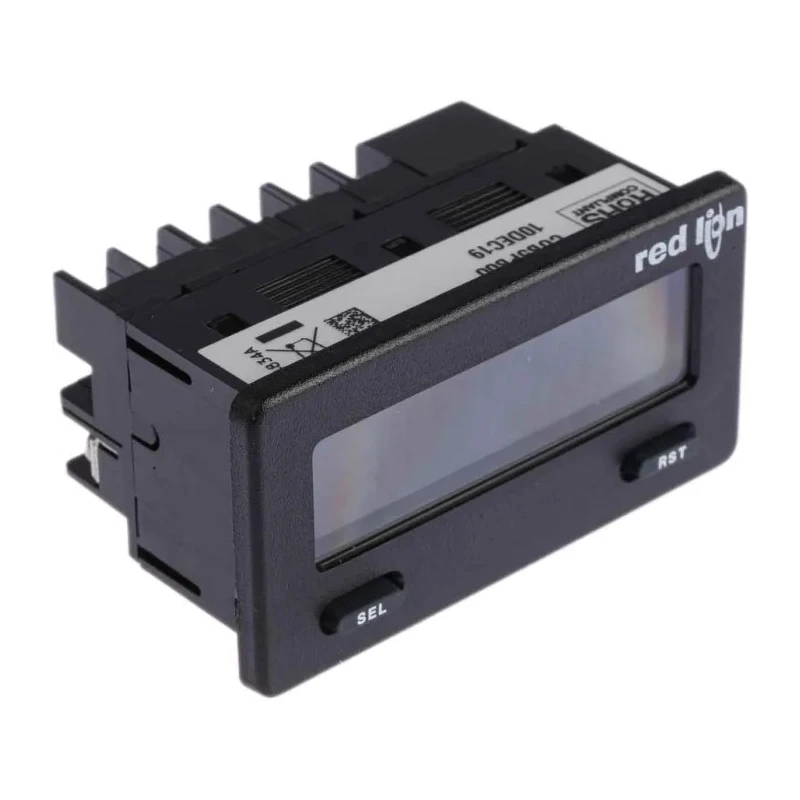

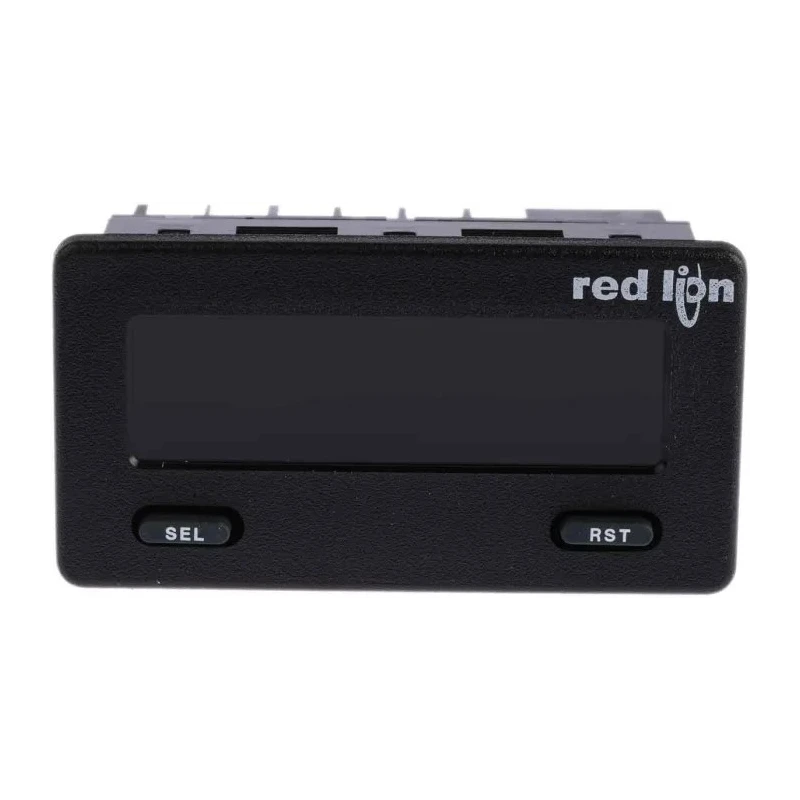

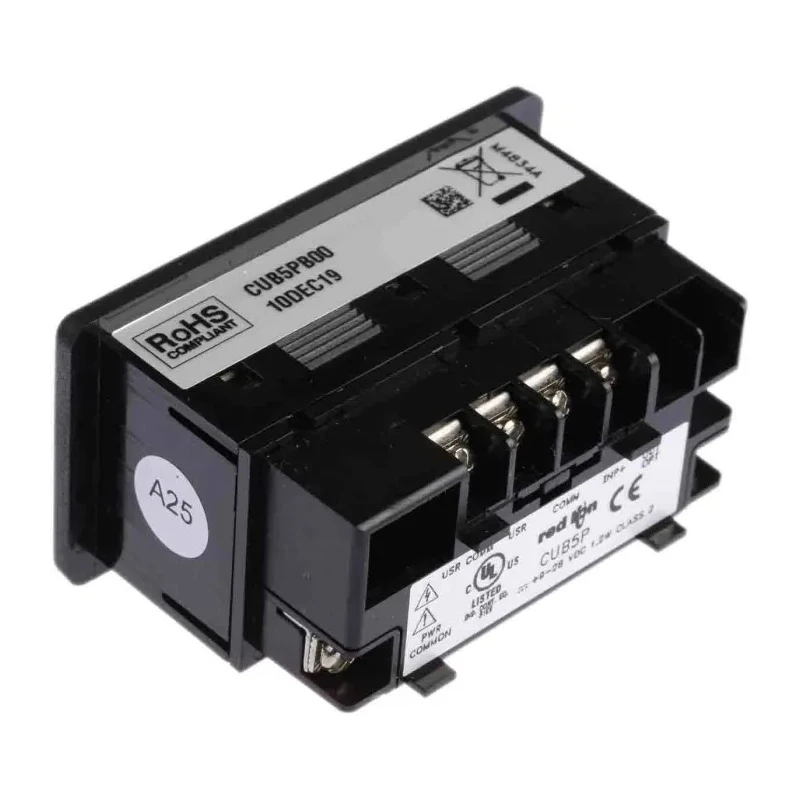

Red Lion Digital Panel Multifunction Meter for Voltage and Current with LCD Display, Cutout 32.8 mm x 68 mm CUB5
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | LCD |
| Brand | Red Lion |
| Model | CUB5 |
| Depth | 43.4mm |
| Series | CUB5 |
| Maximum Operating Temperature | 75°C |
| Meter Type | Digital |
| Number Of Digits | 5 |
| Minimum Operating Temperature | -35°C |
| Digit height | 12.2mm |
| Standards/Approvals | cULus, CE |
| Properties Measured | Voltage, Current |
| Cutout Height | 32.8mm |
| Cutout Width | 68mm |
Key Features
- Equipped with a 5-digit LCD featuring 12.2 mm high digits for clear readability.
- Measures multiple electrical properties including voltage and current with selectable DC ranges.
- Robust front bezel with NEMA 4X IP65 rating ensures durability in industrial environments.
- Operates within a temperature range of -35°C to 75°C for versatile applications.
- Simple screw clamp terminal connections for reliable wiring.
- User-selectable red backlight with adjustable intensity for enhanced visibility in diverse lighting.
- Supports option cards for setpoint programming and serial communications via RS232/RS485.
- Compact design with cutout dimensions of 32.8 mm x 68 mm and depth of 43.4 mm.
Product Description
Red Lion CUB5 Digital Panel Multifunction Meter offers accurate and reliable voltage and current measurements suited for industrial, laboratory, and process control applications. Featuring a high-contrast 5-digit LCD with 12.2 mm digit height and user-configurable red backlight, it delivers excellent visibility even in challenging environments.
The meter includes three selectable DC input ranges (0V to 10V, 0 mA to 20 mA, and 0 mA to 50 mA) and built-in automatic offset correction for precise readings. Wiring is secured through screw clamp terminals, providing dependable connections.
The instrument operates in extreme temperature conditions from -35°C to 75°C, making it versatile across diverse industrial settings. It provides a cutout size of 32.8 mm x 68 mm and a compact depth of 43.4 mm for easy panel integration. The front panel possesses a rugged NEMA 4X IP65 sealed bezel, ensuring resistance to dust and water ingress.
Expandable via optional setpoint output cards and serial communication modules (RS232/RS485), the CUB5 meter offers flexible customization tailored to varied automation needs. Clear 5-digit LCD with 12.2 mm high digits and adjustable red backlight.
Multiple electrical properties measured: voltage and current with scalable DC ranges. Rugged front panel meeting NEMA 4X and IP65 protection standards. Wide operating temperature range from -35°C to 75°C for industrial resilience.
Easy and secure electrical connection via screw clamp terminals. Expandable functionality with optional setpoint and communication cards. Compact dimensions streamline panel mounting and installation. Certified and compliant with cULus, CSA, and CE standards.
Manufactured in the United States ensuring quality and reliability.
This meter is ideal for industrial automation, process control, electrical monitoring, laboratory instrumentation, and other demanding environments where precise voltage and current monitoring is critical. It supports a broad range of applications including manufacturing process control, HVAC systems, water treatment plants, and electrical test benches.
Explore more industrial-grade panel meters and control systems at EnvMart to find products that meet your precise measurement and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It measures voltage and current with selectable DC input ranges of 0V to 10V, 0 mA to 20 mA, and 0 mA to 50 mA.
This model operates within a temperature range of -35°C to 75°C, suitable for various industrial applications.
It features a high-contrast LCD display with 5 digits, where each digit is 12.2 mm high for clear readability.
The cutout dimensions required for installation are 32.8 mm in height and 68 mm in width.
Wiring is secured through screw clamp terminals, providing reliable and dependable connections.
The front panel has a NEMA 4X IP65 rating, ensuring resistance to dust and water ingress.
It is certified and compliant with cULus, CSA, and CE standards.
Yes, it supports optional setpoint output cards and serial communication modules (RS232/RS485) for customization.
The depth of this model is 43.4 mm, allowing for compact panel integration.
It measures multiple electrical properties including voltage and current.
This meter is suitable for industrial automation, process control, electrical monitoring, and laboratory instrumentation.
It is manufactured in the United States, ensuring quality and reliability.
