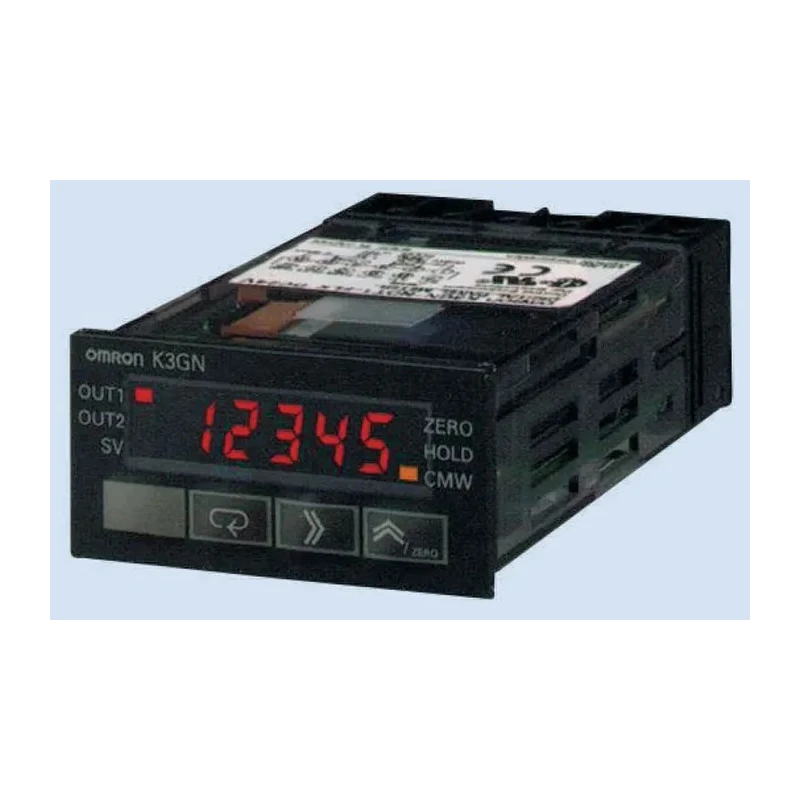

Omron LCD Digital Panel Multifunction Meter for Current and Voltage 22 mm x 44.8 mm K3GN

Omron K3GN LCD Digital Panel Multifunction Meter offers an advanced solution for measuring current and voltage in various industrial and automation processes. The device features a clear, backlit 7 mm high LCD that displays five digits, allowing meter readings ranging from -19999 up to 99999 for detailed monitoring.

This meter is highly configurable with multiple analog input options including 4 - 20mA, 0 - 20mA, and voltage modes up to ±10V d.c., making it versatile for wide engineering applications. It operates reliably on a 24V d.c. supply.

The device supports non-voltage and open collector inputs designed to interface with sensors, encoders, and pulse inputs within frequencies from 0.05 to 30Hz and 0.1 to 5000Hz, offering flexible connectivity for complex control systems.

Accuracy is maintained at ±0.1% Full Scale, ensuring precise measurement critical for process control environments. Its front panel construction meets NEMA 4 (IP66) standards, providing robust protection against dust and water, suitable for harsh industrial settings.

The multifunction meter includes a programmable display that changes color to indicate output activation or deactivation, improving operator awareness and control. Its panel cut-out size of 45 x 22.2 mm and overall dimensions of 22 mm height by 44.8 mm width by 83 mm depth fit standard installations easily.

This product complies with CE standards for noise and emissions and is UL and CSA approved, ensuring reliability and safety in industrial applications. It is suitable for industrial, laboratory, manufacturing, automation, and process control applications requiring accurate current and voltage measurements.

Features a backlit 7 mm high 5-digit LCD display allowing readings from -19999 to 99999. Configurable analog inputs include 4 - 20mA, 0 - 20mA, 1 - 5V d.c., -5 to +5V d.c., and -10 to +10V d.c. for versatile engineering input scaling.

Operates on a 24V d.c. supply voltage suitable for industrial control systems. Equipped with non-voltage and open collector inputs supporting sensors, encoders, and pulse inputs from 0.05 to 30Hz and 0.1 to 5000Hz. High accuracy of ±0.1% Full Scale ensures reliable and precise measurements.

Front panel is protected to NEMA 4 (IP66), providing resistance against dust and water ingress. Programmable color-changing display enhances visibility during output activation or deactivation. Compact panel cut-out dimensions of 45 x 22.2 mm facilitate easy mounting.

Complies with CE marking for noise and emissions regulations, with UL and CSA approvals. Explore more industrial automation and control products in our Digital Panel Multifunction Meter category at EnvMart for reliable, high-quality solutions.
