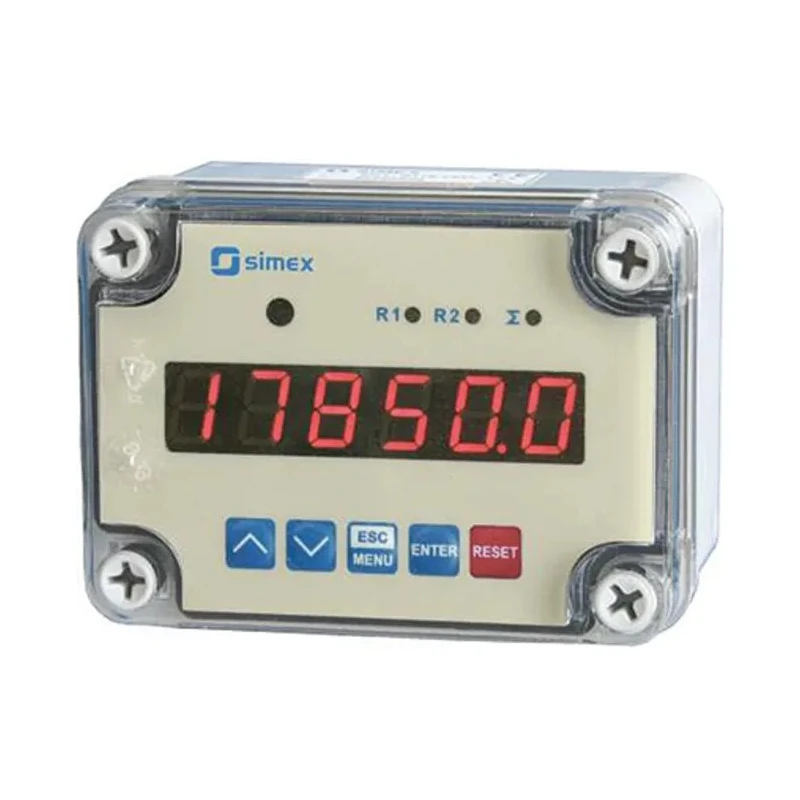

Simex LED Digital Panel Multifunction Meter for Voltage, Current SRP-N1186-1821-1-4-001
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LED |
| Brand | Simex |
| Model | SRP-N1186-1821-1-4-001 |
| Depth | 67mm |
| Series | SRP-N1186 |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 6 |
| Minimum Operating Temperature | 0°C |
| Digit height | 13mm |
| Standards/Approvals | CE |
| Properties Measured | Voltage, Current |
| Minimum Measurement | 0 mA, 0 V |
Key Features
- Features a 6-digit red LED display with 13mm digit height for clear readability.
- Measures voltage and current signals with digital precision.
- Robust IP67 rated housing suitable for harsh industrial environments.
- Equipped with 24 V dc/100 mA outputs to power measuring transducers.
- Includes RS485 communication port for data transmission in monitoring systems.
- Supports 2 relay outputs and configurable analogue outputs (active or passive).
- Wide range of characteristic curves including linear, square root, quadratic, and user-defined.
- Configuration available via IR remote controller and PC software (S-Config).
Product Description
Simex SRP-N1186-1821-1-4-001 LED Digital Panel Multifunction Meter is designed for precise measurement of voltage and current in industrial automation and process control systems. It features a large 6-digit red LED display with 13 mm digit height, ensuring clear visibility in various working conditions.
This multifunction meter supports measurement of typical current or voltage signals and offers a broad set of features such as analogue outputs that can be active or passive (0/4-20 mA, 0/1-5 V, 0/2-10 V inputs), making it adaptable to diverse industrial requirements.
The unit includes two relay outputs for switching purposes and provides 24 V dc/100 mA outputs to supply measuring transducers. The RS485 serial port enables reliable data communication using Modbus RTU protocol, facilitating integration into production process monitoring systems.

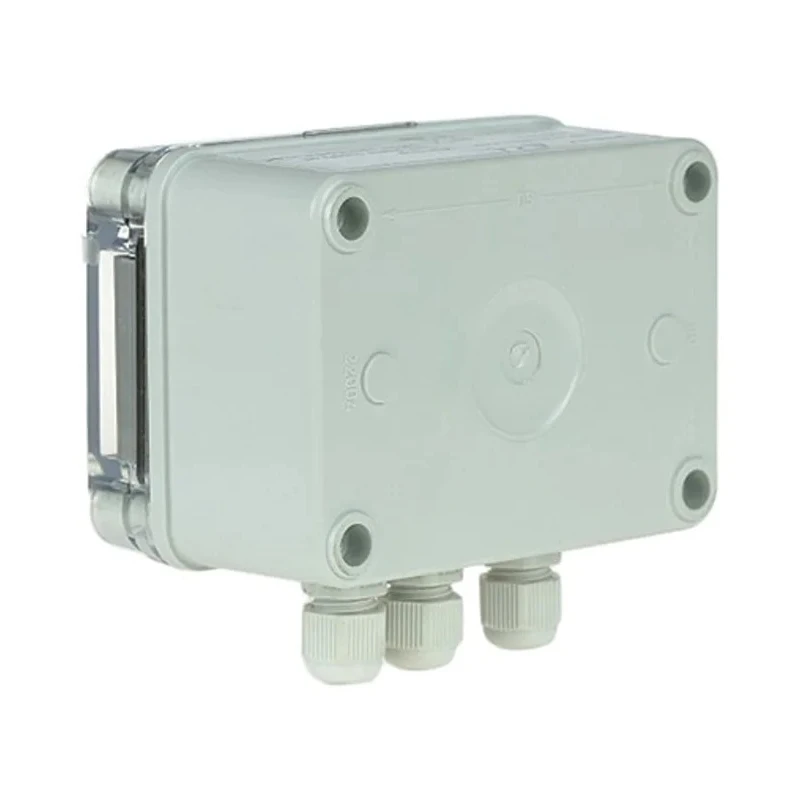

The IP67 rated enclosure protects the meter against dust and water ingress, ensuring durability and reliability in harsh industrial environments. Operating temperature ranges between 0°C to 50°C allow stable function under common industrial climates.
Users can configure the meter via an IR remote controller or free PC software (S-Config) to tailor measurement parameters including various characteristic curve types, such as linear, square root, quadratic, user-defined and volume calculation for cylindrical tanks.
This CE-certified digital meter supports applications in manufacturing, automation, HVAC systems, water treatment plants, and other industrial settings requiring accurate voltage and current monitoring.
Features a 6-digit red LED display with 13mm digit height for clear readability. Measures voltage and current signals with digital precision. Robust IP67 rated housing suitable for harsh industrial environments. Equipped with 24 V dc/100 mA outputs to power measuring transducers.
Includes RS485 communication port for data transmission in monitoring systems. Supports 2 relay outputs and configurable analogue outputs (active or passive). Wide range of characteristic curves including linear, square root, quadratic, and user-defined.
Configuration available via IR remote controller and PC software (S-Config). Operates within 0°C to 50°C ambient temperature range. Complies with CE standards and is designed for industrial process control applications. Explore more Digital Panel Multifunction Meters and related automation equipment at EnvMart for comprehensive industrial system solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model measures voltage from 0 V and current from 0 mA, providing precise readings for various industrial applications.
It features a 6-digit red LED display with a digit height of 13 mm, ensuring clear visibility in different working conditions.
The operating temperature range for this meter is between 0°C to 50°C, making it suitable for common industrial environments.
It includes an RS485 communication port that supports data transmission using the Modbus RTU protocol, facilitating integration into monitoring systems.
The unit supports two relay outputs for switching purposes and configurable analogue outputs that can be either active or passive.
It has an IP67 rated housing, which protects against dust and water ingress, suitable for harsh industrial environments.
Yes, it can be configured using an IR remote controller or through free PC software called S-Config, allowing users to tailor measurement parameters.
It complies with CE standards, ensuring it meets specific safety and performance criteria for electronic devices.
It is suitable for applications in manufacturing, automation, HVAC systems, and water treatment plants, where accurate voltage and current monitoring is required.
The depth of this model is 67 mm, which is important for installation in control panels or enclosures.
This model measures both voltage and current signals, providing versatility for various industrial measurement needs.
The country of origin for this product is Poland, indicating its manufacturing location.
