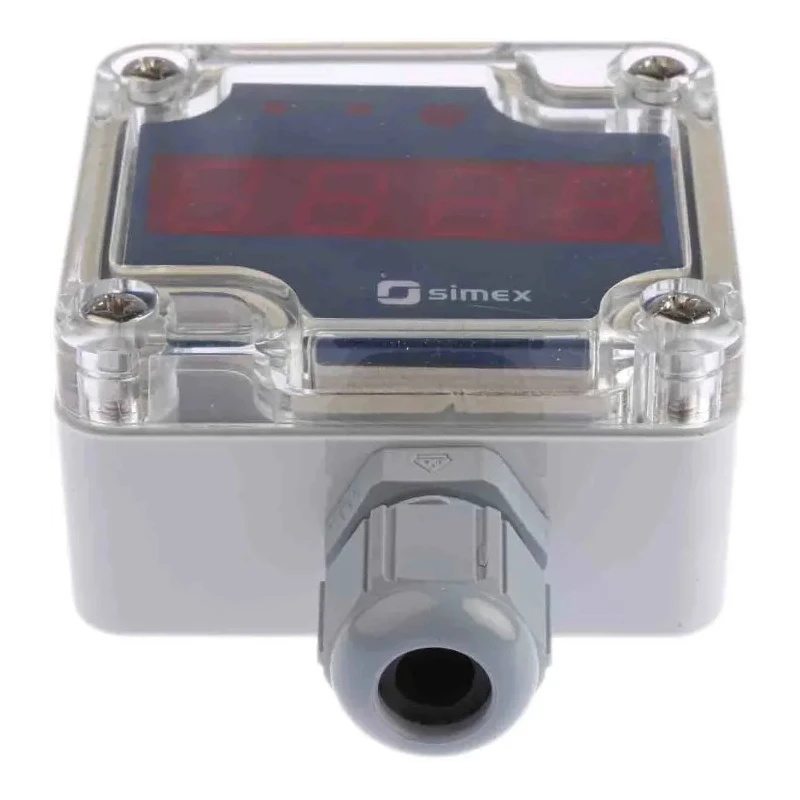

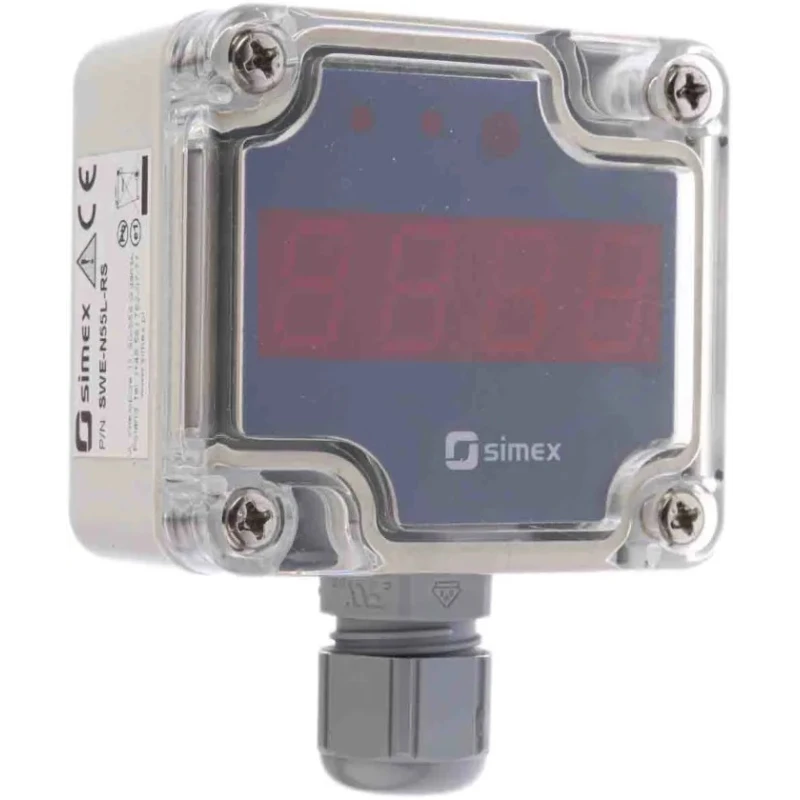

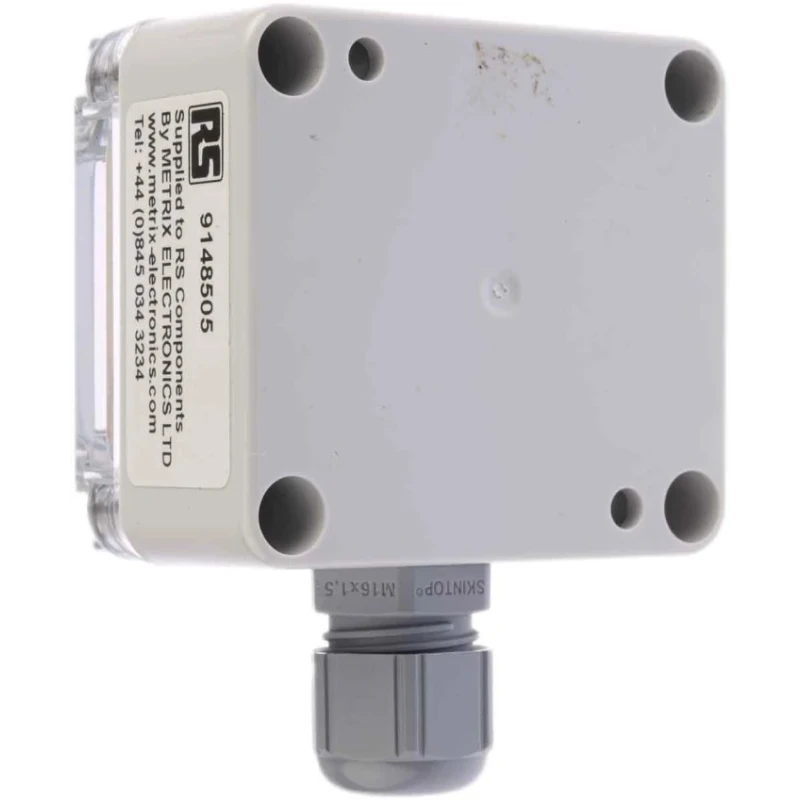

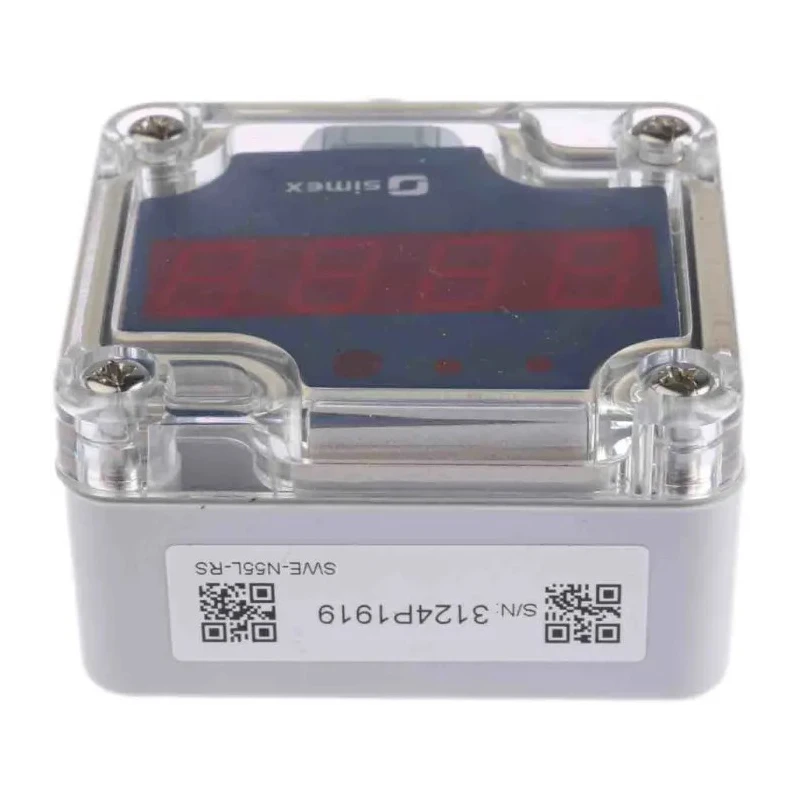

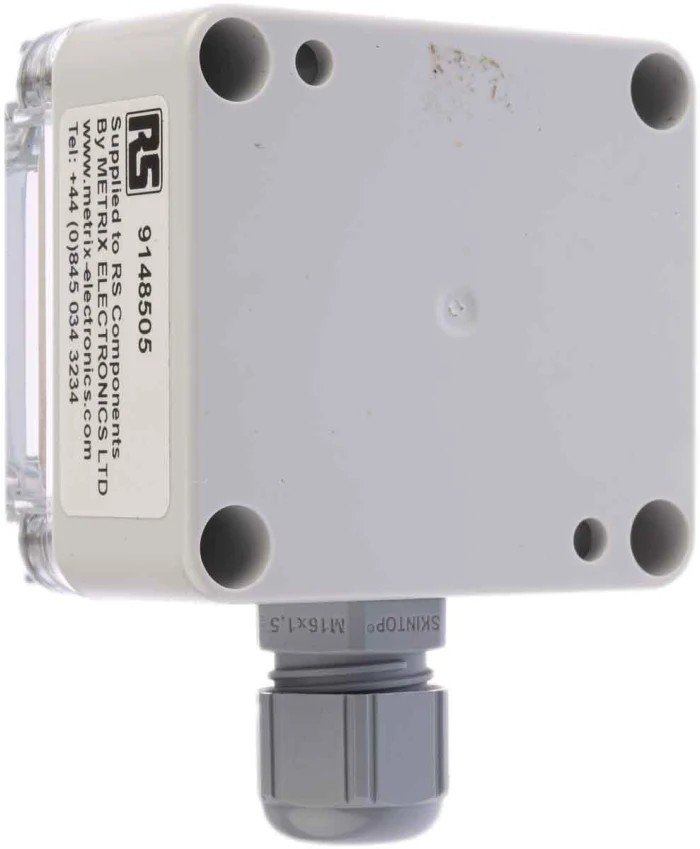

Simex Digital Panel Multifunction Meter LED Display 4-Digit Current Measurement SWE-N55L-1111-0-9-001
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LED |
| Brand | Simex |
| Model | SWE-N55L-1111-0-9-001 |
| Depth | 36mm |
| Series | SWE-N55L |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | 0°C |
| Digit height | 13mm |
| Standards/Approvals | CE |
| Properties Measured | Current |
| Minimum Measurement | 4 mA |
Key Features
- Loop-powered device suitable for 4-20 mA current inputs.
- 4-digit LED display with 13 mm character height for clear visibility.
- Selectable conversion characteristics include linear, square, square root, and user defined.
- Range from -999 to 9999 with decimal point support.
- Compact wall-mounted casing with IP65 protection.
- Operates within 0°C to 50°C temperature range.
- Optional alarm output available for monitoring peak values.
- Configuration via infrared remote controller for ease of use.
Product Description
Simex SWE-N55L-1111-0-9-001 is a high-precision digital panel multifunction meter designed for current measurement applications. Featuring a loop-powered design, this meter operates with a 4-20 mA current input that powers the device itself, eliminating the need for additional power sources. The 4-digit LED display with 13 mm digits ensures clear and readable output, suitable for various industrial and laboratory environments.
This multifunction meter offers flexibility in measurement conversions, allowing users to select from linear, square, square root, or user-defined characteristics, adapting to specific application needs. The display supports values ranging from -999 to 9999, including decimal precision to accommodate accurate readings.
Designed for durability, the meter comes in a small, wall-mounted enclosure with IP65 protection, making it suitable for challenging industrial conditions. With an operating temperature range from 0°C to 50°C, it is reliable for standard environmental conditions. An optional alarm output feature allows for peak values detection, enhancing monitoring capabilities.
Configuration is made simple through an infrared remote controller, enabling easy setup and adjustments without disassembling the unit. The product conforms to CE standards, guaranteeing compliance with essential safety and performance regulations.
Loop-powered indicator supports 4-20 mA current input. Selectable conversion types: linear, square, square root, user defined. 4-digit LED display with 13 mm digit height. Compact wall-mounted casing with IP65 protection.
Operating temperature range: 0°C to 50°C. Optional alarm output for peak value detection. Easy configuration via IR remote controller. Complies with CE standards for quality and safety.
This Simex Digital Panel Multifunction Meter is ideal for use in industrial automation, process control, electrical systems monitoring, and laboratory instrumentation environments that require accurate and reliable current measurement. Discover more industrial automation products at EnvMart, your trusted platform for high-quality instrumentation solutions.
