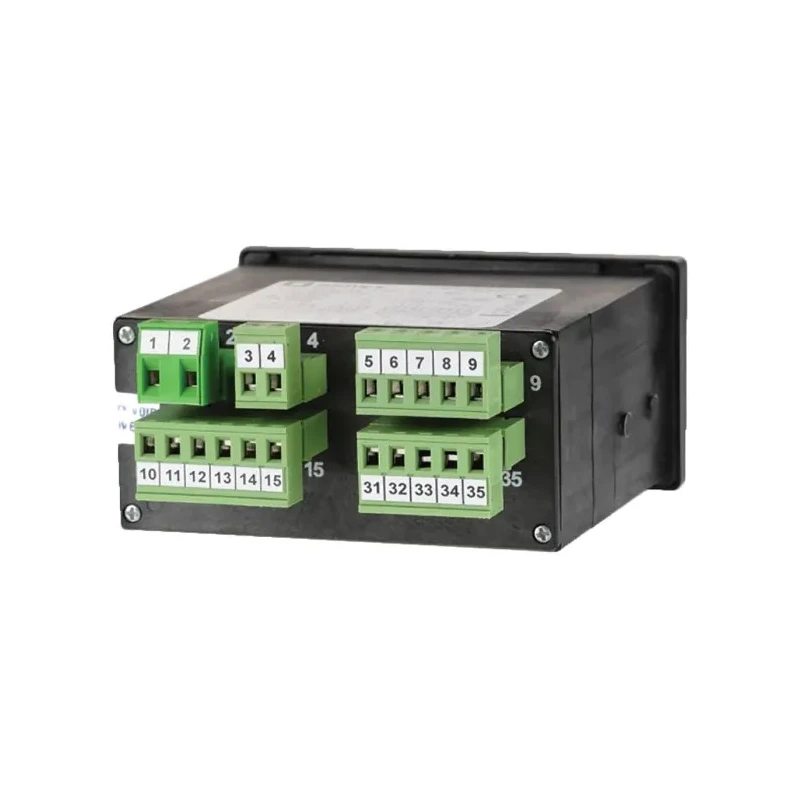

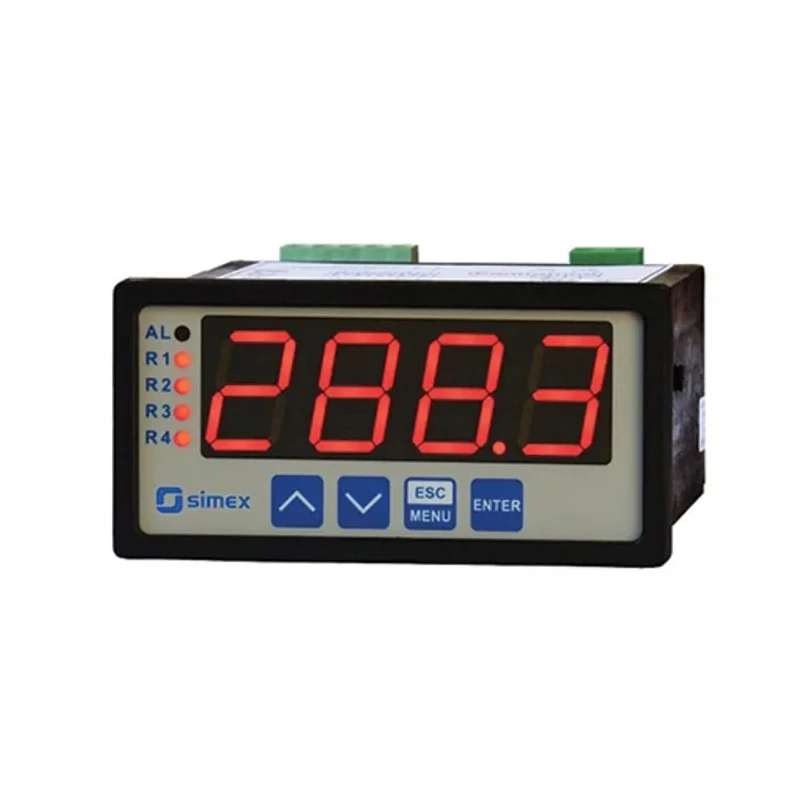

Simex Digital Panel Multifunction Meter with LED Display Measuring Current, Voltage, Temperature 43 mm x SUR-94-1J21-1-4-001
Specifications
| Country of Origin | Poland |
|---|---|
| Display Type | LED |
| Brand | Simex |
| Model | SUR-94-1J21-1-4-001 |
| Depth | 102mm |
| Series | SUR-94 |
| Maximum Operating Temperature | 50°C |
| Meter Type | Digital |
| Number Of Digits | 4 |
| Minimum Operating Temperature | 0°C |
| Digit height | 20mm |
| Analogue Output | active or passive power supply output: 24 V dc |
| Standards/Approvals | CE |
| Properties Measured | Current, Voltage, Temperature |
| Cutout Height | 43mm |
| Cutout Width | 90.5mm |
| Minimum Measurement | +250 (B Type) °C, -200 (E Type) °C, -200 (K Type) °C, -200 (N Type) °C, -200 (T Type) °C, -210 (J Type) °C, -50 (R Type) °C, -50 (S Type) °C, -100 °C, 0 mA, 0 V |
| Universal input | 0/4-20 mA, 0-10 V, 0-150 mV, RTD or TC |
| RND Connection Module, RND 205, 4 WayBrand | RND |
Key Features
- The meter features a 4-digit LED display with 20 mm digit height for clear readability.
- Universal input supports 0/4-20 mA, 0-10 V, 0-150 mV, RTD, or thermocouple signals.
- Equipped with two relay outputs and analogue 24 V dc power supply output.
- RS-485 Modbus RTU interface enables communication for process monitoring.
- Designed for operation from 0°C to 50°C with CE approval for quality assurance.
- The cutout dimensions are 43 mm height by 90.5 mm width for easy panel integration.
- Depth is 102 mm ensuring compact installation footprint.
- Supports multiple temperature measurement types with wide measurement ranges.
Product Description
Simex SUR-94-1J21-1-4-001 is a high precision Digital Panel Multifunction Meter designed for industrial process control applications. Featuring a large 4-digit LED display with 20 mm digit height, this meter measures current, voltage, and temperature reliably with universal input options including 0/4-20 mA, 0-10 V, 0-150 mV, thermocouples or RTDs.
The instrument automatically compensates for cold junction temperature for thermocouple measurements and linearizes RTD/TC inputs. Its wide range of characteristic curves - linear, square root, quadratic, user-defined, and volume characteristics for cylindrical tanks - allows it to adapt to various industrial measurement needs.
Equipped with two relay outputs and an analogue 24 V dc output to power transducers, it supports RS-485 Modbus RTU communication enabling integration with production process monitoring systems. The meter operates safely under ambient temperatures ranging from 0°C to 50°C and meets CE standards for quality assurance.
The compact, robust design includes panel cutout dimensions of 43 mm by 90.5 mm and a depth of 102 mm for convenient panel mounting. Configuration is user-friendly via local keyboard or the free S-Config software, enabling flexible setup tailored to application requirements.
Typical industrial use cases include energy monitoring, temperature control, process automation, and laboratory instrumentation. This device is ideally suited for manufacturing plants, HVAC systems, water treatment plants, and agricultural process monitoring.
The 4-digit LED display ensures clear visibility of measured parameters even in industrial environments. Universal input capability supports multiple sensor types enhancing device versatility. Dual relay outputs provide options for alarm or control functions within automation systems.
RS-485 communication facilitates seamless data transmission and remote monitoring. Wide operating temperature range and CE compliance guarantee reliability and safety.
Simex brand is renowned for durable, accurate industrial instrumentation offering advanced features for process control. Explore further Simex digital meters and panel instruments in EnvMart's catalog for comprehensive solutions.
