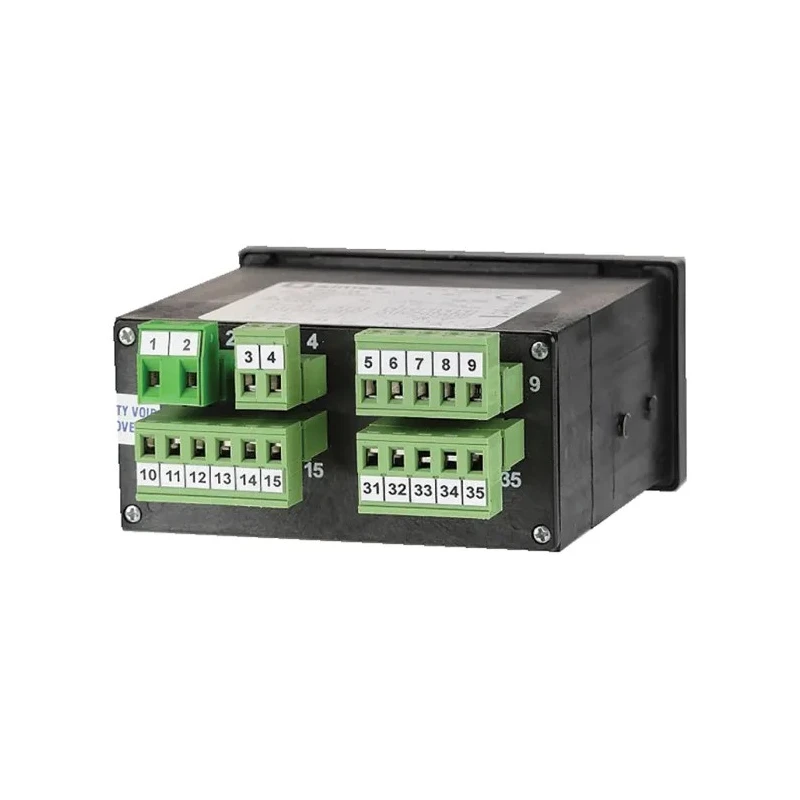

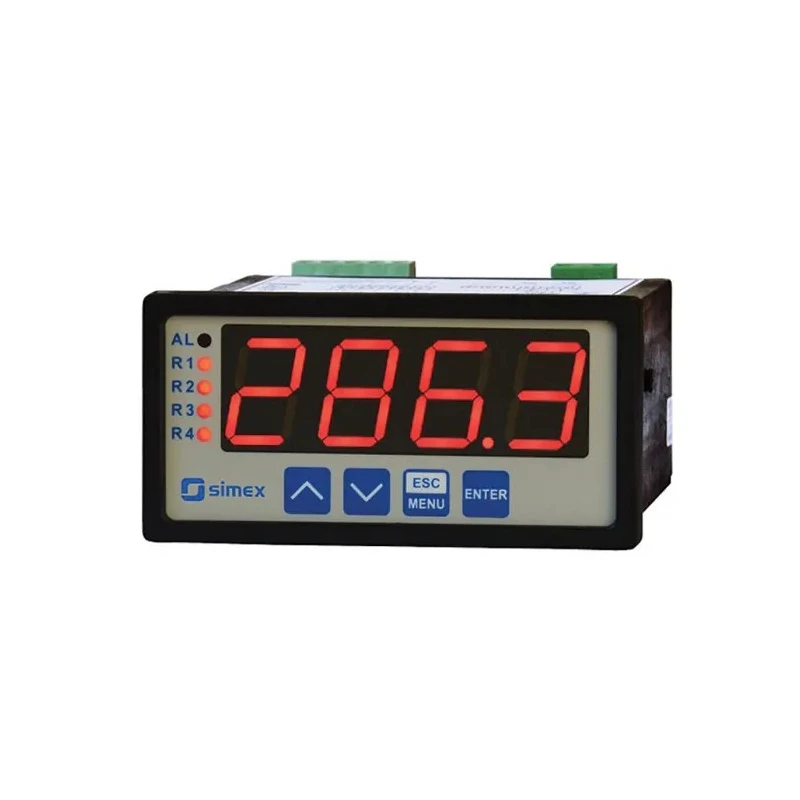

Simex Digital Panel Multifunction Meter Current Voltage LED Display 43 mm x 90.5 mm SRP-94-1841-1-4-001

Simex SRP-94-1841-1-4-001 Digital Panel Multifunction Meter is designed for precise measurement of current and voltage signals in industrial and process control environments. Featuring a large 4-digit LED display with 20 mm high digits, it ensures readability and accurate real-time data monitoring. The meter supports a range of input signals such as 0-60/75/100/150 mV and standard current/voltage ranges, making it highly adaptable for diverse applications.

The meter’s output flexibility includes analogue outputs, either active or passive, and 4 relay outputs facilitate control functions. The integrated RS485 communication port supports Modbus RTU protocol, enabling seamless integration into industrial production monitoring and automation systems. Configuration is user-friendly, available through local keyboard input or via the free S-Config software over the RS485 connection.

Engineered to operate reliably within a temperature range of 0°C to 50°C, the compact design with a cutout dimension of 43 mm height by 90.5 mm width and 102 mm depth allows for easy panel mounting. The meter complies with CE standards, assuring users of its quality and safety.

This multifunction meter is perfectly suited for industrial automation, manufacturing process monitoring, HVAC control systems, water treatment plants, and other applications requiring precise electrical parameter measurements. The Polish manufacturing origin underscores the product’s quality and durability for demanding industrial environments.

4-digit 20 mm LED display provides clear and accurate readings. Supports measurement of current and voltage signals with minimum measurement starting from 0 mA, 0 mV, 0 V. Analogue outputs are active or passive for versatile control capability.

RS485 Modbus RTU communication enables integration into process monitoring networks. Features four relay outputs for extended control functions. Wide range of characteristic curves including linear, square root, quadratic, and custom user-defined curves.

Configuration via local keyboard or free S-Config software. Operational temperature from 0°C to 50°C ensures stable performance. CE certified for compliance with industrial safety and quality standards. Compact panel cutout dimensions of 43 mm height and 90.5 mm width with 102 mm depth.

Invest in the Simex SRP-94-1841-1-4-001 Digital Panel Multifunction Meter for reliable and precise electrical measurement solutions in industrial and process automation applications. Explore more automation instruments available in the Electronics & Electricals category on EnvMart for enhancing your control systems.
