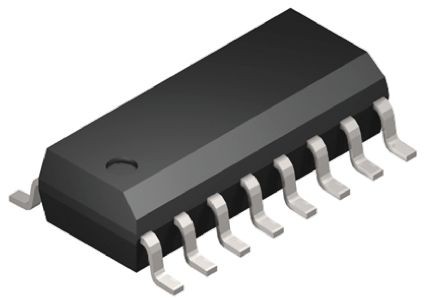

onsemi 6-Channel Non-Inverting Current/Voltage Buffer, 16-Pin SOIC MC14050BDR2G

onsemi MC14050BDR2G is a 6-channel non-inverting current/voltage buffer in a 16-pin SOIC package, designed to provide efficient signal buffering and conditioning in various electronic circuits. Operating within a wide supply voltage range of 3 to 18 volts, the device ensures stable performance across diverse industrial temperature conditions from -55°C to 125°C.

Built on CMOS technology within the 4000 logic family series, this buffer IC offers low supply current consumption at 15 microamperes, making it suitable for energy-sensitive applications. The device provides non-inverting outputs with a maximum propagation delay of 140 nanoseconds at capacitive loads, facilitating rapid signal processing required in modern electronic systems.

The MC14050BDR2G is surface mount compatible, with a standard 16-pin SOIC configuration and compact physical dimensions (10 mm length, 1.5 mm height), enabling space-efficient PCB layouts. It complies with automotive standard AEC-Q100, ensuring robust operation within automotive and other demanding environments.

This semiconductor buffer IC supports maximum high-level output current of -4.7 mA and low-level output current of 30 mA, delivering versatile current/voltage outputs for amplification and buffering purposes. Its absence of Schmitt trigger input and CMOS input type simplifies interfacing with other CMOS logic devices.

Features six non-inverting buffer channels in a single 16-pin SOIC package. Operates over a wide supply voltage range from 3 to 18 volts. Maximum propagation delay time of 140 nanoseconds at capacitive load. Supports operating temperature range from -55°C to 125°C for industrial applications.

Low supply current consumption of 15 microamperes for energy-efficient performance. Surface mount design compatible with automated PCB assembly. Includes automotive standard AEC-Q100 compliance for enhanced reliability. Ensures current/voltage output with maximum high level and low level output current ratings of -4.7 mA and 30 mA respectively.

Compact dimensions with 10 mm length and 1.5 mm height for space-saving designs. Designed in the 4000 CMOS logic family series for high-performance semiconductor applications.

This buffer IC is commonly used in industrial electronics, automotive electronics, communication equipment, instrumentation, and other applications requiring precise signal buffering across a wide voltage and temperature range. Its robust features and compliance standards make it suitable for demanding environments and modern electronic manufacturing processes.
