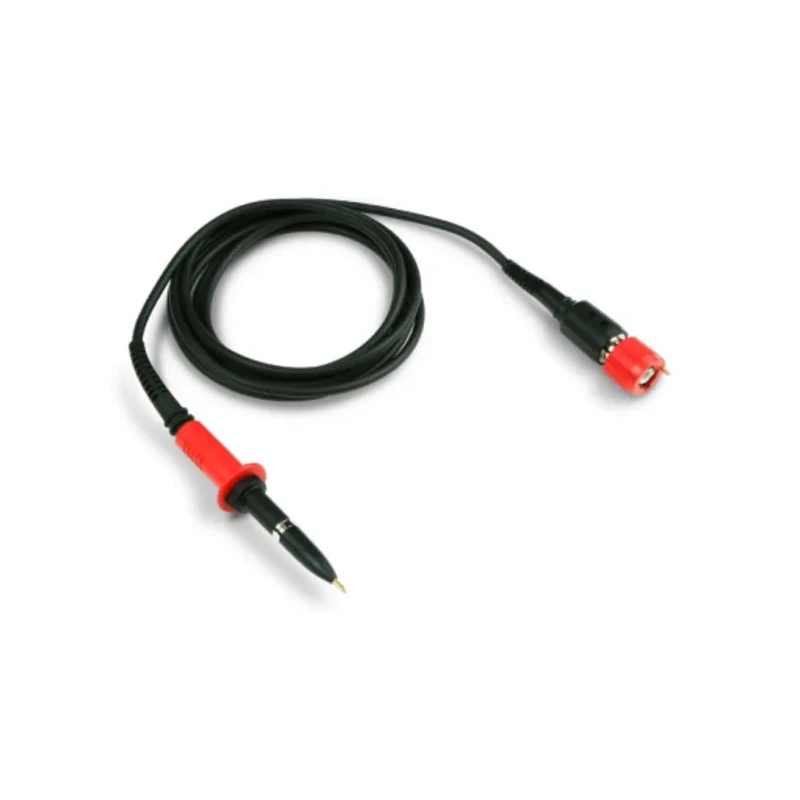

Teledyne LeCroy 6kV High Voltage Passive Oscilloscope Probe, Voltage Type, 500 MHz Bandwidth, 100:1 Attenuation PPE6KV-A
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Teledyne LeCroy |
| Model | PPE6KV-A |
| Connector Type | BNC |
| Bandwidth | 500MHz |
| Probe type | Voltage |
| Rise Time | 800ps |
| Attenuation | 100:1 |
| Standards/Approvals | IEC 61010031:2008, IEC 61010031:2015 |
| Safety Category Level | Footrest |
| Safety Category Voltage | 6kV |
| 100 | 1 |
| Maximum Common Mode Input Voltage | 6kV |
| IEC 61010031 | 2008, IEC 61010031:2015 |
Key Features
- Supports a maximum common mode input voltage of 6kV for high voltage testing.
- Offers a bandwidth of 500 MHz for capturing fast transient signals.
- Equipped with a BNC connector for standard oscilloscope compatibility.
- Fast rise time of 800 ps ensures rapid signal response.
- Complies with IEC 61010-031 safety standards for electrical test instruments.
- Durable construction suitable for high voltage component testing and industrial measurement applications.
Product Description
Teledyne LeCroy PPE6KV-A is a high voltage passive oscilloscope probe designed for voltage measurement in demanding industrial and laboratory environments.
Featuring a 500 MHz bandwidth, this probe enables precise tracking of high frequency signals, essential for accurate diagnostics and analysis in electrical engineering applications.
This probe supports a maximum common mode input voltage of up to 6kV, ensuring safety and robustness during high voltage testing scenarios. The 100:1 attenuation ratio allows safe interface with standard oscilloscopes, scaling input signals to manageable levels without compromising accuracy.
Equipped with a BNC connector, the PPE6KV-A probe provides secure and reliable connections with compatible instruments. Its fast rise time of 800 ps guarantees rapid transient signal capture, crucial for detailed waveform analysis.
Safety compliance with IEC 61010-031 (2008 and 2015 editions) ensures the probe meets international standards for electrical measurement safety. Typical applications include high voltage component testing, research laboratories, industrial quality control, and electrical maintenance tasks.
Supports a maximum common mode input voltage of 6kV for high voltage testing. Offers a bandwidth of 500 MHz for capturing fast transient signals. Features a voltage attenuation ratio of 100:1 for accurate signal scaling.
Equipped with a BNC connector for standard oscilloscope compatibility. Fast rise time of 800 ps ensures rapid signal response. Compliance with IEC 61010-031 safety standards guarantees user protection. Suitable for high voltage component testing and industrial measurement.
Explore EnvMart’s selection of Oscilloscope Probes and accessories for comprehensive measurement solutions in industrial, laboratory, and manufacturing environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum common mode input voltage for this oscilloscope probe is 6kV, making it suitable for high voltage testing applications.
This model offers a bandwidth of 500 MHz, allowing for the capture of fast transient signals essential for accurate diagnostics.
It is equipped with a BNC connector, ensuring compatibility with standard oscilloscopes and secure connections.
The rise time of this probe is 800 ps, which ensures rapid signal response for detailed waveform analysis.
The probe features a voltage attenuation ratio of 100:1, allowing safe interfacing with standard oscilloscopes while maintaining accuracy.
It complies with IEC 61010-031 safety standards for electrical test instruments, ensuring user protection during operation.
Typical applications include high voltage component testing, research laboratories, industrial quality control, and electrical maintenance tasks.
The probe is designed for durability, suitable for high voltage component testing and industrial measurement applications.
The country of origin for this oscilloscope probe is Taiwan.
This model is a high voltage passive oscilloscope probe specifically designed for voltage measurement.
Specific dimensions and weight details are not provided in the available specifications.
Installation requirements are not explicitly stated, but it is designed for compatibility with standard oscilloscopes via its BNC connector.
