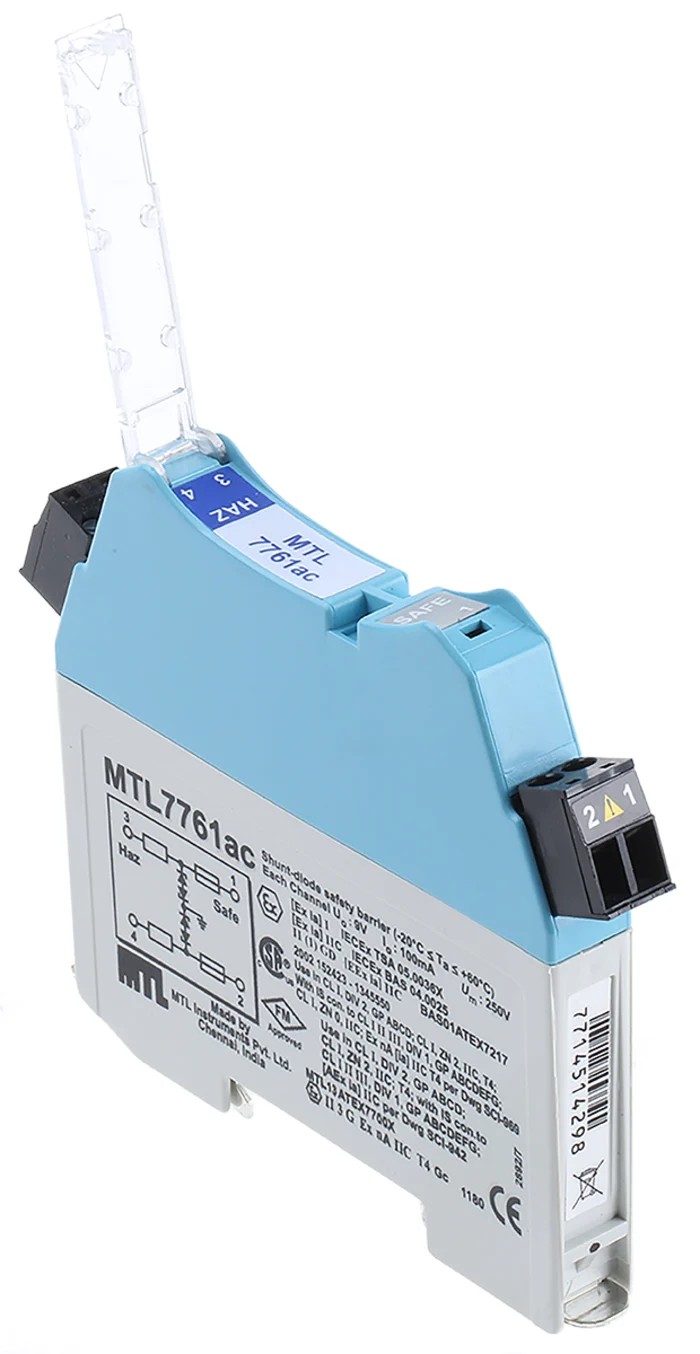

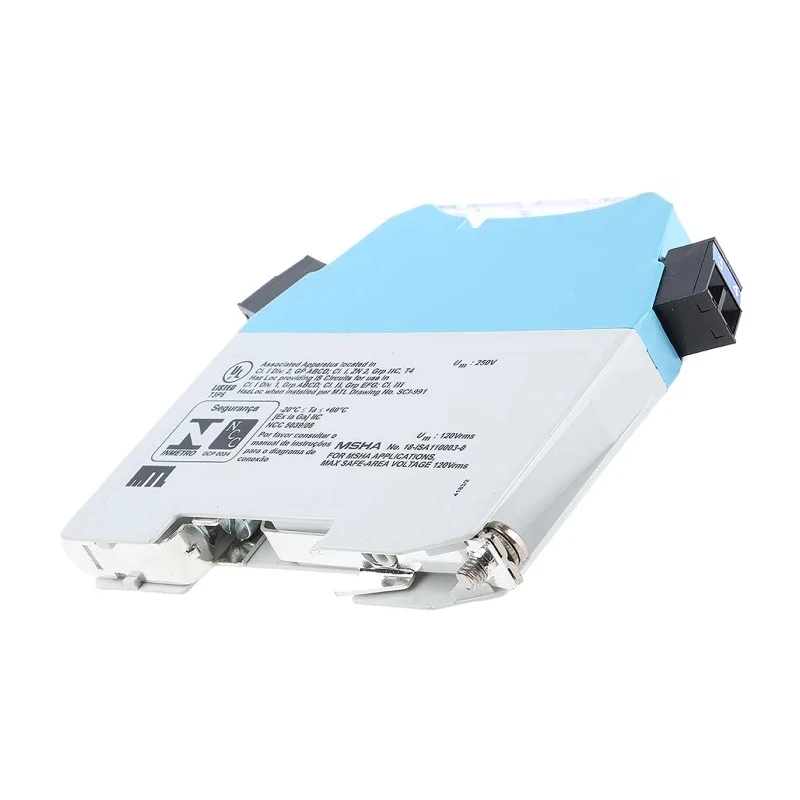

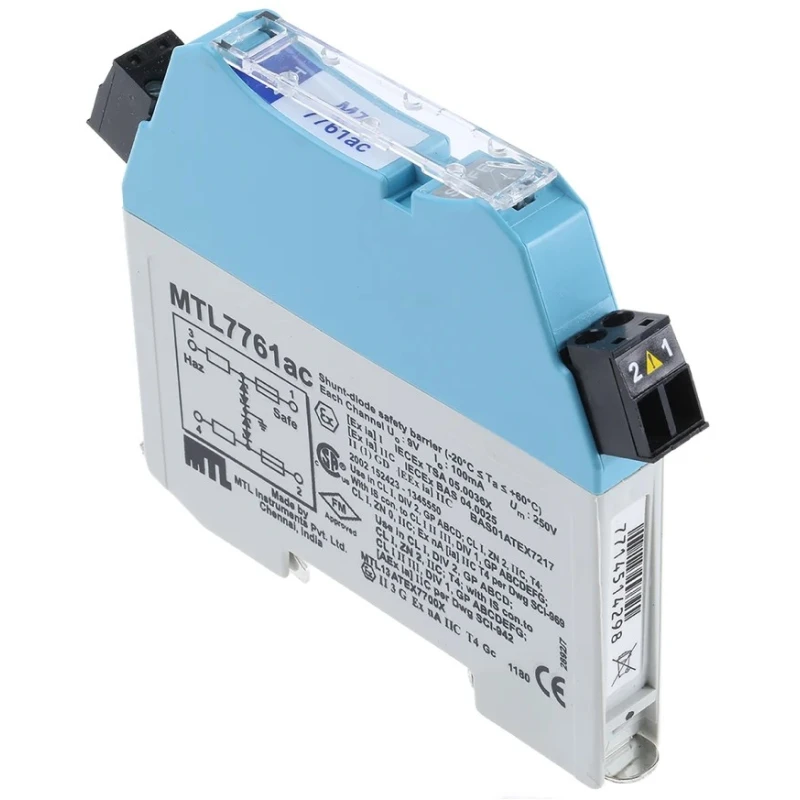

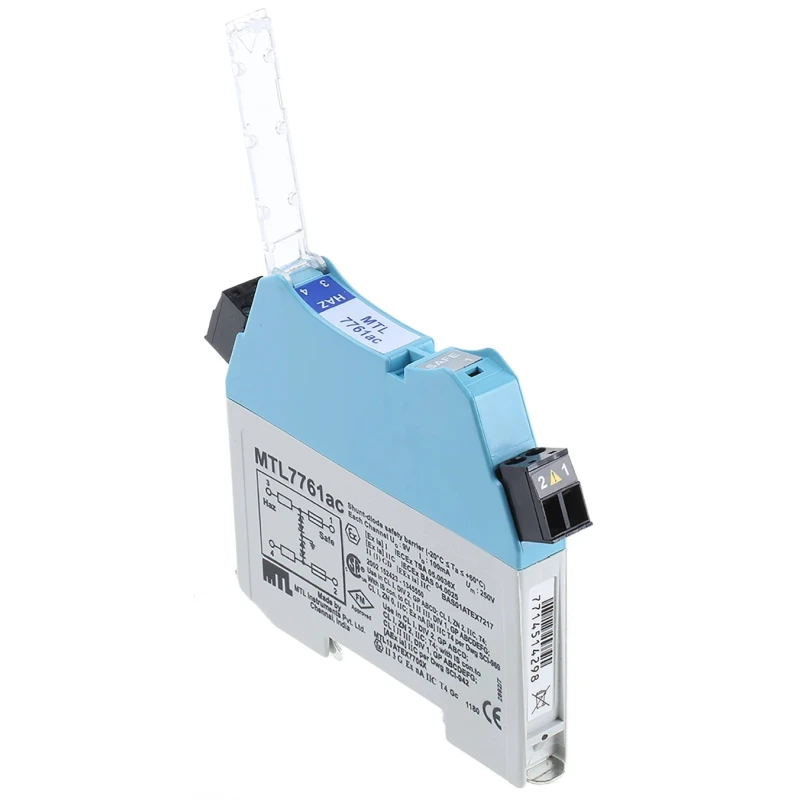

Eaton 2 Channel Zener Barrier DIN Rail Mount ATEX Certified MTL7761AC/RS
Specifications
| Country of Origin | India |
|---|---|
| Brand | Eaton |
| Dimensions | 105 x 90 x 12.6mm |
| Model | MTL7761AC/RS |
| Mount Type | DIN Rail |
| Series | MTL7700 |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 2 |
| Supply Voltage | 14V dc |
| Hazardous Area Certification | ATEX |
| Barrier Type | Zener Barrier |
| Safety Current Resistance | 90Ω |
| Maximum Safety Current | 100mA |
| Maximum Safety Voltage | 8.4V |
| Eaton Zener Barrier, ATEXBrand | Eaton |
Key Features
- Provides intrinsic safety by limiting voltage and current to hazardous zones.
- DIN rail mounting allows convenient installation and secure connection.
- Equipped with screw terminals for reliable wiring and easy identification.
- Operates within temperature range from -20°C to 60°C for versatility.
- Rated for maximum safety voltage of 8.4V and current of 100mA per channel.
- Built to ensure workplace safety by preventing sparking and overheating.
- Compact dimensions of 105 x 90 x 12.6mm fit tight enclosures.
- Series MTL7700 provides robust protection with pulse-tested zener diodes and fuses.
Product Description
Eaton MTL7761AC/RS is a 2 Channel Zener Barrier designed for intrinsic safety in hazardous environments with ATEX certification. It is engineered to protect electrical instrumentation and control systems by limiting the voltage and current that can reach hazardous areas, reducing fire and explosion risks.
The device is DIN rail mountable, allowing easy and secure installation within control cabinets or enclosures. Its angled wire entry and screw terminal connections facilitate efficient wiring in limited spaces and ensure reliable operation.
Capable of handling maximum safety voltage of 8.4V and maximum current of 100mA per channel, the barrier offers dependable protection for analog signals and instrumentation. It performs safely across a wide temperature range from -20°C to 60°C, expanding its utility in diverse industrial conditions.
The Eaton MTL7700 Series utilizes pulse-tested zener diodes, resistors, and fuses providing dual-stage fail-safe protection. In case of electrical faults, excess energy is safely diverted to earth, preventing hazardous sparking or overheating.
This unit is compact with dimensions of 105 x 90 x 12.6mm, enabling installation in constrained spaces typical of electrical cabinets in industrial automation, manufacturing plants, oil and gas facilities, and other hazardous or explosive environments.
Intrinsic safety for hazardous areas with ATEX certification. Simple DIN rail mounting and removable terminals for quick maintenance. Limits voltage to 8.4V and current to 100mA per channel for signal protection. Durable screw terminal connections.
Operates reliably between -20°C and 60°C ambient temperature. Compact size fits small enclosures efficiently. Built-in fail-safe diodes and fuses protect instrumentation and personnel. Ideal for electrical, automation, industrial control, and safety-critical applications.
Manufactured in India, consistent with quality standards. Explore additional Eaton signal conditioners and isolators at EnvMart for your industrial safety and automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a maximum safety voltage of 8.4V and a maximum safety current of 100mA per channel.
It operates reliably within a temperature range from -20°C to 60°C.
The device is designed for DIN rail mounting, allowing for convenient installation within control cabinets or enclosures.
It is equipped with screw terminal connections, which facilitate efficient wiring and ensure reliable operation.
The dimensions of this unit are 105 x 90 x 12.6mm, making it suitable for installation in tight spaces.
It has ATEX certification, ensuring its suitability for use in hazardous environments.
This model features 2 channels, providing intrinsic safety for multiple signals.
The Eaton MTL7761AC/RS is part of the MTL7700 series, which is known for its robust protection features.
The supply voltage for this unit is 14V DC.
It includes pulse-tested zener diodes and fuses that provide dual-stage fail-safe protection against electrical faults.
It is suitable for electrical, automation, industrial control, and safety-critical applications in hazardous areas.
This unit is manufactured in India, consistent with quality standards.
