Pepperl + Fuchs 2 Channel DIN Rail Mount Zener Barrier ATEX Certified 28V DC 120mA Z 787.H

Free Delivery in India | Lowest Global Shipping Charges

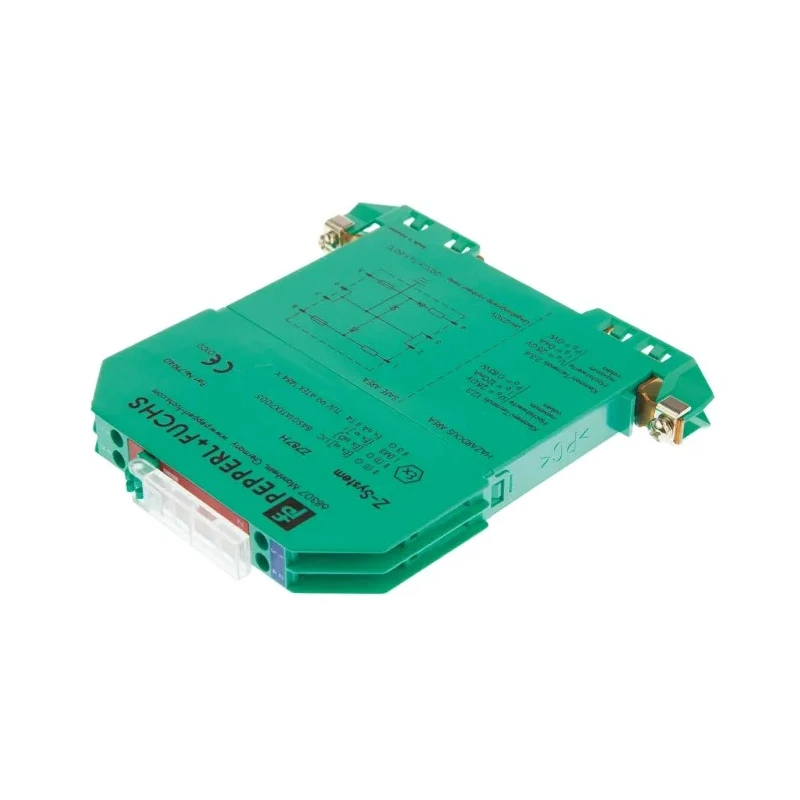

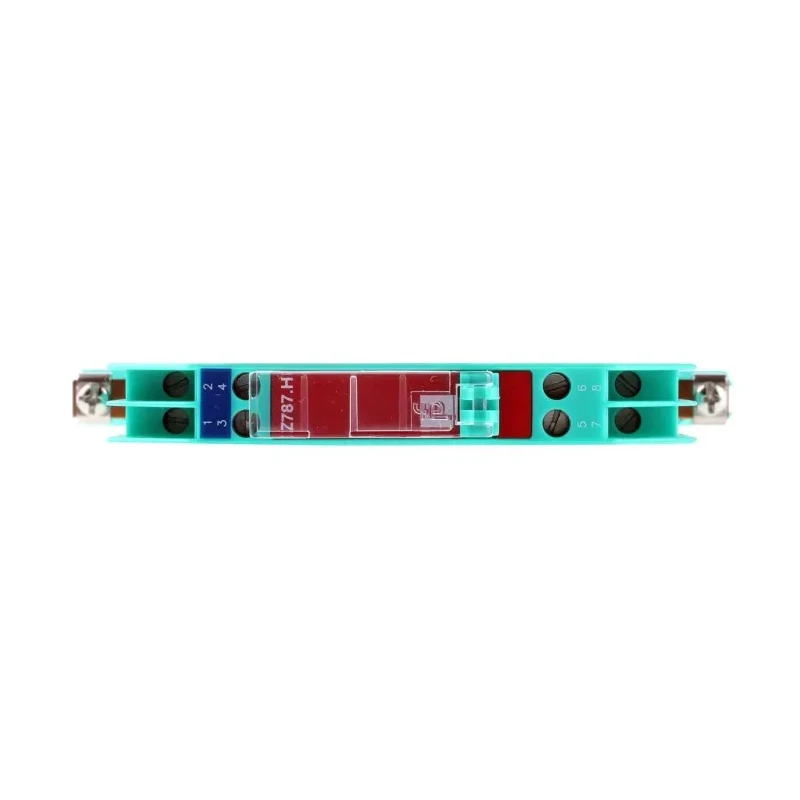

Pepperl + Fuchs 2 Channel DIN Rail Mount Zener Barrier ATEX Certified 28V DC 120mA Z 787.H

Name: Pepperl + Fuchs 2 Channel DIN Rail Mount Zener Barrier ATEX Certified 28V DC 120mA Z 787.H
Brand: Pepperl + Fuchs
SKU: 406303
Price: 260.5 USD
Availability: InStock



Category Zener Barrier Brand Pepperl + Fuchs Condition New

Specifications

Country of Origin	Indonesia
Brand	Pepperl + Fuchs
Model	Z 787.H
IP Rating	IP20
Mount Type	DIN Rail
Series	Z787
Maximum Operating Temperature	60°C
Minimum Operating Temperature	-20°C
Terminal type	Screw
Number Of Channels	2
Supply Voltage	28V dc
Hazardous Area Certification	ATEX
Standards/Approvals	CE, TUV, IEC
Barrier Type	Zener Barrier
Safety Current Resistance	250Ω
Maximum Safety Current	120mA
Maximum Safety Voltage	250V
Pepperl + Fuchs 2 Channel Zener Barrier, ATEXBrand	Pepperl + Fuchs

Key Features

This Zener barrier includes 2 channels for signal isolation.
It is suitable for hazardous areas and complies with ATEX safety standards.
The device features a DIN rail mount type for easy installation.
Operating voltage is rated at 28V DC with a maximum safety current of 120mA.
It operates within a temperature range of -20°C to 60°C.
The product has an IP20 rating, indicating protection against solid objects bigger than 12 mm.
It utilizes screw terminals for secure electrical connections.
Safety current resistance is 250 ohms.

Product Description

The Pepperl + Fuchs Z 787.H is a high-quality 2 channel Zener Barrier designed for signal interfacing and isolation between hazardous and non-hazardous circuits. It is ATEX certified for safe use in explosive atmospheres and primarily used in industrial automation, process control, and instrumentation systems.

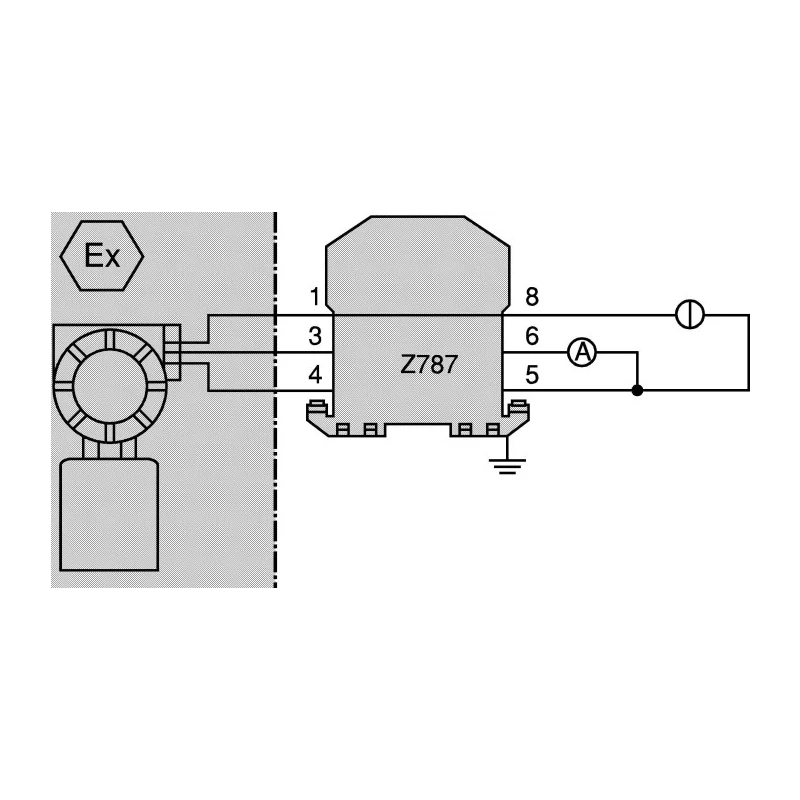

Constructed with robust materials and designed for DIN rail mounting, this Zener Barrier offers reliable electrical isolation with safety current resistance of 250 ohms and maximum safety current of 120mA. Its operating voltage at 28V DC supports a wide range of 4-20mA transmitter applications, making it ideal for hazardous area installations requiring intrinsic safety compliance.

Operating safely from -20°C up to 60°C and featuring an IP20 ingress protection rating, the Z 787.H is suited for indoor industrial environments demanding reliable performance and safety certification, including CE, TUV, and IEC standards.

The device terminals use secure screw-type connections, ensuring durability and ease of wiring. Manufactured in Indonesia, it belongs to the Pepperl + Fuchs Z787 series, recognized for excellence in signal conditioning and safety barrier solutions.

Includes 2 channels for versatile signal isolation in hazardous areas. ATEX certified for intrinsic safety compliance. Mount type: DIN rail for convenient industrial installation. Operating voltage: 28V DC with 250Ω safety current resistance.

Maximum safety current: 120mA for protected circuit applications. IP20 rated for protection against contact and solid objects. Operating temperature range from -20°C to 60°C suits industrial environments. Equipped with robust screw terminals for reliable connectivity.

Ideal for industrial, electrical automation, and control system deployments, Pepperl + Fuchs Z 787.H ensures safe signal transmission and protection in hazardous zone instruments and control loops. Explore EnvMart's extensive catalog for more signal conditioning and isolation products from top brands like Pepperl + Fuchs.
