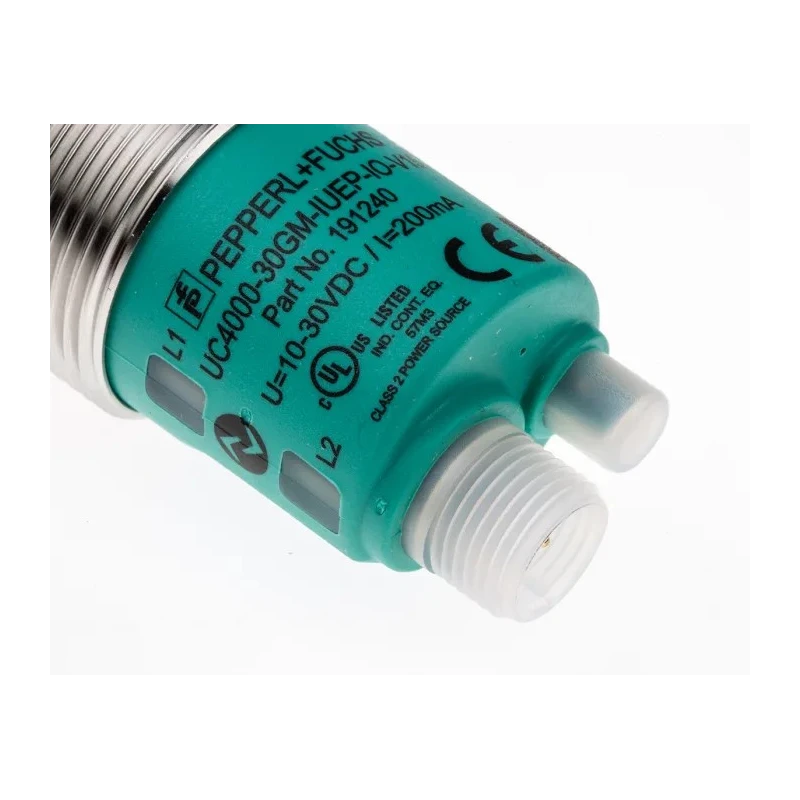

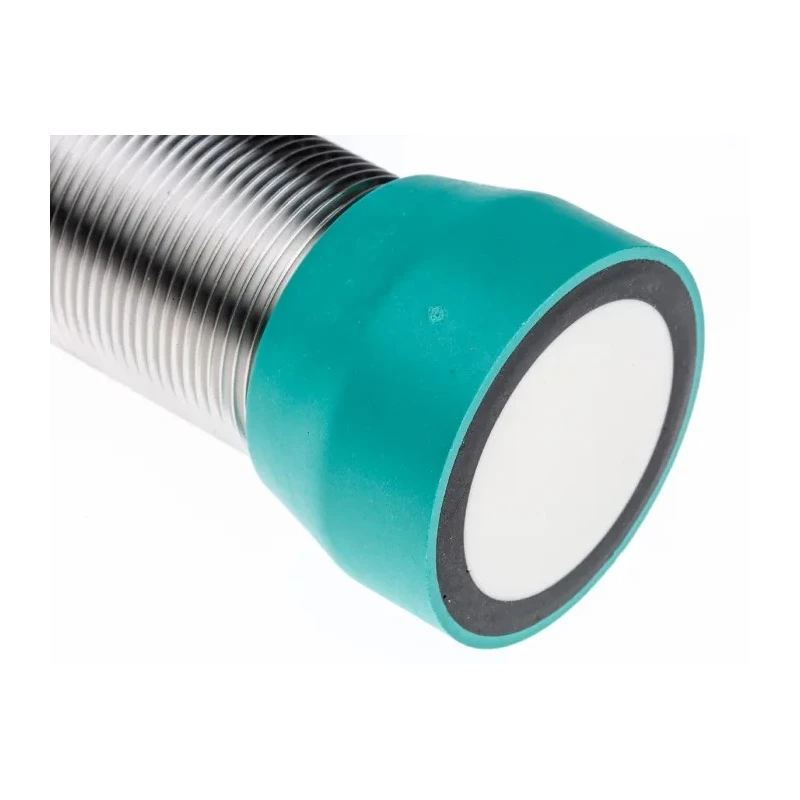

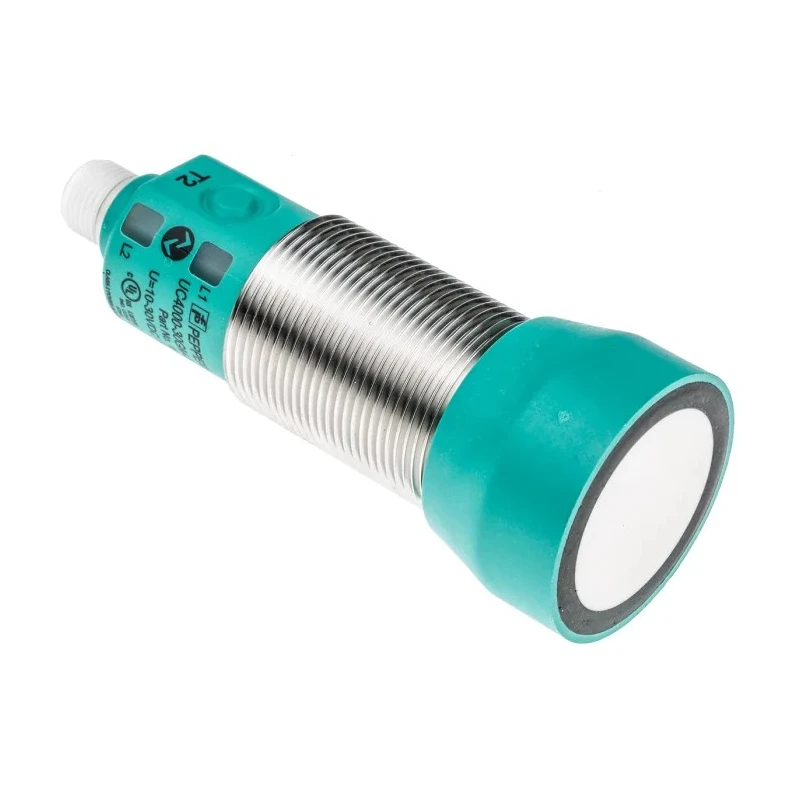

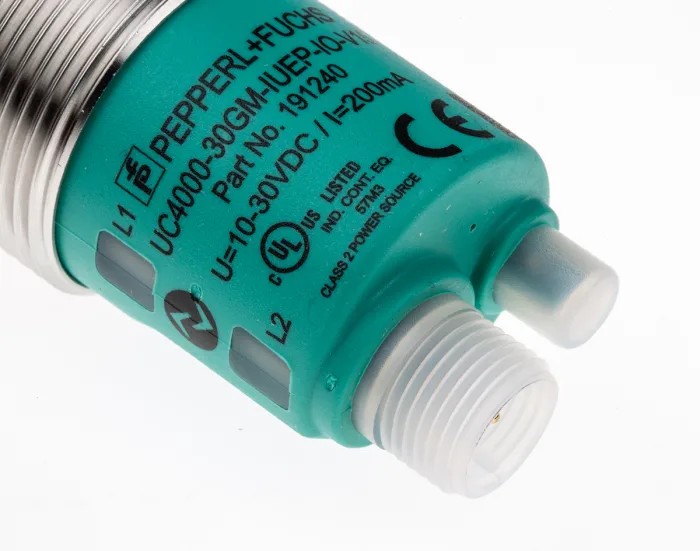

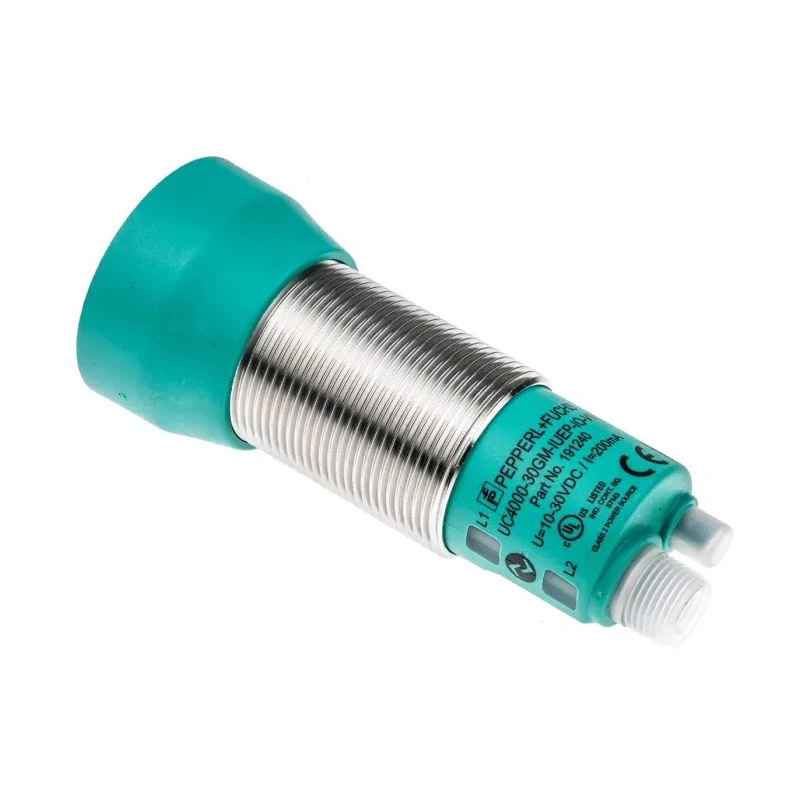

Pepperl + Fuchs Barrel Ultrasonic Proximity Sensor M12 4000 mm 200mA IO-Link 3V 30 V dc UC4000-30GM-IUEP-IO-V15

Pepperl + Fuchs UC4000-30GM-IUEP-IO-V15 Barrel Ultrasonic Proximity Sensor combines advanced ultrasonic detection technology with a robust barrel M12 form factor for industrial automation needs. Designed to reliably detect objects up to 4000 mm, this sensor integrates an IO-Link communication interface, providing smart connectivity options and precise control.

The sensor housing is crafted from polyamide, stainless steel, and thermoplastic polyurethane, ensuring high mechanical strength and resistance to harsh operating conditions, including liquids and dust, as confirmed by its IP67 rating. Operating temperature ranges from -25°C to 70°C, allowing use in a broad range of environments.

This model supports a supply voltage between 3V and 30V dc, and offers a switching current of 200mA with a quick 225 ms response time. The built-in LED indicators help in easy status monitoring and diagnostics. The sensor's design includes adjustable acoustic power and sensitivity settings, hysteresis and window modes, as well as a teach-in input and temperature compensation features, enhancing its versatility in various industrial sensing scenarios.

Typical industrial applications include material detection on conveyor systems, object presence sensing in manufacturing lines, and liquid level detection in tanks. The device complies with rigorous international standards such as CCC, CE, cULus, IEC, and is IO-Link compatible for seamless integration into automated control systems.

Set contains one Pepperl + Fuchs UC4000-30GM-IUEP-IO-V15 Barrel Ultrasonic Proximity Sensor with M12 barrel threading ready for immediate deployment. Explore the category of Ultrasonic Proximity Sensors on EnvMart for other sensors suited for automation, control, and industrial process monitoring.

Equipped with an M12 thread size for secure barrel mounting. Provides a maximum detection distance of 4000 mm for versatile applications. Operates between -25°C and 70°C for reliable performance in harsh environments. Constructed from polyamide, stainless steel, and thermoplastic polyurethane for durability.

Supports a maximum supply voltage of 3V and a maximum DC voltage of 30V dc. Features an IP67 rating ensuring complete protection against dust and water immersion. Output via IO-Link interface with a switching current capacity of 200mA.

Response time is 225 ms with switching frequency up to 2 Hz for efficient sensing. Certified with CCC, cCSAus, CE, cULus, EN, IEC, and IO-Link standards for industrial compliance.
