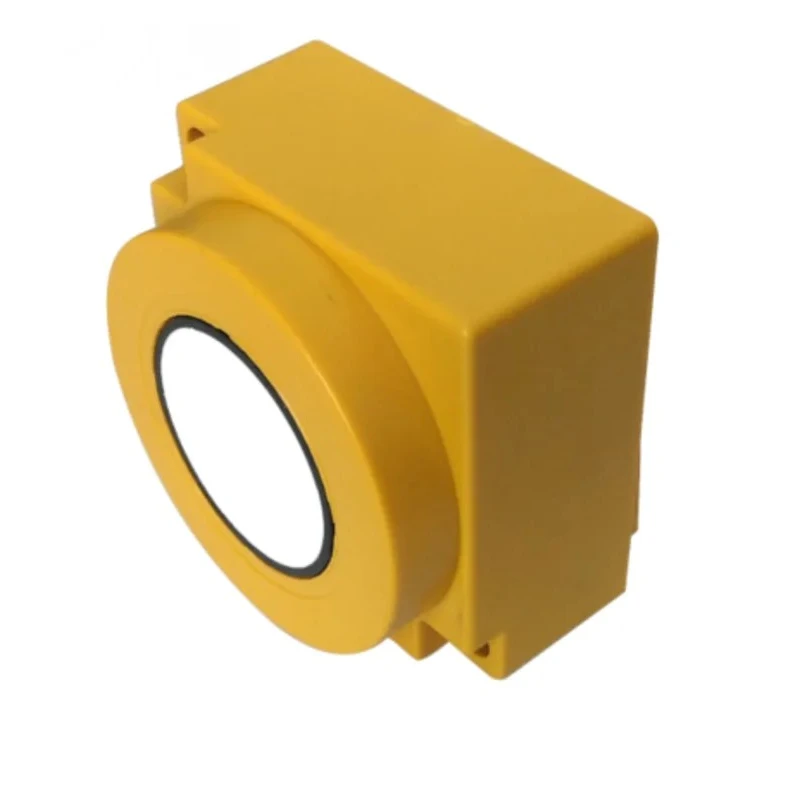

RS Pro Block Ultrasonic Proximity Sensor 3 m Detection Range 4 to 20 mA Output 30 V DC 218-1174
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS Pro |
| Response time | 125ms |
| Length | 55mm |
| Model | 218-1174 |
| Depth | 35mm |
| IP Rating | IP67 |
| Width | 55mm |
| Mount Type | Non-Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | 4 to 20 mA |
| Series | RS PRO |
| Maximum Operating Temperature | 75°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Standards/Approvals | CE/RoHS EN 60947-5-2:2020 |
| Maximum Supply Voltage | 30V |
| Maximum Detection | 3m |
| Standards/ApprovalsCE/RoHS EN 60947-5-2 | 2020 |
Key Features
- Block style sensor with 55mm length, width, and 35mm depth dimensions.
- Constructed with durable Polybutylene Terephthalate housing material.
- Operating voltage up to 30 V DC with maximum DC voltage rating of 30 V.
- Withstands environmental conditions with IP67 rating and temperature range from -25°C to 75°C.
- Response time of 125 milliseconds ensures fast sensing capability.
- Pre-cabled terminal type for easy installation in non-flush mounting applications.
- Equipped with internal temperature compensation for high accuracy measurement.
- Ideal for obstacle detection, distance measurement, and sensing solid or liquid materials.
Product Description
RS Pro 218-1174 Block Ultrasonic Proximity Sensor offers reliable sensing with a maximum detection range of 3 meters and an output signal of 4 to 20 mA, operating at 30 V DC. This sensor is designed for use in industrial automation and control gear where precise measurement of distance and object detection is required.
The sensor features a robust Polybutylene Terephthalate housing in a compact block style, measuring 55mm in length and width, and 35mm in depth, ensuring durability and easy integration. It is designed for non-flush mounting with a pre-cabled terminal connection, facilitating straightforward installation.
Rated IP67, the sensor is dust-tight and protected against temporary immersion, suitable for harsh industrial settings. It operates reliably in temperature ranges from -25°C to 75°C and offers a fast response time of 125 milliseconds for timely detection.
Certification to CE and RoHS standards including EN 60947-5-2:2020 ensures compliance with quality and safety norms. Internal temperature compensation maximizes measurement accuracy even in challenging environments affected by dust, fog, or varying temperatures.
This RS Pro Ultrasonic Proximity Sensor is especially suited for applications in manufacturing plants, laboratories, water treatment, and material handling for detecting obstacles and measuring distances of solids and liquids. It functions by emitting high-frequency ultrasonic pulses and processing their reflections to detect objects.
Block style sensor dimensions: 55mm x 55mm x 35mm. Polybutylene Terephthalate material housing for durability. Maximum detection range of 3 meters with 4 to 20 mA output. Operating voltage and maximum DC voltage of 30 V DC.
Operating temperature range -25°C to 75°C with IP67 protection. Response time of 125 ms for fast sensing. CE and RoHS certified, compliant with EN 60947-5-2:2020. Pre-cabled terminals and non-flush mount design for installation flexibility.
Internal temperature compensation for measurement precision. Explore the wide range of RS Pro sensors at EnvMart for your industrial sensing and automation requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The RS Pro Block Ultrasonic Proximity Sensor has a maximum detection range of 3 meters.
It provides a 4 to 20 mA output signal.
The sensor operates at a maximum voltage of 30 V DC.
This model measures 55mm in length, 55mm in width, and 35mm in depth.
The response time is 125 milliseconds, allowing for fast sensing capabilities.
It has an IP67 rating, making it dust-tight and protected against temporary immersion in water.
The operating temperature range is from -25°C to 75°C.
The housing is made from Polybutylene Terephthalate, ensuring durability.
It is designed for non-flush mounting with a pre-cabled terminal connection for easy installation.
It is CE and RoHS certified and complies with EN 60947-5-2:2020 standards.
It is suitable for applications in manufacturing plants, laboratories, water treatment, and material handling for detecting obstacles and measuring distances.
Yes, it is equipped with internal temperature compensation to enhance measurement accuracy in varying conditions.
