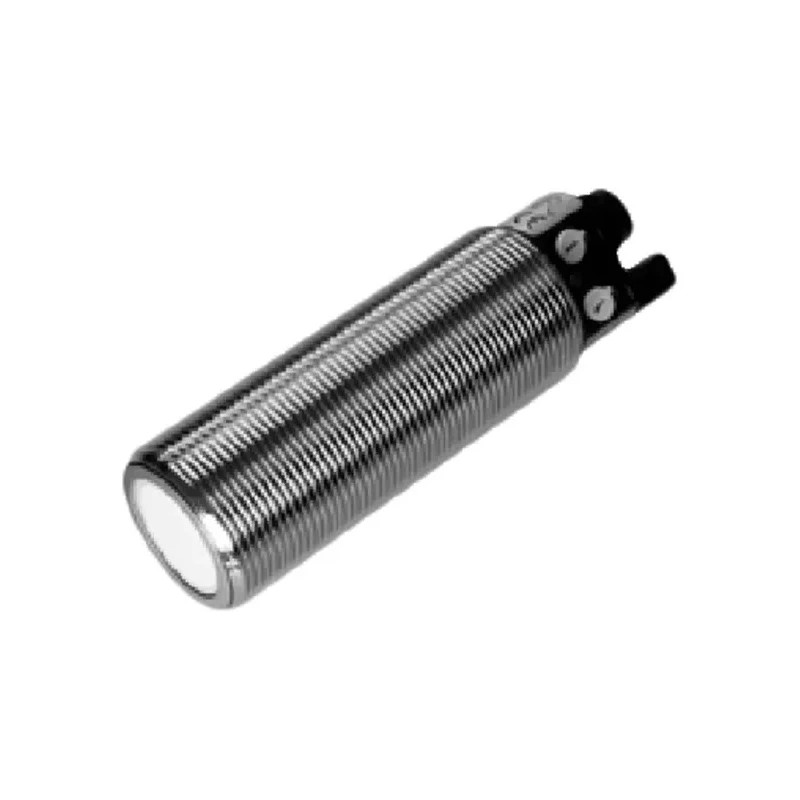

Pepperl + Fuchs Threaded Barrel Ultrasonic Proximity Sensor M30 x 1.5 3.5 m Range 300mA PNP 3V to 30V UC3500-30GM70-IE2R2-V15

Pepperl + Fuchs UC3500-30GM70-IE2R2-V15 Threaded Barrel Ultrasonic Proximity Sensor features a robust nickel plated brass body with a M30 x 1.5 threaded barrel design, making it suitable for diverse industrial applications requiring precise object detection up to 3.5 meters.

This sensor operates on a power supply ranging from 3V to 30V DC, equipped with a PNP output type facilitating easy integration in automation control systems. The device incorporates a 5-pin M12 terminal for reliable electrical connectivity and is rated IP65, ensuring protection against dust ingress and water jets, suitable for use in challenging environments.

It functions efficiently within a temperature range from -25°C to 70°C and supports a maximum switching frequency of 2 Hz with a response time of 150 milliseconds, enabling accurate and timely sensing.

Additional technical capabilities include adjustable switched outputs, synchronization features, hysteresis and window modes, as well as adjustable acoustic power and sensitivity to detect various substances including solids, liquids, and powders.

This proximity sensor is protected against short circuits and overloads, enhanced by LED indicators to assist in operational monitoring and diagnostics. Its compliance with international standards including CCC, CE, cULus, and IEC assures users of its quality and safety.

Ideal for industrial automation, manufacturing, and other process control environments, this Pepperl + Fuchs ultrasonic sensor supports reliable detection and switching functionality, contributing to enhanced system efficiency and safety.

Sensor features a threaded barrel design with M30 x 1.5 thread size for versatile mounting. Equipped with a 5-Pin M12 terminal interface providing secure electrical connections. Constructed with nickel plated brass housing material ensuring durability and corrosion resistance.

Operates at supply voltages from 3V up to 30V DC for flexible power options. Designed for industrial use with IP65 rating for dust and water resistance. Operates effectively in temperature ranges from -25°C to 70°C for use in harsh environments.

Supports maximum switching frequency of 2 Hz and response time of 150 ms ensuring timely detection. Output current up to 300mA with PNP transistor output for controlling load devices. Includes features like adjustable switched outputs and synchronization capabilities for advanced applications.

Compliant with multiple international standards including CCC, CE, cULus, and IEC for safety and quality assurance. Discover the Pepperl + Fuchs collection of sensors for industrial automation and control applications on EnvMart.
