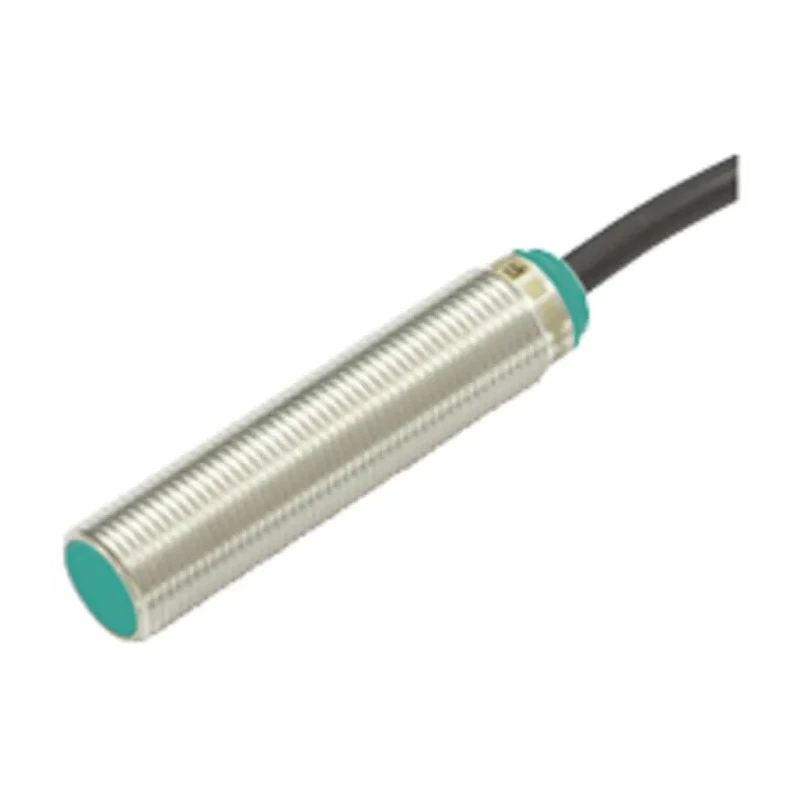

Pepperl + Fuchs Threaded Barrel Inductive Proximity Sensor M12 PNP 36V 4mm Detection NBN4-12GM30-A2-V1
Specifications
| Country of Origin | Vietnam |
|---|---|
| Brand | Pepperl + Fuchs |
| Length | 44.5mm |
| Model | NBN4-12GM30-A2-V1 |
| Depth | 12mm |
| IP Rating | IP68 |
| Width | 44.5mm |
| Mount Type | Non-Flush |
| Housing Material | Brass White Bronze Coated |
| Output type | PNP |
| Series | NBN |
| Maximum Operating Temperature | 85°C |
| Thread Size | M12 |
| Minimum Operating Temperature | -40°C |
| Switching Current | 200mA |
| Terminal type | M12 |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 36V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 2.65kHz |
| Standards/Approvals | ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, UL 508 12, UL 508 4, UL 94 HB, UL 94 V-0, UL 94 V-2 |
| Maximum AC Voltage | 240V ac |
| Maximum Supply Voltage | 36V |
| Materials Detected | Polybutylene Terephthalate |
| Maximum Detection | 4mm |
Key Features
- Threaded barrel body with M12 thread size for secure mounting.
- Detection range of 4 millimeters for precise object sensing.
- Operating temperature range from -40°C to 85°C for varied environments.
- Protection rating of IP68 providing water and dust resistance.
- Brass housing with white bronze coating for maximum corrosion protection.
- Non-flush mount type with unshielded sensor design.
- Maximum switching frequency of 2.65 kHz enabling fast response times.
- Output type is PNP suitable for standard industrial control systems.
Product Description
Pepperl + Fuchs NBN4-12GM30-A2-V1 Threaded Barrel Inductive Proximity Sensor is a high-performance device designed to detect metal objects within a 4 mm range. The sensor features a threaded barrel body style with M12 thread size, offering robust installation options in industrial automation systems. It has a PNP output type compatible with common industrial automation control applications.
This sensor offers a wide operating voltage range with a maximum supply voltage of 36V DC and 240V AC, making it versatile for multiple power environments. Its IP68 rating ensures excellent protection against dust and water ingress, supporting deployment in harsh conditions. The sensor housing is crafted from brass with a white bronze coating to maximize corrosion resistance and durability over prolonged service.
The operating temperature range from -40°C to 85°C allows the sensor to function reliably in extreme temperature environments. The non-flush mounting type with unshielded design provides flexibility for installation where unobstructed sensing is required.
With a maximum switching frequency of 2.65 kHz and switching current rated at 200 mA, this sensor offers fast and reliable detection capability suitable for industrial manufacturing, automation, and control gear applications.
The product complies with various international standards including ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, UL 508 (parts 12 and 4), and UL 94 flammability standards (HB, V-0, V-2). Its manufacturing origin is Vietnam.
Threaded barrel body style with M12 thread size. 4 mm maximum detection range for metal objects. IP68 rating for dust and water resistance. Brass white bronze coated housing for corrosion protection. Wide temperature range from -40°C to 85°C.
PNP output type with 200 mA switching current. Maximum switching frequency of 2.65 kHz for rapid detection. Non-flush mounting and unshielded design. Compliance with CE, RoHS, UL and other international standards. Suitable for industrial automation, control gear, and sensor applications.
Explore our Sensors category on EnvMart for more industrial-grade sensing solutions and Pepperl + Fuchs products.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this model is 4 mm for metal objects.
This sensor operates within a temperature range of -40°C to 85°C.
It features a PNP output type, suitable for standard industrial control systems.
The sensor has an IP68 rating, providing excellent protection against dust and water ingress.
The sensor measures 44.5 mm in length and width, with a depth of 12 mm.
It has a maximum switching frequency of 2.65 kHz, allowing for rapid detection.
This model is designed to detect metal objects, specifically polybutylene terephthalate.
The housing is made of brass with a white bronze coating, providing corrosion protection.
It features a non-flush mounting type with an unshielded design for flexible installation.
The maximum supply voltage is 36V DC and 240V AC, making it versatile for various power environments.
It complies with various international standards including ANSI/ESD, CE, CSA, DIN, EN, REACH, RoHS, and UL standards.
The maximum switching current is rated at 200 mA.
