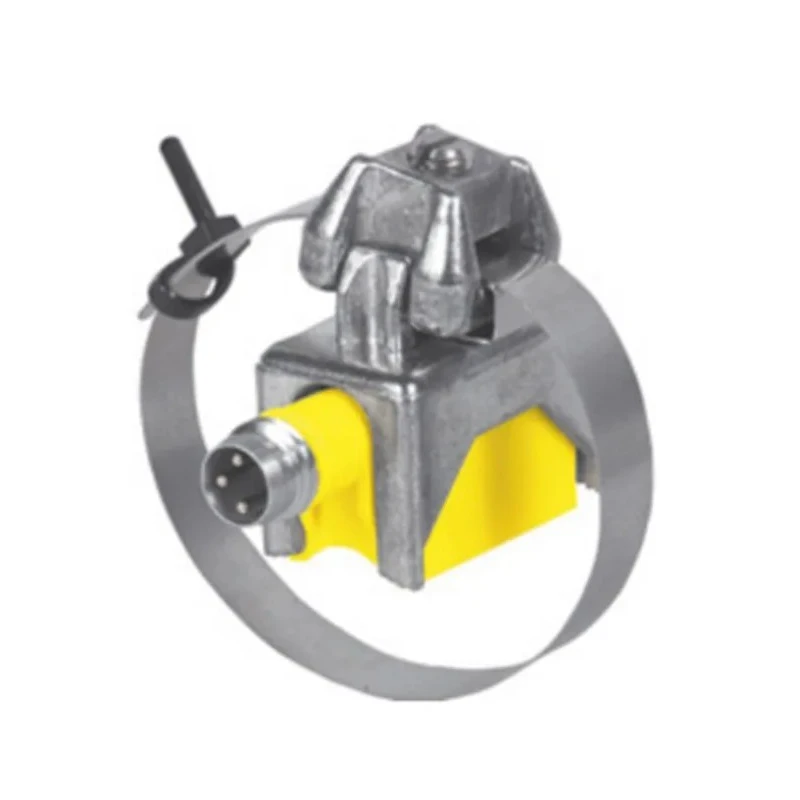

Turck Block Inductive Proximity Sensor M8 x 1 PNP 30V DC 200mA BIM-KST-AP6X-V1131 W/CLAMP

Turck BIM-KST-AP6X-V1131 W/CLAMP block inductive proximity sensor is engineered for reliable detection in automation and control systems. Featuring a robust polyamide 12 fiberglass 30% housing, this sensor provides IP67 protection against dust and water ingress, making it suitable for harsh industrial environments. The sensor has an M8 x 1 thread size with a block body style designed for flush mounting where space and compactness are factors.

Operating at a maximum DC voltage of 30 V, it delivers a PNP output signal with a switching current up to 200 mA. The device supports a maximum switching frequency of 1 kHz, providing fast and accurate detection performance. The sensor can withstand operating temperatures ranging from -25°C to 70°C, broadening its applicability across varying process conditions.

Equipped with LED status indication for easy monitoring, the sensor includes protections against overload, short circuit, and reverse polarity to enhance durability and safety. Its compact dimensions - length 25.5 mm, width 17 mm, and depth 15 mm - allow easy integration into cylinders ranging from 8 to 80 mm diameter, secured by a strap lock mechanism.

This Inductive Proximity Sensor is ideal for industrial automation tasks including position sensing, presence detection, and process control in manufacturing, material handling, robotics, and related sectors. Its robust build and reliable output ensure consistent performance in demanding settings.

Polyamide 12 fiberglass 30% housing with zinc die cast protective cover rated IP67 for maximum protection. Flush mountable block body sensor with M8 terminal and threading. Maximum DC voltage supply of 30 V with PNP output and 200 mA switching current.

Operating temperature range of -25°C to 70°C suitable for varied industrial environments. Compact size - length 25.5 mm, width 17 mm, depth 15 mm - for flexible installation. Maximum switching frequency is 1 kHz for timely response in control systems.

Unshielded proximity sensor suitable for cylinders 8 to 80 mm diameter with strap lock attachment. Discover the full range of industrial sensors and automation control gear at EnvMart to enhance your operational efficiency and reliability.
