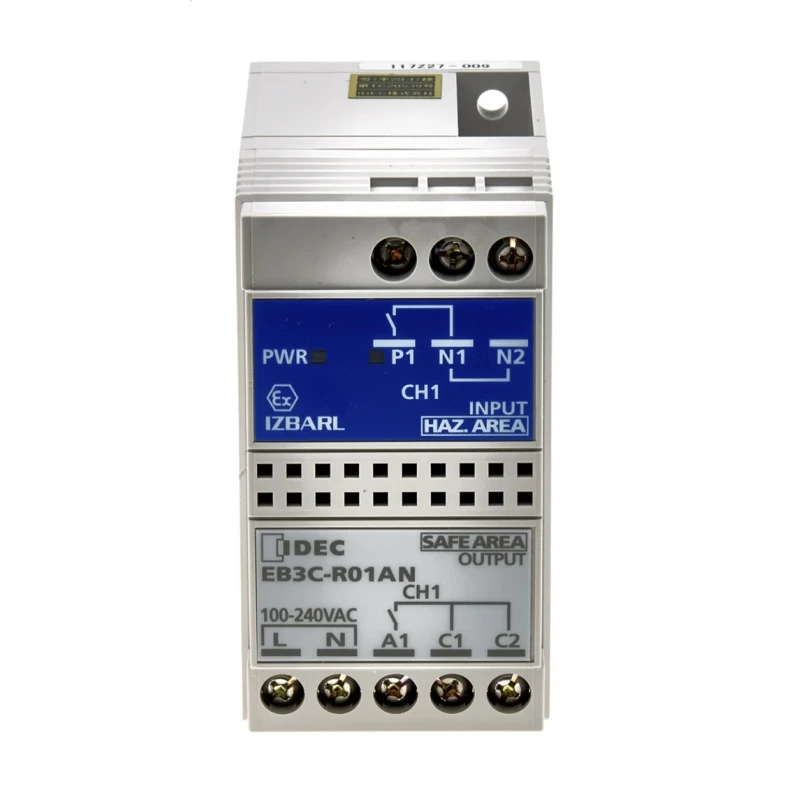

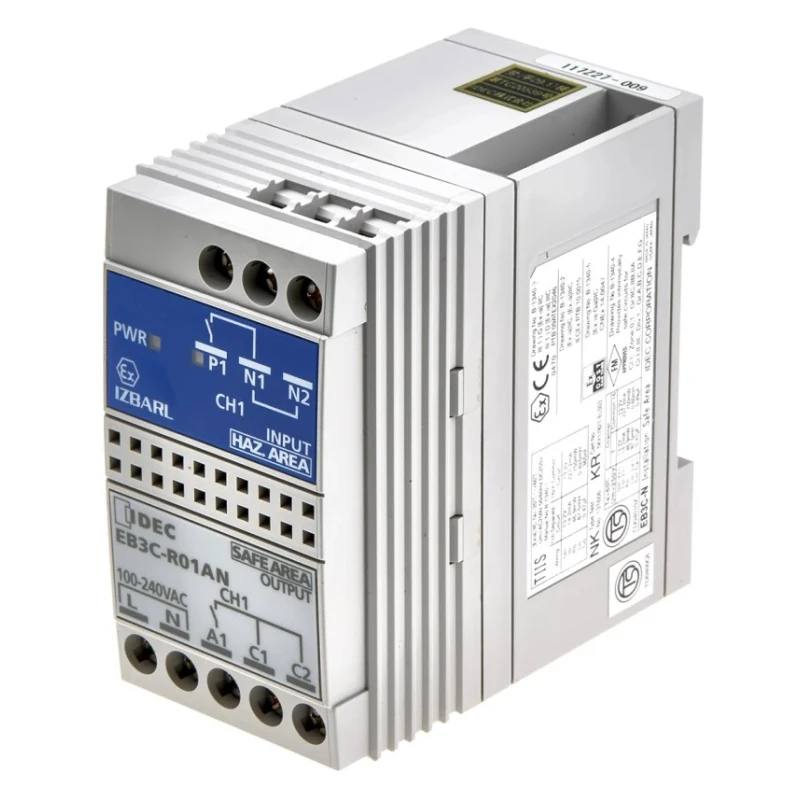

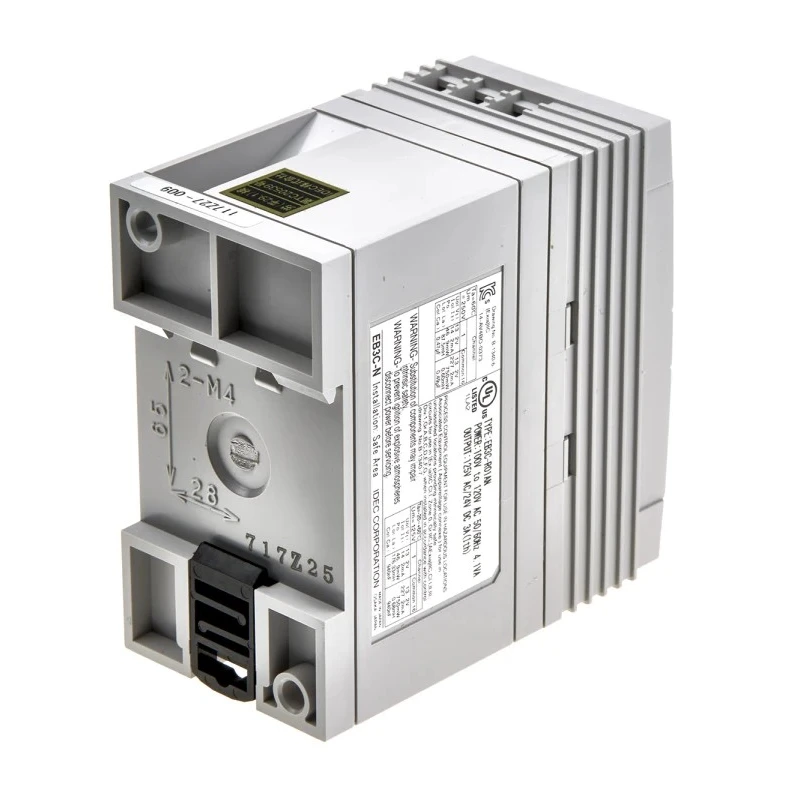

Idec Single-Channel Relay Barrier Zener Isolation Barrier DIN Rail Mount 100-240V AC 14.2mA ATEX EB3C-R01AN
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Idec |
| Model | EB3C-R01AN |
| IP Rating | IP20 |
| Mount Type | DIN Rail |
| Series | EB3C |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -20°C |
| Terminal type | Screw |
| Number Of Channels | 1 |
| Supply Voltage | 100, 240V ac |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | CE, FM, IEC, UL |
| Barrier Type | Relay Barrier |
| Safety Current Resistance | 300Ω |
| Maximum Safety Current | 14.2mA |
| Maximum Safety Voltage | 250V ac |
Key Features
- This Zener barrier features a relay barrier type designed for safe electrical isolation.
- It supports a single channel with safety current resistance of 300 ohms.
- The device can safely operate up to 14.2mA current and 250V AC maximum safety voltage.
- Equipped with screw-type terminals for secure wiring and easy installation.
- The operating temperature ranges from -20°C to 60°C, suitable for various environments.
- Its IP20 rating protects against solid objects larger than 12mm, compliant with IEC standards.
- The mounting method supports 35mm wide DIN rail or direct screw mounting options.
- Certified by CE, FM, IEC, and UL standards ensuring reliable safety and compliance.
Product Description
Idec EB3C-R01AN single-channel relay barrier Zener isolation barrier is engineered for hazardous area safety with ATEX certification. It operates with a supply voltage range of 100 to 240V AC, making it compatible with a wide range of industrial and electrical systems. This device provides galvanic isolation to protect control systems in explosive atmosphere environments.
Designed for mounting on a 35mm DIN rail or direct screw fixation, the EB3C-R01AN offers versatile installation options. Its single-channel relay barrier ensures safe signal transmission and electrical isolation with a safety current resistance of 300 ohms. The maximum allowable safety current is 14.2mA with a maximum safety voltage of 250V AC.
The device features screw terminal connectors which optimize wiring efficiency and reliability. It is suitable for use in environments with operating temperatures ranging from -20°C to 60°C and complies with IP20 ingress protection standards, protecting against solid objects but not water ingress.
Fully compliant with CE, FM, IEC, and UL standards, this Zener barrier is ideal for use in industrial automation, electrical signaling, and control applications within explosive gas zones and class 1 division 1 areas. It ensures operator safety and system integrity in hazardous locations.
This Zener Barrier features a relay barrier type designed for safe electrical isolation. It supports a single channel with safety current resistance of 300 ohms. The device can safely operate up to 14.2mA current and 250V AC maximum safety voltage.
Equipped with screw-type terminals for secure wiring and easy installation. The operating temperature ranges from -20°C to 60°C, suitable for various environments. Its IP20 rating protects against solid objects larger than 12mm, compliant with IEC standards.
The mounting method supports 35mm wide DIN rail or direct screw mounting options. Certified by CE, FM, IEC, and UL standards ensuring reliable safety and compliance. Constructed for use in explosive gas and Zone 0/Class 1 Division 1 hazardous locations.
This product is manufactured in Japan, reflecting high-quality standards and reliability. It is widely used in industrial automation, hazard detection systems, process control, and instrumentation in hazardous environments.
Explore our wide selection of signal conditioning and isolator products at EnvMart to find compatible components and accessories for your automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum safety voltage for this model is 250V AC.
It operates within a temperature range of -20°C to 60°C.
This unit supports a single channel.
It is equipped with screw-type terminals for secure wiring.
The safety current resistance is 300 ohms.
It is certified by CE, FM, IEC, and UL standards, as well as ATEX for hazardous areas.
The supply voltage range is 100 to 240V AC.
This model has an IP20 rating, protecting against solid objects larger than 12mm.
It can be mounted on a 35mm DIN rail or directly with screws.
The maximum safety current is 14.2mA.
This model belongs to the EB3C series.
It is manufactured in Japan.
