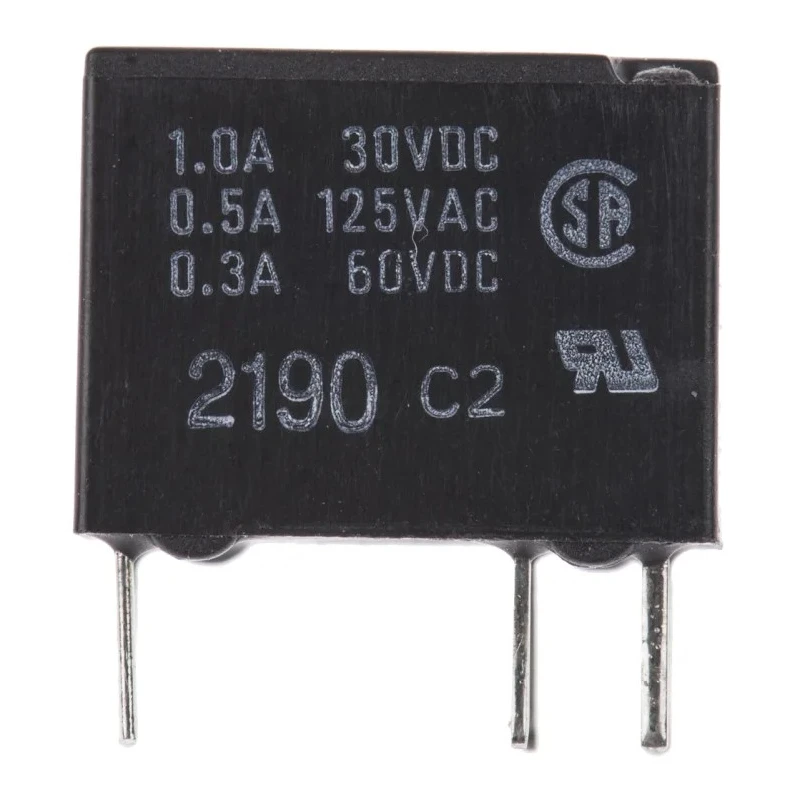

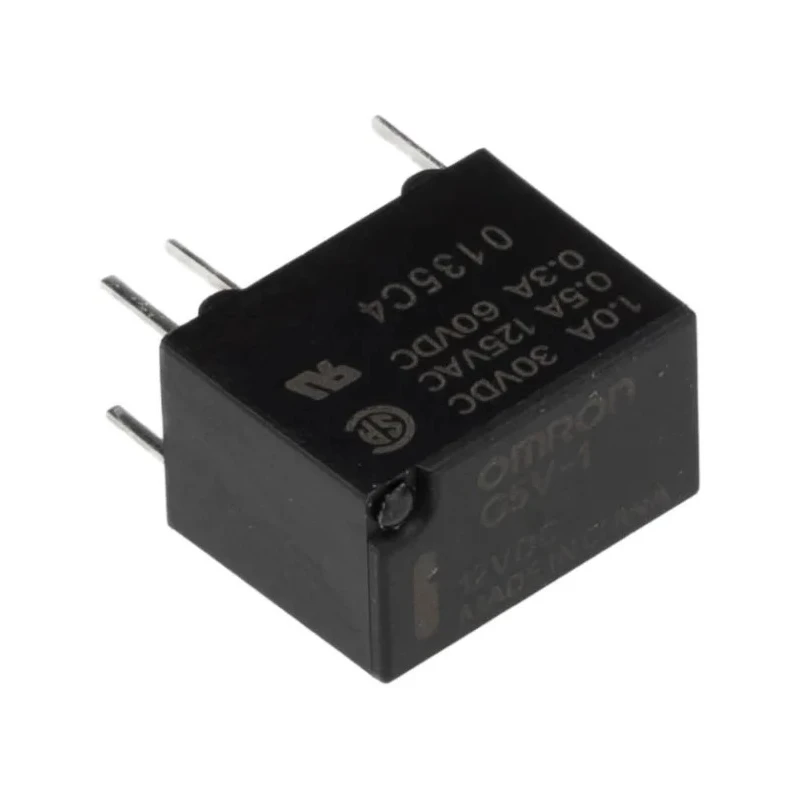

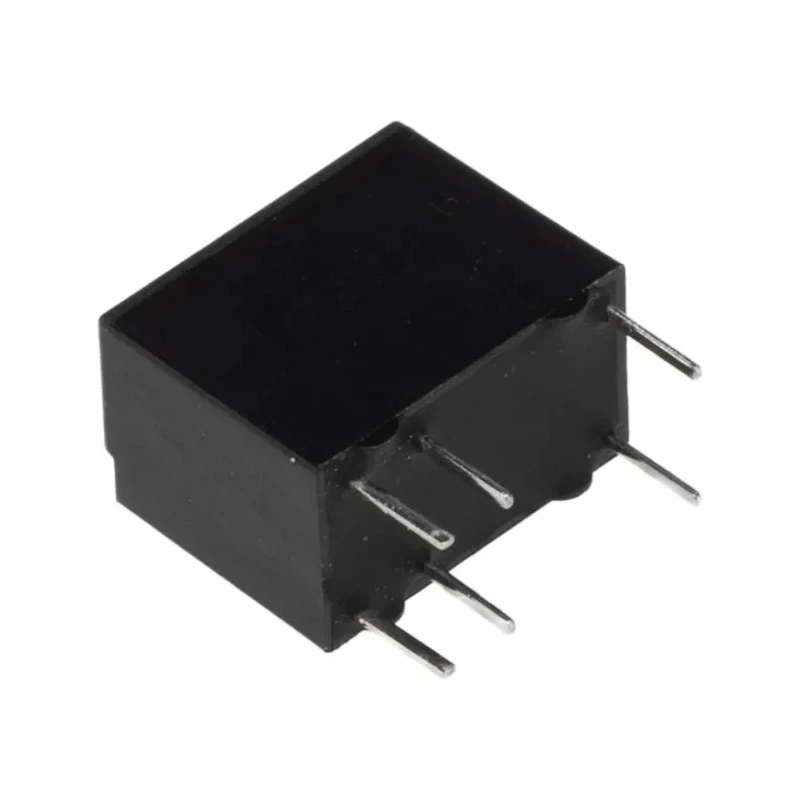

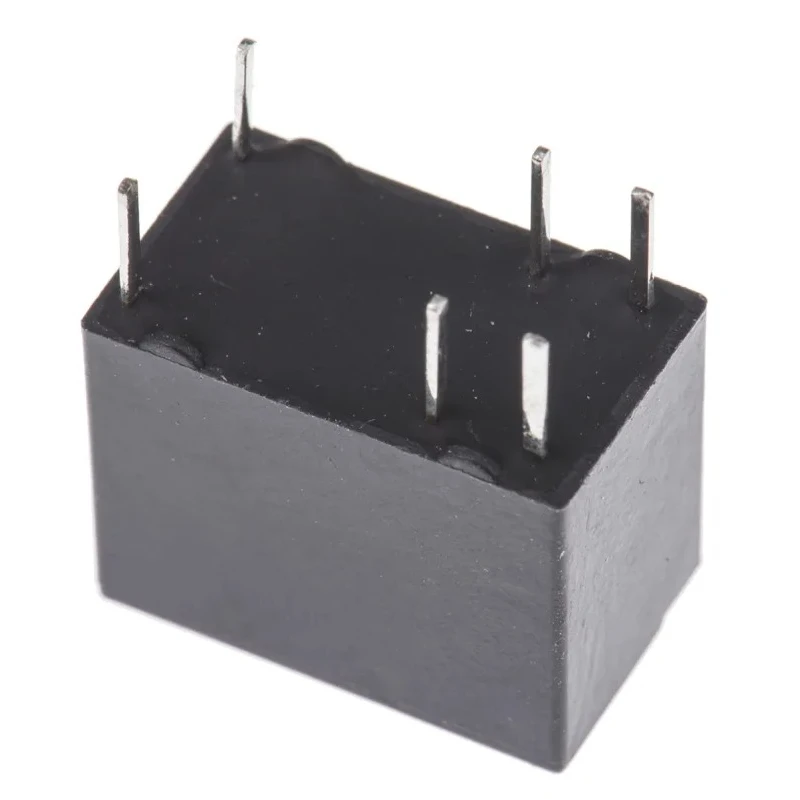

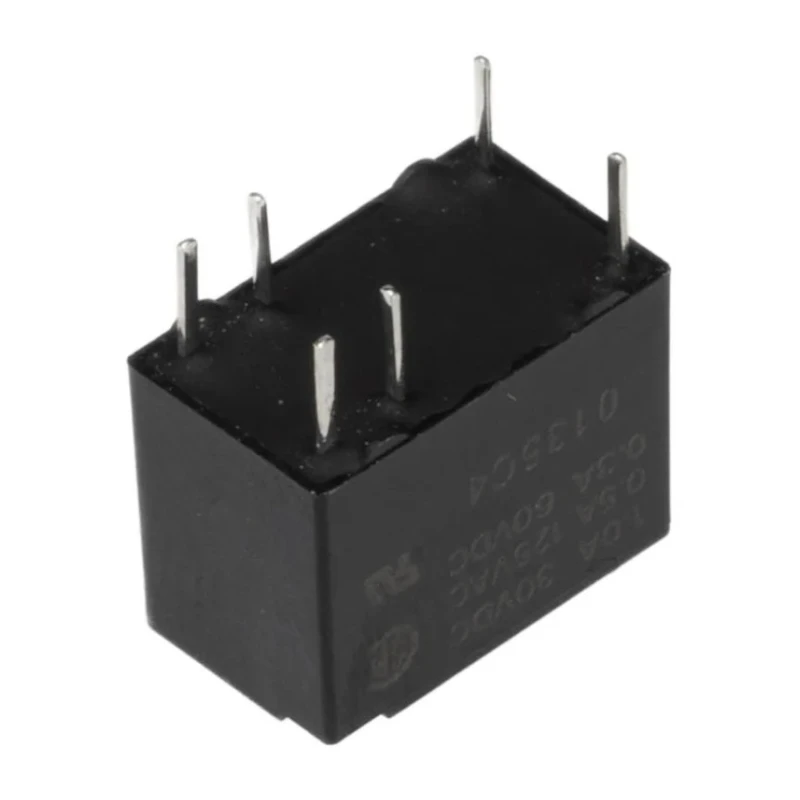

Omron PCB Signal Relay 12V DC Coil 2A SPDT Compact Gold-Plated Contacts G5V-1 DC12

The Omron G5V-1 DC12 PCB Signal Relay is a high-quality electronic relay designed for reliable signal switching in automation, electrical panels, and signal processing circuits. Featuring a compact body measuring 12.5 x 10 x 7.5 mm, the relay fits easily onto PCB boards, making it suitable for tight electronic layouts.

This relay operates with a coil voltage of 12V DC and delivers a maximum switching current of 2A. Its contact configuration is SPDT (Single Pole Double Throw), providing versatile switching capabilities for both AC and DC circuits. The relay can handle voltages up to 125V AC and 60V DC, giving it broad applicability in control and monitoring equipment.

Gold-plated bifurcated contacts ensure stable, reliable switching and improve conductivity while reducing contact wear. It is designed for durability, with a long lasting electrical life of up to 5 million cycles, significantly lowering the frequency of replacement and maintenance.

Operating reliably from -40°C up to 70°C, the G5V-1 DC12 accommodates a variety of environmental conditions, supporting both indoor and outdoor industrial use. Coil resistance is specified at 960 Ω, with a power consumption of only 150 mW, ensuring efficient operation and minimal energy use.

Solder terminal type and RoHS compliance make installation straightforward and support industrial safety standards. Applications include signal processing circuits, relay-based control systems, switching electronic components, and monitoring equipment in industrial, laboratory, and automation environments.

This relay's compact size and robust performance make it ideal for manufacturing, automation, robotics, HVAC, and electronic device control systems. Users benefit from its reliable operation, extended life expectancy, and ease of integration with PCB mount designs.

Supports single pole double throw (SPDT) contact configuration for versatile switching applications. Delivers a 2A switching current and can handle up to 125V AC or 60V DC power. Gold-plated bifurcated contacts for enhanced conductivity and durability.

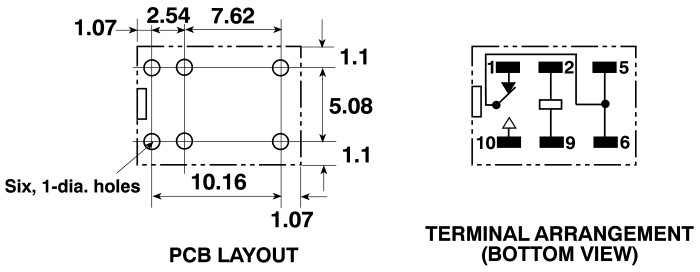

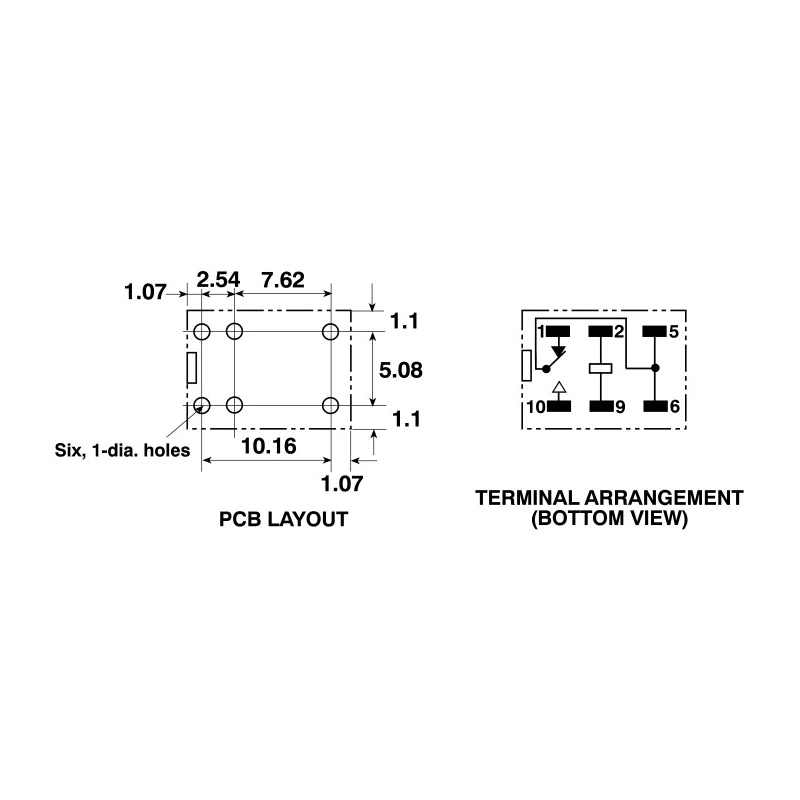

Reliable performance across a wide operating temperature range from -40°C to 70°C. Compact PCB mountable relay with 12.5 x 10 x 7.5 mm dimensions ideal for tight electronic spaces. Long service life with up to 5 million cycles, minimizing maintenance requirements.

Minimal coil power consumption of 150 mW, with coil resistance rated 960 Ω. Compliant with RoHS standards and suitable for automation, signal processing, and relay-based control systems. Explore more Omron Signal Relays and automation components at EnvMart for industrial control and electronic applications.
