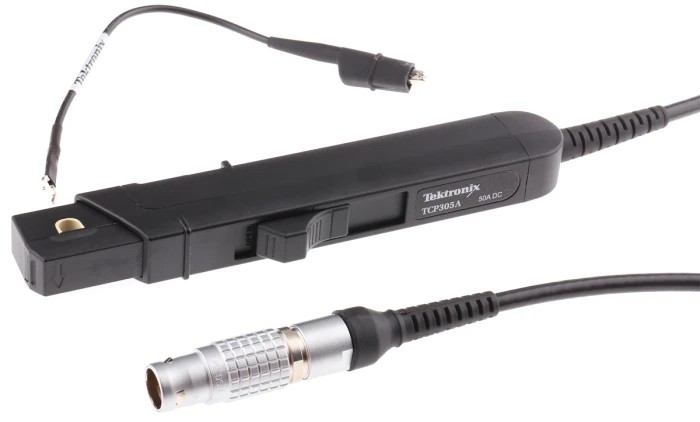

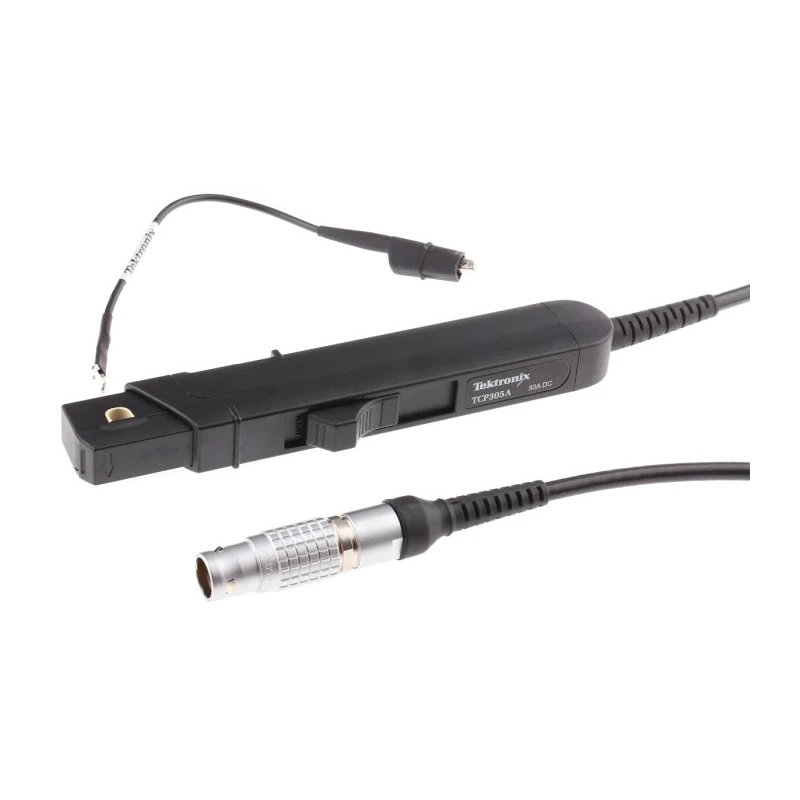

Tektronix TCP300 Series Current Oscilloscope Probe 50 MHz Bandwidth BNC Connector TCP305A
Specifications
| Country of Origin | China |
|---|---|
| Brand | Tektronix |
| Model | TCP305A |
| Connector Type | BNC |
| Bandwidth | 50MHz |
| Series | TCP300 |
| Probe type | Current |
| Rise Time | 7ns |
| Number of Probes | 1 |
| Safety Category Level | CAT II |
| Safety Category Voltage | 300V |
| Tektronix TCP305 Current Probe & ClampBrand | Tektronix |
Key Features
- Bandwidth from DC to 50 MHz allows accurate current measurement across a wide frequency range.
- Minimum measurable current is 5 mA for precise low current detection.
- Insertion impedance of 0.35 ohm at 50 MHz minimizes loading effect on tested circuits.
- Rise time of 7 ns enables rapid response for dynamic measurements.

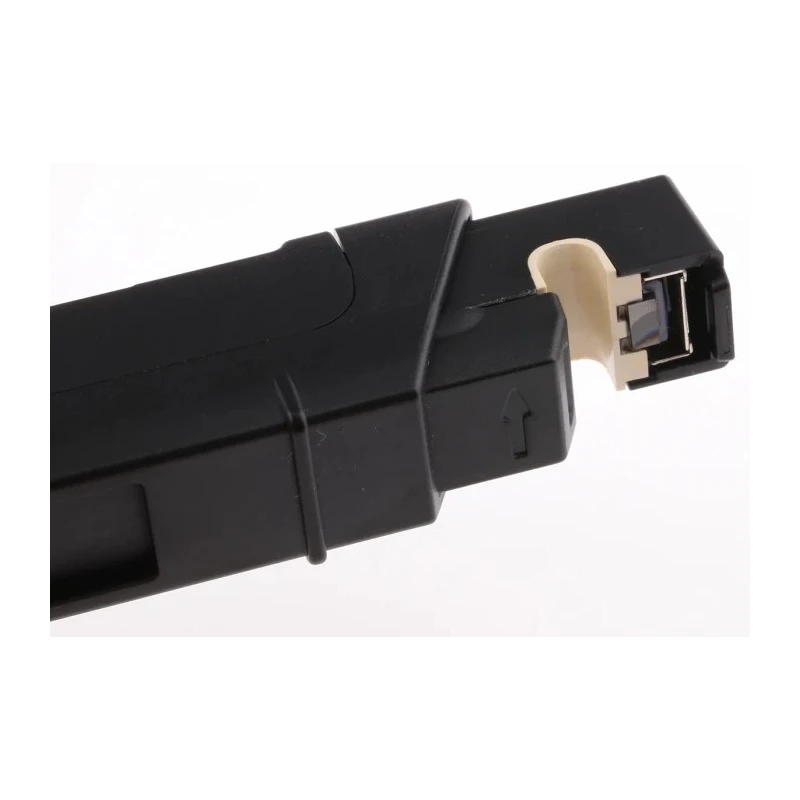

- Split-core construction ensures easy connection without circuit disruption.
- Visual status indicators alert to probe condition including overload, open circuit, and termination errors.
- Low DC drift and noise improve accuracy for low level current measurements.
- Safe operation with CAT II 300 V and voltage limits for bare wire insulation at 150 V CAT II.
Product Description
Tektronix TCP305A Current Oscilloscope Probe is designed for detailed current measurement with a bandwidth up to 50 MHz and a BNC connector for reliable signal interfacing. It supports continuous DC current measurement and combines low insertion impedance with high accuracy, enabling precise amplitude readouts on oscilloscopes.
This probe has a rise time of 7 ns and can measure currents from 5 mA upwards. The split-core design simplifies circuit connection, easing use in test and measurement environments. Visual indicators on the probe provide real-time status to minimize mismeasurement risk due to overload, open circuit, or improper termination.
Compliant with UL 61010-1, UL 61010-2-032, EN 61010-1, EN 61010-2-032 and the equivalent CAN/CSA standards, the TCP305A ensures safe operation with a voltage rating of CAT II 300 V and bare insulated wire voltage up to CAT II 150 V. These certifications make it suitable for professional laboratory, industrial, and telecom environments.
Applications include electronic development and analysis, installations, telecommunications, data communications, semiconductor testing, and power electronics diagnostics. The low noise and minimal drift characteristics enhance performance in demanding measurement tasks, providing engineers and technicians with trustworthy results.
The TCP305A requires use with the TCPA300 amplifier (available separately), providing a measurement range spanning milliamp levels to high currents. Its low gain error and broad bandwidth facilitate versatile current sensing solutions.
Bandwidth from DC to 50 MHz for versatile current measurement. Minimum current detection starts at 5 mA for sensitive applications. Low insertion impedance reduces impact on test circuits. Split-core design for convenient and safe circuit access.
Visual status indicators enhance operational safety and accuracy. UL, CAN/CSA, and EN safety certified to CAT II 300 V. Rise time of 7 nanoseconds supports fast transient measurements. Ideal for development, telecom, semiconductor, and power electronics sectors.
Explore more Tektronix test and measurement products on EnvMart for comprehensive instrumentation solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Tektronix TCP305A probe has a bandwidth of 50 MHz, allowing for accurate current measurement across a wide frequency range.
The minimum measurable current for the TCP305A is 5 mA, which enables precise low current detection.
The TCP305A has an insertion impedance of 0.35 ohm at 50 MHz, which minimizes the loading effect on tested circuits, ensuring more accurate measurements.
This model features a rise time of 7 ns, which supports rapid response for dynamic measurements.
The TCP305A uses a BNC connector, providing reliable signal interfacing for oscilloscopes.
The TCP305A is compliant with UL 61010-1, UL 61010-2-032, EN 61010-1, EN 61010-2-032, and equivalent CAN/CSA standards, ensuring safe operation.
The safety category voltage rating for the TCP305A is CAT II 300 V, with bare insulated wire voltage limits of CAT II 150 V.
The TCP305A is suitable for applications in electronic development, telecommunications, data communications, semiconductor testing, and power electronics diagnostics.
The TCP305A includes visual status indicators that alert users to probe conditions such as overload, open circuit, and termination errors, enhancing operational safety and accuracy.
The TCP305A features a split-core construction, which simplifies circuit connection without disrupting the circuit, making it easier to use in test environments.
The TCP305A requires use with the TCPA300 amplifier (available separately) to provide a measurement range spanning milliamp levels to high currents.
The TCP305A includes one probe, designed for detailed current measurement.
