BK Precision 4055 Arbitrary Waveform Generator 50 MHz Max, 2-Channel, 1 Hz Min BK4055B

BK Precision BK4055B Arbitrary Waveform Generator is a versatile and high-performance signal generator designed for precise waveform generation up to 50 MHz maximum frequency. This device provides two independent output channels and supports waveform frequencies from as low as 1 Hz, making it suitable for a wide range of laboratory, industrial, and educational applications.

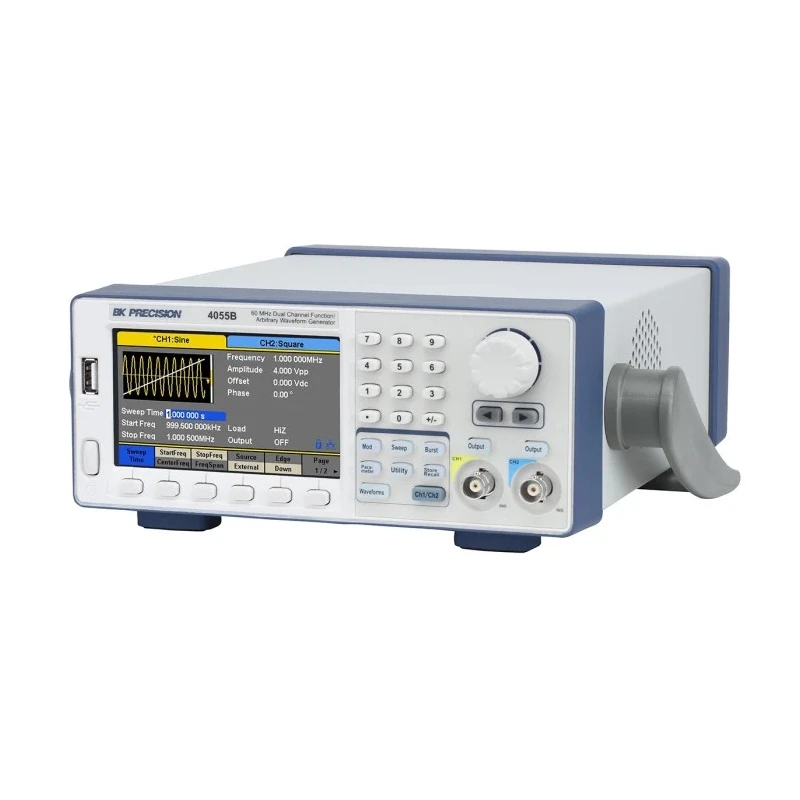

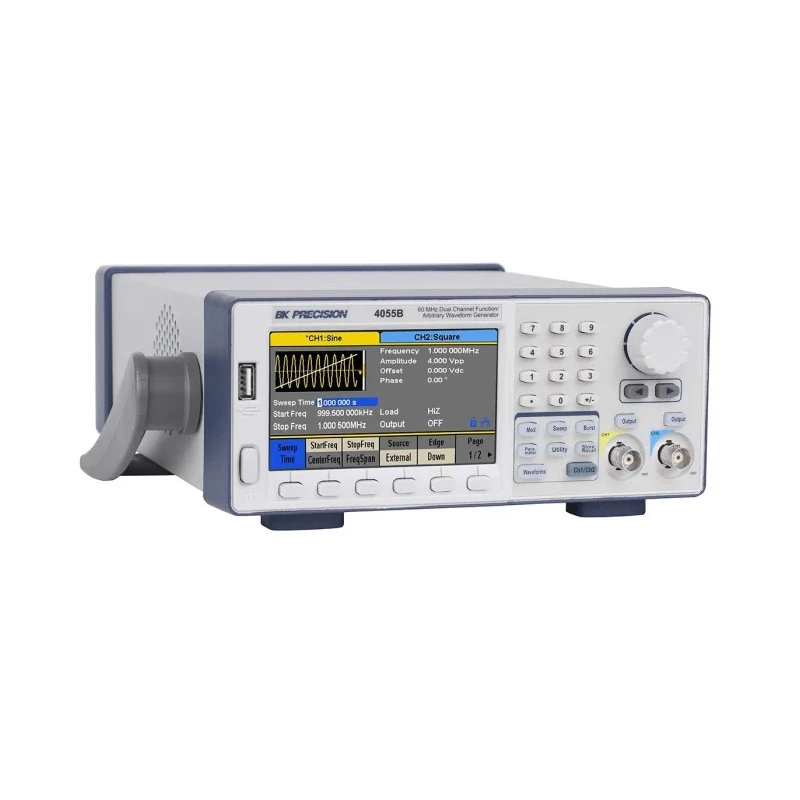

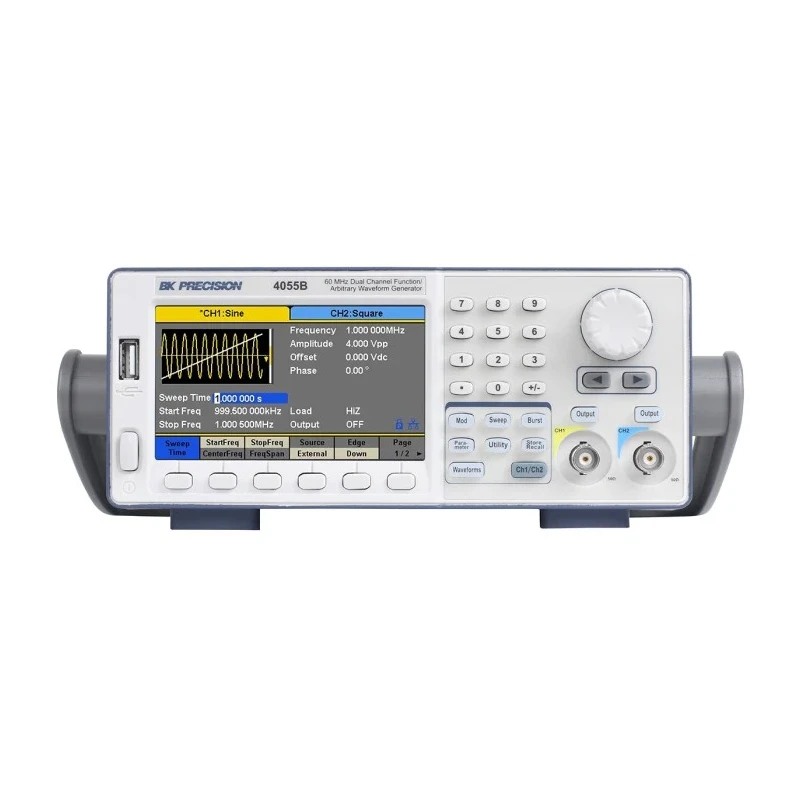

The generator features a large 3.5-inch TFT LCD color display with waveform preview, ensuring ease of operation and visualization of output signals. It incorporates a keypad interface, allowing swift entry of parameters and settings, along with built-in memory enabling storage and recall of up to 10 instrument settings and 10 arbitrary waveforms.

Advanced features include a 16k point waveform memory per channel, 14-bit resolution with 4-digit frequency resolution, and a sampling rate of 125 MSa/s. Users gain access to multiple sweep modes (linear, logarithmic, up or down) and a comprehensive range of modulation types including AM, DSB-AM, ASK, FM, FSK, PM, and PWM. Variable DC offset and adjustable duty cycle further add to the flexibility of signal output.

Connectivity is ensured through USB device and front panel USB host ports, along with GPIB interface compatibility. The device supports internal and external triggering, gate and burst modes, and includes a built-in frequency counter. All output connections use standard BNC connectors, with short circuit protection on outputs for safety.

This waveform generator is ideal for telecommunication testing, electronic design and development, electronics laboratory experiments, educational use, and routine service and maintenance tasks. Its robust construction and compliance with international standards such as CE ensure reliable operation in various industrial and laboratory environments.

Set includes the BK Precision 4055 device, getting started manual, full instruction manual on CD, AC power cord, USB Type A to Type B cable, and a certificate of calibration. The product is manufactured in China and is CE certified.

Supports frequencies from 1 Hz to 50 MHz maximum with 2 independent channels. 16k point arbitrary waveform memory per channel with 14-bit resolution. Large 3.5-inch TFT LCD color display with waveform preview and keypad data entry.

Multiple modulation capabilities including AM, DSB-AM, ASK, FM, FSK, PM, and PWM. USB and GPIB interfaces for connectivity and remote operation. Variable DC offset and adjustable duty cycle for output flexibility. Built-in counter and extensive triggering options including internal and external.

BNC connectors with output short circuit protection for safety. Ideal for telecommunications, electronics labs, educational institutes, and service maintenance. Complies with CE standards and includes calibration certificate.
