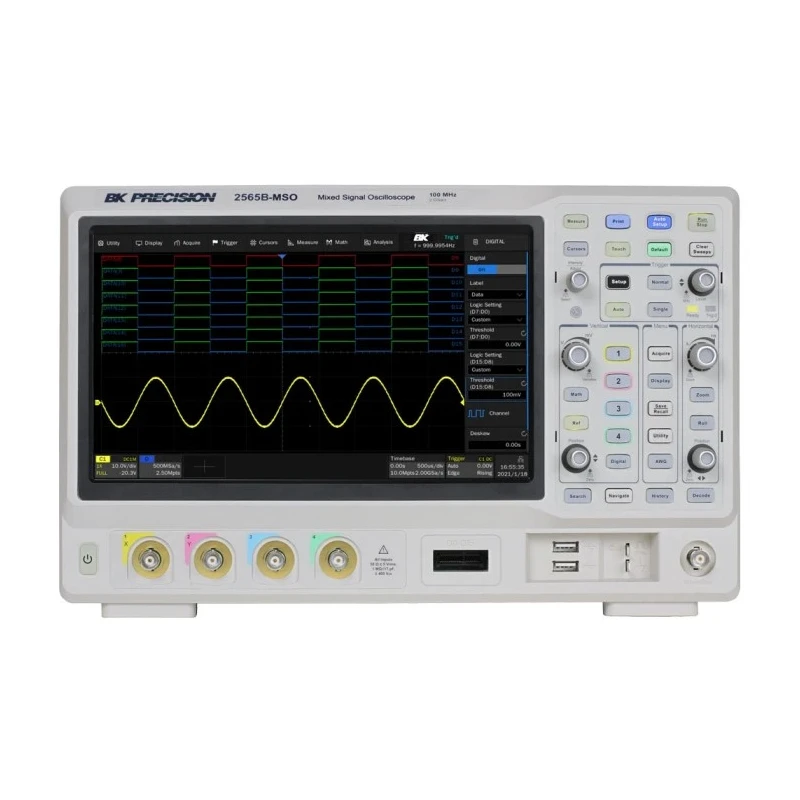

BK Precision 100 MHz Bench Oscilloscope 4-Channel with 10.1 Inch Capacitive Touchscreen Display BK2565B-MSO

BK Precision BK2565B-MSO is a powerful 100 MHz bench oscilloscope with 4 analog channels and 16 digital channels, designed for precise industrial, laboratory, and manufacturing test and measurement applications. Equipped with a large 10.1 inch TFT-LCD capacitive touchscreen offering 1024 x 600 resolution, it enables intuitive control and clear signal visualization.

This digital storage and mixed signal oscilloscope series supports up to 2 GSa/s sample rate and 200 Mpts memory depth, ensuring high-fidelity waveform capture and analysis. It features advanced software functions such as zone triggering, Bode plots, and power analysis, making it well-suited for detailed signal and power supply diagnostics.

BK2565B-MSO includes serial decoding for industry-standard protocols like I2C, SPI, UART, CAN, and LIN, with optional upgrades for FlexRay, I2S, CAN FD, MIL-STD-1553B, SENT, and Manchester protocols. The integrated 50 MHz arbitrary waveform generator enhances testing flexibility.

Connectivity options are comprehensive, with standard LAN, USBTMC-compliant USB device port, and two USB host ports, plus remote operation via web or PC software. The package contains the oscilloscope with logic probe set providing 16 digital channels, supporting complex mixed signal testing needs.

Offers 100 MHz bandwidth suitable for a wide range of electronic testing applications. Features 4 analog channels plus 16 digital channels with included logic probe set. Includes a large 10.1" capacitive touchscreen with 1024 x 600 resolution for intuitive operation.

Supports serial bus decoding for I2C, SPI, UART, CAN, and LIN protocols standard. Equipped with a 50 MHz arbitrary waveform generator and comprehensive power analysis tools. Maximum sample rate of 2 GSa/s with up to 200 Mpts memory depth for detailed signal analysis.

Provides advanced triggers including zone triggers and segmented acquisition for complex debugging. Connectivity includes standard LAN, USBTMC-compliant USB device port, and two USB host ports. Remote control capability available via built-in web server or PC software for flexible testing setups.

This bench oscilloscope is ideal for industrial automation, electronics development, manufacturing quality control, research laboratories, and educational institutions requiring precise waveforms and protocol analysis.
