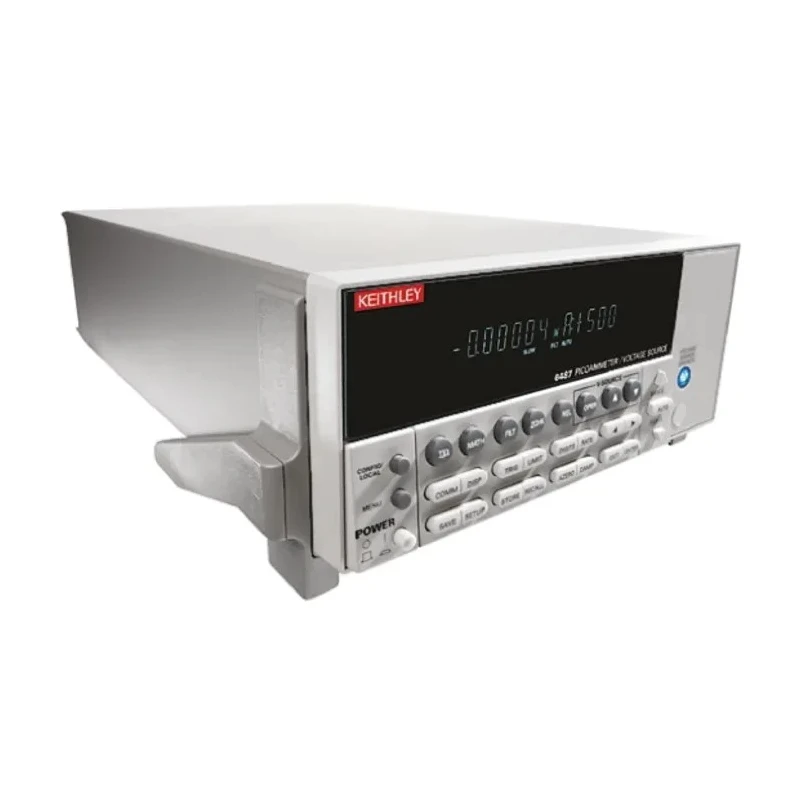

Keithley 6487/E Bench Picoammeter Digital Multimeter 20mA DC 505V Voltage Measurement 6487/E

Keithley 6487/E Bench Picoammeter is a high-precision digital multimeter designed for measuring low DC currents with sensitivity close to electrometers at a more economical cost. It combines an easy-to-use interface with advanced measurement capabilities and robust construction, making it suitable for laboratory, industrial, and research applications requiring precise current and voltage measurement.

The instrument supports eight current ranges from 20 femtoamperes up to 20 milliamperes and can perform measurements at speeds up to 1000 readings per second. Voltage can be sourced from 200 microvolts up to 505 volts DC. Direct resistance measurement is optimized for resistance values ranging from 50 ohms to 5x10¹⁴ ohms using the Source Voltage/Measure Current technique.

The alternating voltage method extends resistance measurement capability up to 10¹⁶ ohms, beneficial for devices impacted by high background current or noise. The unit is designed to tolerate abusive overloads up to 500 V, protecting components during accidental short circuits or voltage surges.

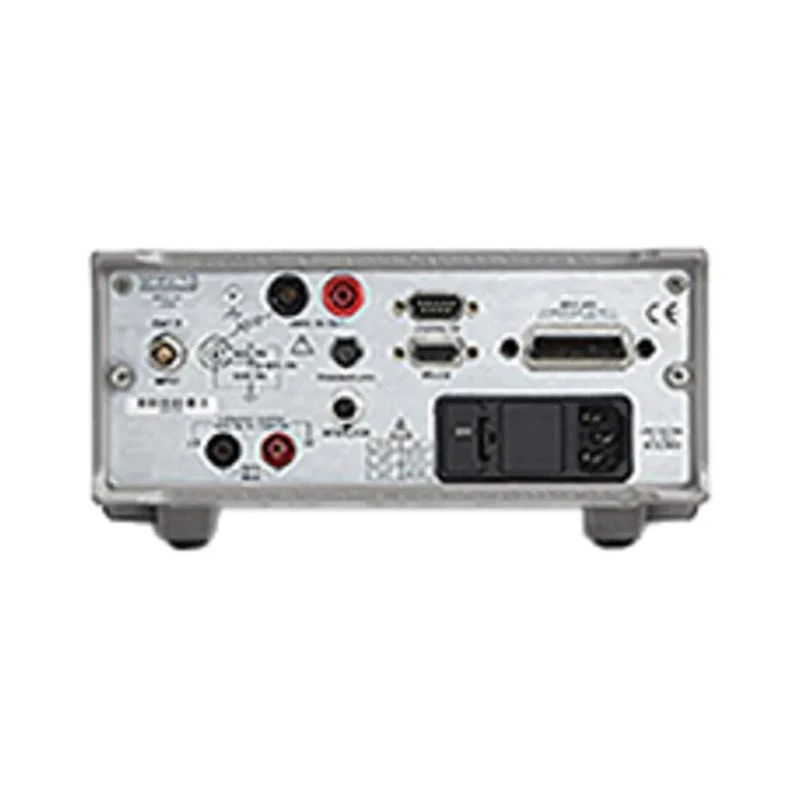

The rear panel Triax input allows the picoammeter to be operated in floating mode up to 500 V. When not floating, a Triax to BNC adapter may be used, enabling the use of cost-efficient BNC cables. Communication interfaces include RS-232 and IEEE-488, facilitating easy integration with automated test and measurement systems.

A scaled voltage analog output enables transmission of measurement results to devices such as digital multimeters, oscilloscopes, or strip chart recorders. The built-in Trigger Link Interface simplifies synchronization with other instruments through six independent trigger lines on a single connector, allowing precise control in complex setups.

For testing light-sensitive components, including dark currents in photodiodes or I-V measurements on unpackaged semiconductors, the front panel display may be turned off to prevent light interference. Overall, the Keithley 6487/E delivers robust, accurate, and versatile measurement performance critical in industrial, laboratory, environmental, and manufacturing environments.

Measures low DC currents with high sensitivity and digital multimeter ease of use. Overload protection up to 500 V ensures device robustness and safety. Multiple communication interfaces support automation and remote control integration.

Flexible input configurations facilitate floating operation and easy cable management. Trigger Link Interface provides multi-line synchronization across test instruments. Explore more in the Electrical Test & Measurement category for precise and reliable instrumentation solutions.
