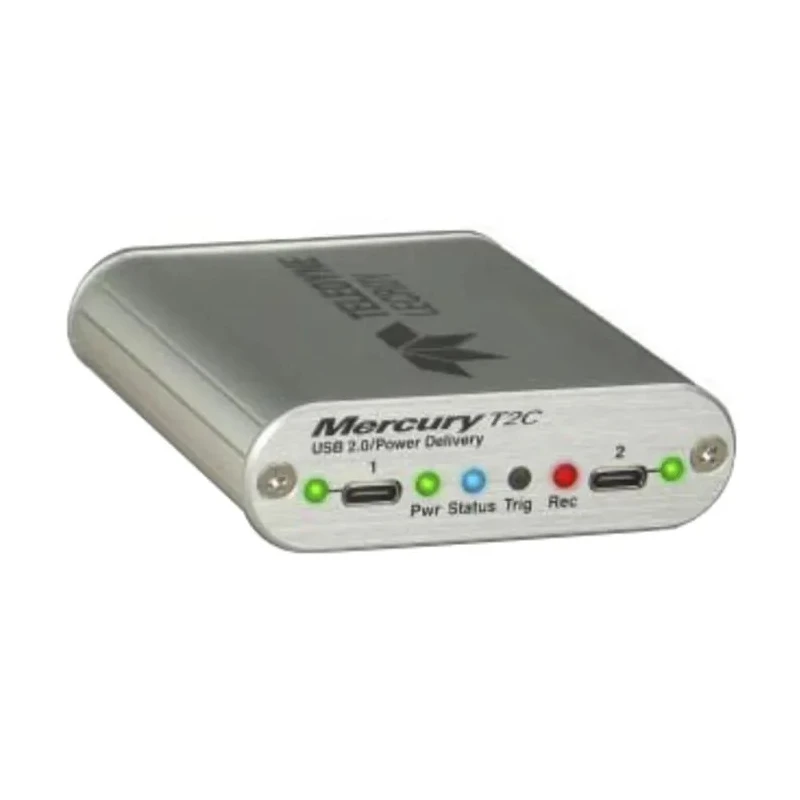

Teledyne LeCroy USB 2.0 Protocol Analyser with USB Type-C and Power Delivery 3.0 Support USB-TMS2-M02-X

Free Delivery in India | Lowest Global Shipping Charges

Teledyne LeCroy USB 2.0 Protocol Analyser with USB Type-C and Power Delivery 3.0 Support USB-TMS2-M02-X

Name: Teledyne LeCroy USB 2.0 Protocol Analyser with USB Type-C and Power Delivery 3.0 Support USB-TMS2-M02-X
Brand: Teledyne LeCroy
SKU: 211027
Price: 2708.64 USD
Availability: InStock



Category Test & Measurement Instruments Brand Teledyne LeCroy Condition New

Specifications

Country of Origin	United States
Brand	Teledyne LeCroy
Height	90mm
Length	24mm
Model	USB-TMS2-M02-X
Width	80mm
Maximum Operating Temperature	55°C
Minimum Operating Temperature	0°C
Interfaces	USB Type-C and BMC Power Delivery 3
Connectors	USB 2.0
Memory size	512MB
Supported Protocols	USB 2.0
Standard Trigger Events	Data Length, Type C logical states, Splits, Transactions, Token Pattern, Device Request, PD Messages, Bus Conditions, Packet Identifier, Data Pattern, Errors, Frame Pattern

Key Features

Supports USB 2.0 speeds (LS, FS, HS) over Type-A, B, and C devices.
Includes USB Type-C and BMC Power Delivery 3.0 protocol capture and decode.
512MB recording memory with spool-to-disk capture for extended recordings.
Real-time triggering enables isolation of specific protocol events.
Graphical CATC Trace™ display facilitates expert USB and Power Delivery analysis.
Compact, bus-powered design fits in a shirt pocket and weighs under 8 oz.
Operating temperature range from 0°C to 55°C for versatile environments.
Enables measurement and reporting of USB traffic and statistics.

Product Description

Teledyne LeCroy USB-TMS2-M02-X is an advanced USB 2.0 protocol analyser with integrated USB Type-C and Power Delivery 3.0 support. This compact device provides a hardware-based solution for analyzing USB protocol traffic, enabling engineers to decode and debug USB transactions and Power Delivery negotiations with industry-leading CATC Trace™ software.

Equipped with 512MB of recording memory, the device supports spool-to-disk capture for extended analysis sessions. It features real-time triggering and drag-and-drop selections for isolating protocol events such as PID types, data patterns, and bus errors, enhancing the ability to capture intermittent protocol issues.

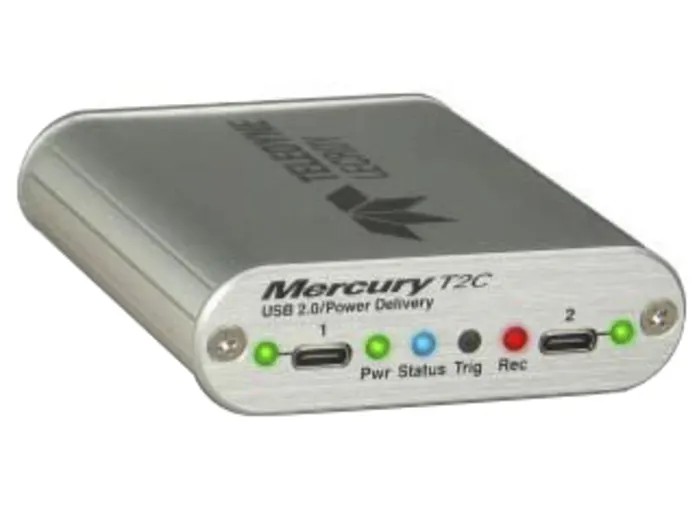

The Mercury T2C analyser supports capture and decode of all USB 2.0 speeds including Low Speed (LS), Full Speed (FS), and High Speed (HS) across Type-A, Type-B, and Type-C connectors.

The compact, bus-powered analyser weighs under 8 oz, making it suitable for field use. Its operating range spans from 0°C to 55°C ensuring reliability in diverse environments. The software interface provides statistical traffic summaries and bus utilization reports facilitating quick identification of USB communications issues.

The USB-TMS2-M02-X protocol analyser is ideal for developers, testers, and quality assurance teams working in industrial, manufacturing, electronics test, and USB device certification applications.

Supports USB Power Delivery 2.0 and 3.0 protocol messages capture and decode. 512MB memory capable of extended capture sessions with spool-to-disk recording. Real-time triggering for targeted capture of protocol events and errors.

USB speeds supported: LS, FS, HS with Type-A, Type-B, and Type-C connectors. Compact and portable design weighing under 8 oz with bus-powered operation. Operating temperature range: 0°C to 55°C for versatile application environments.

Advanced CATC Trace™ graphical software for expert protocol analysis. Explore our full range of test and measurement instruments from leading brands including Teledyne LeCroy to ensure accurate USB protocol testing and compliance.
