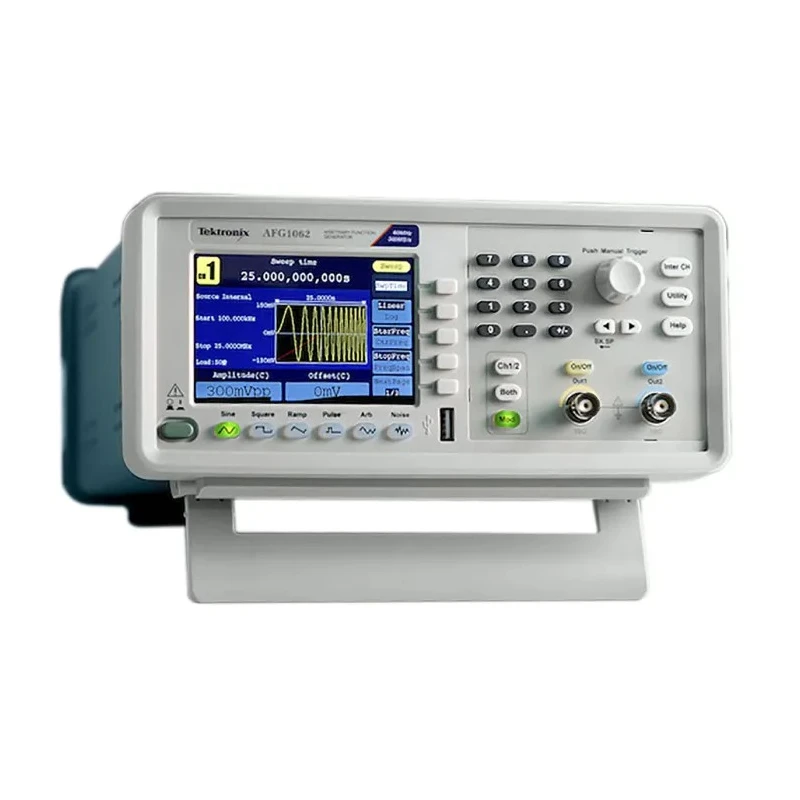

Tektronix Arbitrary Waveform Generator 60 MHz Max, 2-Channel, 1 Hz Min AFG1062
Specifications
| Country of Origin | China |
|---|---|
| Resolution | 1 μHz |
| Display Type | LCD |
| Brand | Tektronix |
| Height | 110mm |
| Length | 230mm |
| Model | AFG1062 |
| Connector Type | BNC |
| Gross Weight | 3.4kg |
| Width | 306mm |
| Sampling rate | and 14-bit vertical resolution enable great signal fidelity |
| Maximum Operating Temperature | 40°C |
| Inputs | Modulation Input |
| Minimum Operating Temperature | 0°C |
| Interfaces | Standard USB host/device for memory expansion and remote control |
| Number Of Channels | 2 |
| Interface Type | USB |
| Maximum Output Amplitude | 20V Pk-Pk |
| Standards/Approvals | RoHS |
| Maximum Frequency | 60MHz |
| Minimum Frequency | 1Hz |
| Maximum Frequency Triangle Ramps | 2MHz |
| Maximum Pulse Width | 40 ns |
| Rise - Fall Time | 8ns |
| Pulse Resolution | 1ns |
Key Features
- High fidelity signal generation with 300 MS/s sampling rate and 14-bit vertical resolution.
- Output amplitude adjustable from 1 mVp-p to 10 Vp-p across the frequency range.
- Wide range of built-in standard and arbitrary waveforms for versatile testing.
- Intuitive user interface with 3.95inch TFT colour display and shortcut controls.
- Compact dual channel form factor saves valuable bench space.
- Supports continuous, modulation, sweep, and burst modes for comprehensive test flexibility.
- Built-in 200 MHz frequency counter with 6-digit resolution enhances measurement accuracy.
- Includes free ArbExpress software for easy waveform editing and storage.
Product Description
Tektronix AFG1062 Arbitrary Waveform Generator is a sophisticated instrument designed for precise signal generation with a maximum frequency of 60 MHz and two independent channels. It features a minimum frequency of 1 Hz, making it suitable for a broad range of testing scenarios in industrial, laboratory, educational, and electronics development environments.
Equipped with a 300 MS/s sampling rate and 14-bit vertical resolution, this waveform generator ensures excellent signal fidelity. The device supports output amplitudes ranging from 1 mVp-p to 10 Vp-p, maintaining signal accuracy over the entire frequency range.
The waveform generator offers 50 built-in standard and arbitrary waveforms alongside continuous, modulation, sweep, and burst operating modes, allowing it to meet diverse test requirements including electrical and communication experiments, sensor simulation, and embedded design testing.

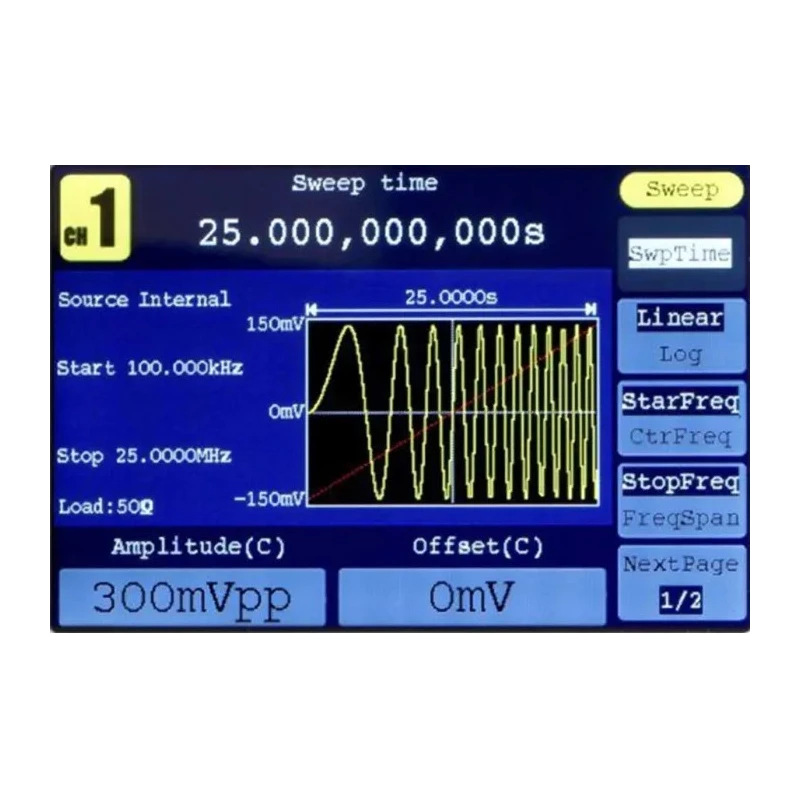

User interaction is enhanced by a clear 3.95 inch TFT colour LCD screen combined with shortcut buttons and a rotary knob for quick adjustments. The compact form factor facilitates space savings on testing benches and stacking with other equipment.

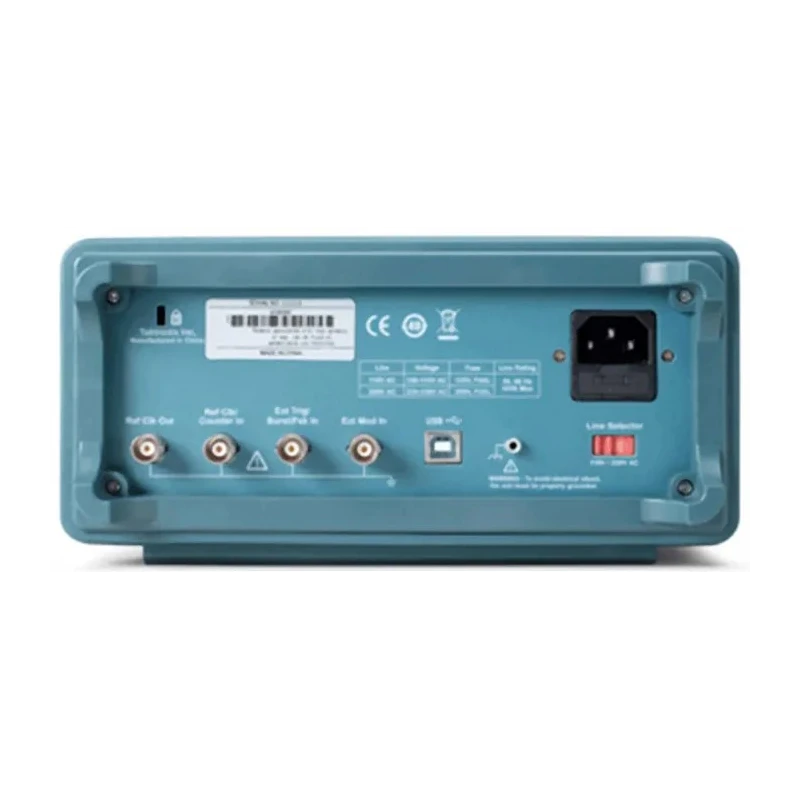

Additional features include a built-in 200 MHz frequency counter with 6-digit resolution and 64-MByte non-volatile memory for waveform storage. The instrument supports USB host/device interfaces for easy memory expansion and remote control.
The Tektronix AFG1062 is an ideal choice for automotive testing, power measurements, manufacturing testing, semiconductor testing, and educational laboratories. It comes with a 5-year warranty and complimentary ArbExpress software for creating and editing custom waveforms effortlessly.
High fidelity signal generation with 300 MS/s sampling rate and 14-bit vertical resolution. Output amplitude range from 1 mVp-p to 10 Vp-p over the full frequency range. Supports continuous, modulation, sweep, and burst modes for versatile testing.
Compact dual-channel design saves bench space. Includes built-in 200 MHz frequency counter with 6-digit resolution. Equipped with 64-MByte internal non-volatile memory for waveform storage. Standard USB host/device interface for memory expansion and remote control.
Intuitive TFT colour display with shortcut buttons and rotary knob. Free ArbExpress software included for waveform editing. Applications in automotive, power measurement, embedded design, and education. Explore more in Function Generators at EnvMart for advanced testing and measurement solutions.
Explore more products in our Test & Measurement Instruments category.
