Teledyne LeCroy USB Protocol Analyser USB-TMPD-M02-X USB Type-C and Power Delivery 3.0 Support

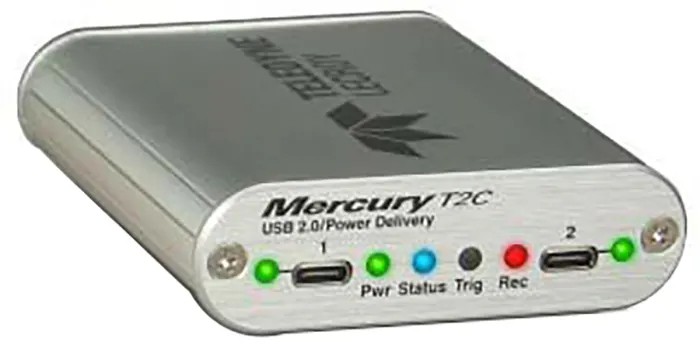

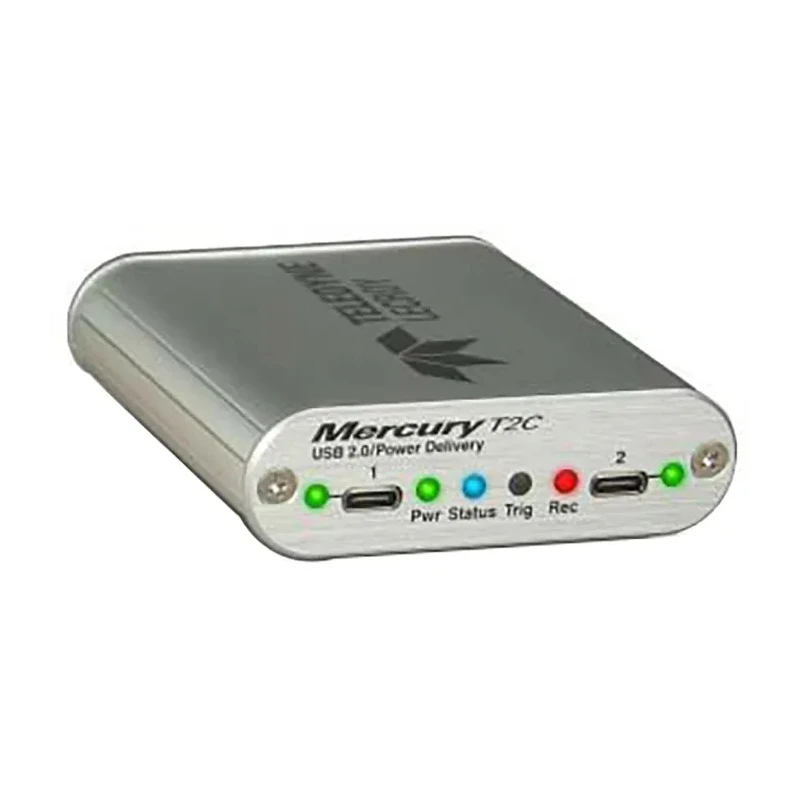

Teledyne LeCroy USB-TMPD-M02-X Protocol Analyser is a state-of-the-art USB 2.0 protocol analyser enhanced with USB Type-C and Power Delivery 3.0 capabilities, specifically designed for advanced USB debugging and protocol analysis. This compact and portable device features the industry-recognized CATC Trace™ display software, allowing detailed graphical decoding and expert analysis of USB and Power Delivery traffic. It supports all USB 2.0 speeds - Low Speed, Full Speed, and High Speed - over Type-A, Type-B, and Type-C connectors, making it highly versatile for a variety of USB device testing scenarios.

The device includes sophisticated real-time triggering options that enable engineers to isolate key protocol events, specific errors, or data patterns with ease. With up to 256 MB of onboard memory and support for spool-to-disk recording, users can capture and analyze extensive USB traffic data. The high impedance probe is designed to be non-intrusive, preserving real-world signal timing and integrity during testing.

USB Power Delivery 3.0 support includes capture and decoding of all Power Delivery packets, covering communications over the CC wire such as VDMs, role swaps, and alternate mode transitions. Real-time bus utilization and traffic summary views help in evaluating USB device and host interactions efficiently. This analyser is ideal for industrial, laboratory, manufacturing, and development environments where precise USB protocol comprehension and troubleshooting are essential.

Supports USB Power Delivery 2.0 and 3.0 protocol capture and analysis. 256 MB recording memory with spool-to-disk functionality extends data capture duration. CATC Trace™ graphical interface facilitates intuitive protocol understanding.

Advanced triggering capabilities isolate event-specific USB traffic. Compact, lightweight hardware design suitable for portable use. High impedance non-intrusive probe maintains signal fidelity. Compatible with multiple USB connector types and speeds.

Bus utilization and traffic summary provide detailed traffic metrics.

This product is made in the United States and represents an advanced solution for USB protocol testing in industrial and commercial settings. Explore the full range of measuring and testing instruments available at EnvMart for comprehensive test and measurement requirements.
