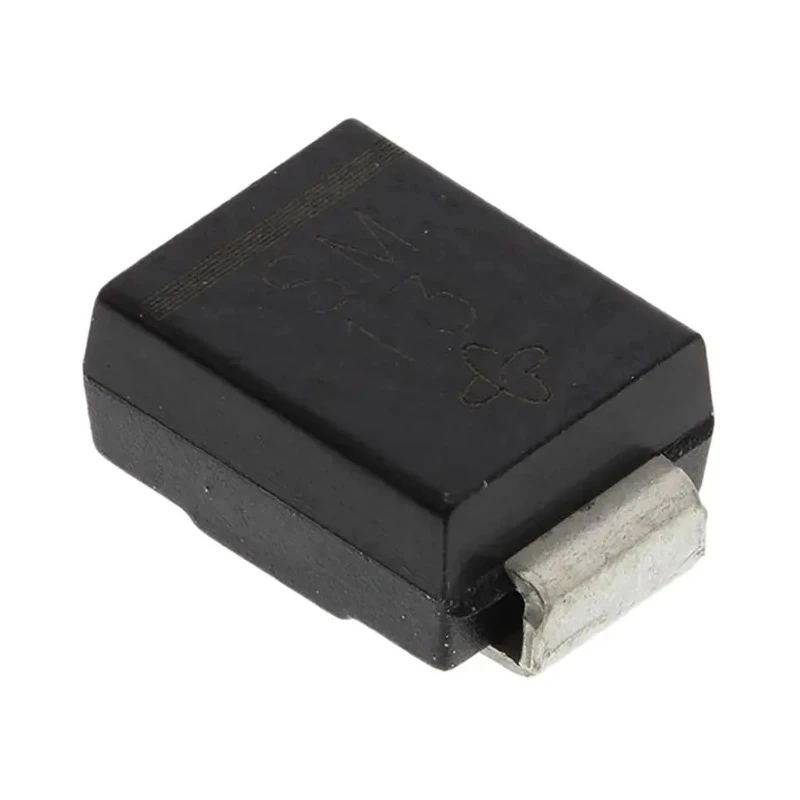

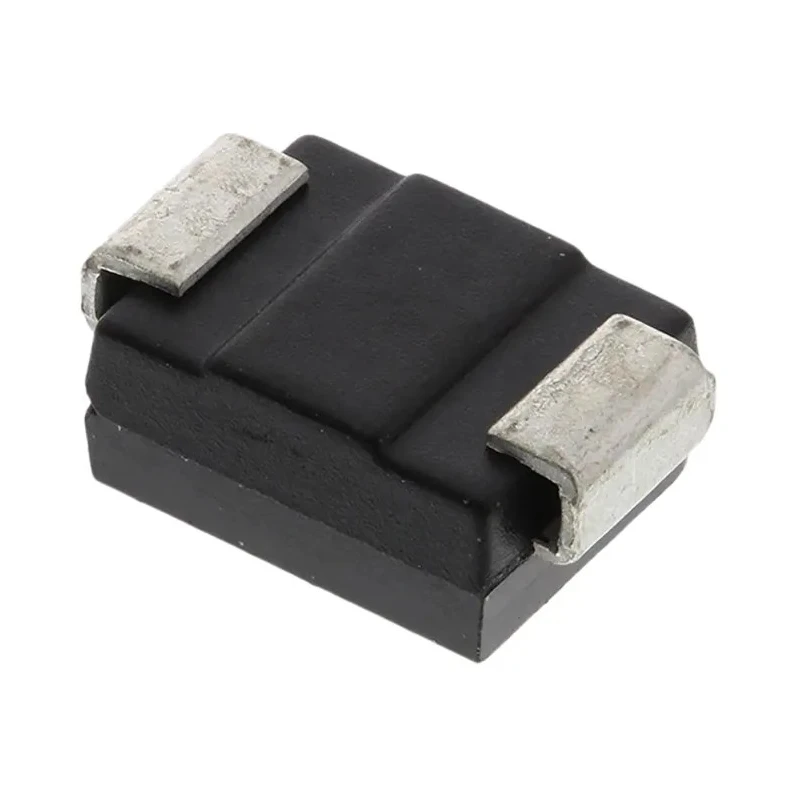

Vishay 1000 V 1.5 A General Purpose Standard Recovery Diode 2-Pin DO-214AA S2M-E3/52T
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 13in |
| Brand | Vishay |
| Height | 2.24mm |
| Length | 4.57mm |
| Model | S2M-E3/52T |
| Width | 3.94mm |
| Mount Type | Surface |
| Series | S2 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | JESD 201 Class 1A, JESD 201 Class 2, JESD 22-B102, J-STD-002, RoHS, UL 94 V-0 |
| Pay online using | Or choose to pay later via bank transfer |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1.5A |
| Peak Reverse Repetitive Voltage Vrrm | 1000V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 1μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.15V |
| Peak Reverse Recovery Time trr | 2μs |
| Vishay 1000 V 1.5 A Diode General Purpose 2-Pin DO-214AA S2M-E3/52TRS Stock No. | 629-1577Brand: VishayManufacturers Part No.: S2M-E3/52TDistrelec Article No.: 304-43-188 |
Key Features
- Maximum continuous forward current rating is 1.5 amperes.
- Peak reverse repetitive voltage of 1000 volts ensures high voltage tolerance.
- Compact DO-214AA surface-mount package enhances PCB space efficiency.
- Peak non-repetitive forward surge current capability up to 50 amperes.
- Wide operating temperature range from -55°C to 150°C.
- Low forward voltage drop of 1.15 volts contributes to high efficiency.
- Fast peak reverse recovery time of 2 microseconds improves switching performance.
- Complies with automotive standard AEC-Q101 for reliability in automotive use cases.
Product Description
Vishay S2M-E3/52T is a general purpose standard recovery diode designed for medium power rectification in industrial, automotive, and electronic equipment applications. Packaged in the industry-standard surface mount DO-214AA (SMB) footprint, this diode supports a continuous forward current of 1.5 amperes and a peak repetitive reverse voltage rating of 1000 volts, making it suitable for high voltage environments.
The diode offers a low forward voltage drop of 1.15 volts, improving efficiency and reducing power loss during conduction. Its fast recovery time of 2 microseconds ensures suitability for switching operations. With a peak non-repetitive forward surge current rating of 50 amperes, this diode can tolerate high inrush currents typical in power supply and inverter circuits.
Designed to operate reliably across a wide temperature range (-55°C to +150°C), the Vishay S2M-E3/52T meets strict automotive AEC-Q101 qualification and complies with multiple international standards including JESD 201 Class 1A and 2, RoHS, and UL 94 V-0 flame retardant rating. The two-pin configuration and compact dimensions (length 4.57 mm, width 3.94 mm, height 2.24 mm) facilitate integration into densely packed circuit boards.
Maximum continuous forward current: 1.5 A. Peak reverse repetitive voltage: 1000 V. Low forward voltage drop: 1.15 V. Peak reverse current: 1 µA. Fast recovery time: 2 µs. Operating temperature range: -55°C to 150°C. Certified to automotive and industry standards.
Surface mount DO-214AA (SMB) package.
This Diode is ideal for industrial power supplies, automotive electronics, renewable energy systems, and general-purpose rectification in medium power applications. It balances efficiency, reliability, and compactness for rigorous electrical environments.
Explore more Vishay semiconductors and discrete components on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating is 1.5 amperes.
It has a low forward voltage drop of 1.15 volts, which contributes to higher efficiency during conduction.
The diode can handle a peak non-repetitive forward surge current of up to 50 amperes.
The operating temperature range is from -55°C to 150°C, allowing for reliable performance in various environments.
The dimensions of the DO-214AA package are 4.57 mm in length, 3.94 mm in width, and 2.24 mm in height.
It complies with the automotive standard AEC-Q101, ensuring reliability for automotive applications.
This model uses a surface mount configuration, facilitating integration into compact circuit boards.
It meets several standards including JESD 201 Class 1A, JESD 201 Class 2, RoHS, and UL 94 V-0.
This diode is suitable for medium power rectification in industrial, automotive, and electronic equipment applications.
The diode is configured as a single diode, which is typical for general-purpose applications.
