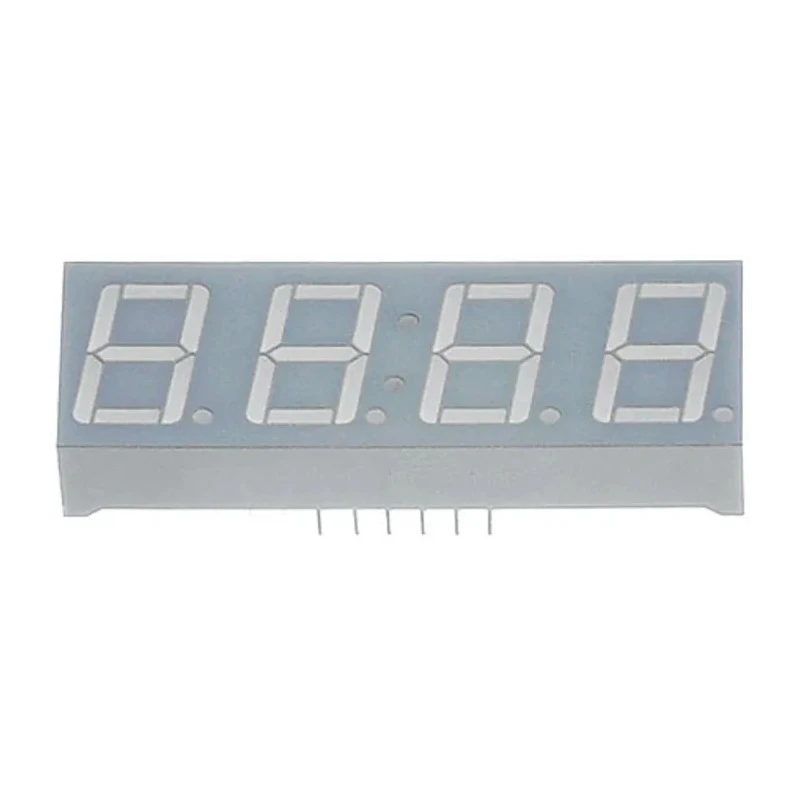

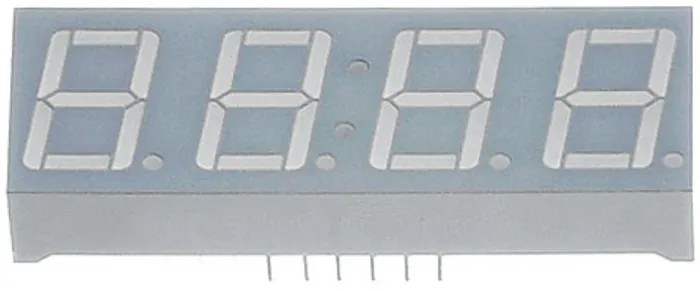

Kingbright 4 Character 7 Segment LED Display Anode Yellow 120mcd Right Side Decimal 14.2mm CA56-12SYKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | CA56-12SYKWA |
| Mount Type | Through Hole |
| Series | CA56 |
| Character height | 14.2mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 50.3mm |
| External Depth | 19mm |
| External Height | 8.1mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 120mcd |
| Standards/Approvals | RoHS |
| LED Colour | Yellow |
| Dominant Wavelength | 590nm |
| Colour of Face | Grey |
| Forward Voltage | 2.5V |
| Forward Current | 30mA |
| Number of Characters | 4 |
| Character Width | 8mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display has four digits and seven segments with a common anode connection.
- It provides excellent visibility with a grey face and white segments.
- Character height is 14.2mm and width is 8mm, suitable for clear digital readout.
- The display operates at a forward voltage of 2.5V and forward current of 30mA.
- It is mounted through hole and rated for -40°C to 85°C operating temperatures.
- Power dissipation is 75mW ensuring low power consumption.
- The decimal point is oriented on the right side for accurate formatting.
- This unit is RoHS compliant and mechanically rugged for industrial use.
Product Description
Kingbright CA56-12SYKWA is a 4 character 7 segment LED display designed for industrial and electronic applications requiring clear numeric visual output. It features yellow LEDs with a luminous intensity of 120mcd and a dominant wavelength of 590nm for high visibility in various lighting conditions.
The display's grey face with white segments provides excellent contrast and legibility. The through-hole mount type ensures robust and reliable board installation, suitable for both prototyping and production use. Character dimensions of 14.2mm height and 8mm width make it ideal for displays requiring medium-sized digit readouts.
Operating temperature range from -40°C to 85°C allows this display to function reliably in harsh environments. With a forward voltage of 2.5V and forward current of 30mA, it maintains low power dissipation of 75mW, contributing to energy-efficient designs.
The decimal point's right side orientation and the common anode connection type simplify circuit integration and formatting requirements. The display is part of the CA56 series and meets RoHS directives, ensuring adherence to environmental standards.
This LED display module finds applications in industrial control panels, instrumentation, measurement devices, digital clocks, and other commercial electronic signage requiring numeric indication. Its mechanical ruggedness and luminous performance make it suitable for manufacturing, laboratory, HVAC, and automation system displays.
The display provides four distinct numeric characters with seven segments each plus decimal points. Its standard 14.2mm character height balances visibility with compact design. It is designed for PCB mounting through hole soldering.
The luminous intensity categorizes it as suitable for indoor and moderate ambient light applications. Compliance with RoHS ensures lead-free manufacturing suitability. Its rugged construction supports industrial and laboratory applications.
Explore other Kingbright LED Displays and modules for comprehensive electronic component sourcing at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The character height of this model is 14.2mm, making it suitable for clear digital readouts.
This unit can operate at a maximum temperature of 85°C, allowing it to function in various environments.
The luminous intensity of this display is 120mcd, providing good visibility in various lighting conditions.
It features a through-hole mount type, ensuring robust and reliable installation on printed circuit boards.
The forward voltage for this model is 2.5V, which is essential for its operation.
The power dissipation of this display is rated at 75mW, contributing to its energy efficiency.
This model can display four distinct numeric characters, each composed of seven segments.
The decimal point is oriented on the right side, which simplifies formatting requirements.
The external width of this unit is 50.3mm, which is relevant for installation space considerations.
Yes, this unit is RoHS compliant, ensuring it meets environmental standards for lead-free manufacturing.
The minimum operating temperature for this model is -40°C, allowing it to function in harsh conditions.
The dominant wavelength of the yellow LEDs is 590nm, which contributes to its visibility.
